Impey Drop Down Hinged Support Rail - White

Impey Drop Down Hinged Support Rails are wall-mounted hinged rails that give a firm handhold beside a WC or inside a shower area, then lift and fold up against the wall when not needed. They suit bathrooms where a fixed rail would get in the way, and are a common choice beside a toilet for sideways transfers. Supplied as the looped Trombone-style hinged support rail.

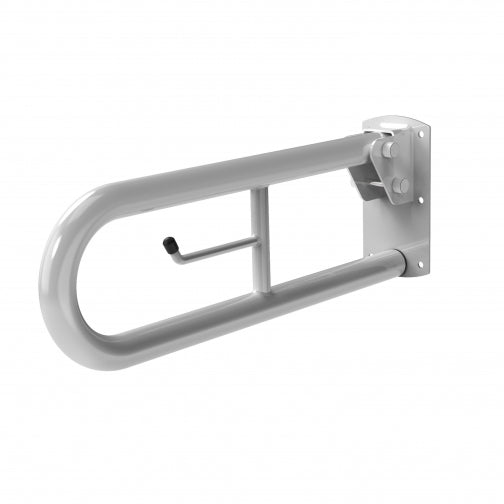

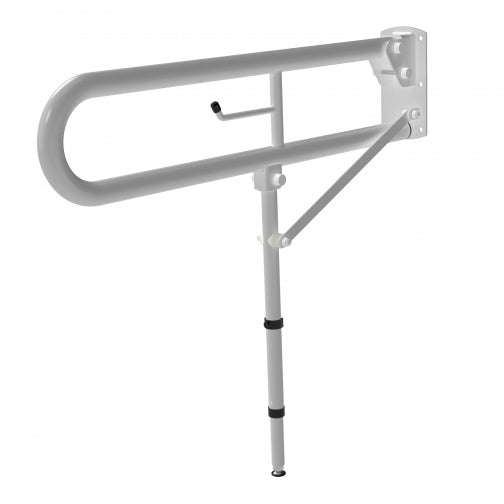

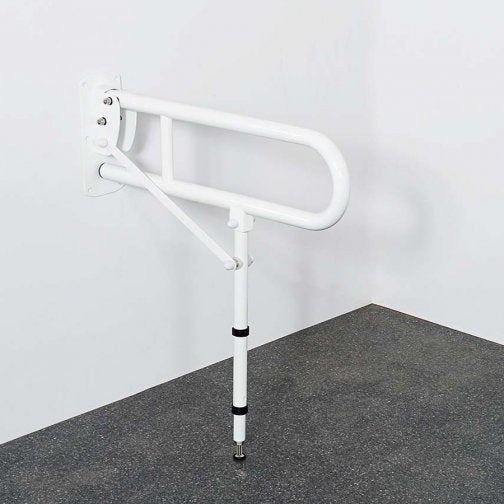

There are two types in the range. The WC rails (DR1, DR5, DR7, DR8) are for the dry side of the bathroom, beside a toilet, and all have an integral toilet roll holder. DR1 and DR7 are wall-fixed only; DR5 and DR8 add an adjustable drop-down support leg that carries part of the load to the floor. The shower-rated rails (DR11 and DR12) are stainless steel rails with a support leg, made to be fitted inside the shower area. They do not have a toilet roll holder. If the rail is going next to a toilet, a WC rail is the right choice.

• Looped Trombone-style hinged rail that lifts and folds up when not in use
• WC rails with integral toilet roll holder, with or without a support leg
• Shower-rated stainless steel rails with support leg for use inside the shower area
• Weight limits: 115kg (DR1, DR7), 200kg (DR5, DR8), 175kg (DR11, DR12)
• Robust powder-coated finish, white
• A floor mounted post (DR3) is available separately

Product Details

Dimensions A–E as shown on the Impey 2026 product brochure drawing. Guarantee: contact us to confirm.

Complete the Range

Need the rail supported on a post rather than a folding leg? Add the Impey Floor Mounted Post (DR3). Browse the full Impey range.
