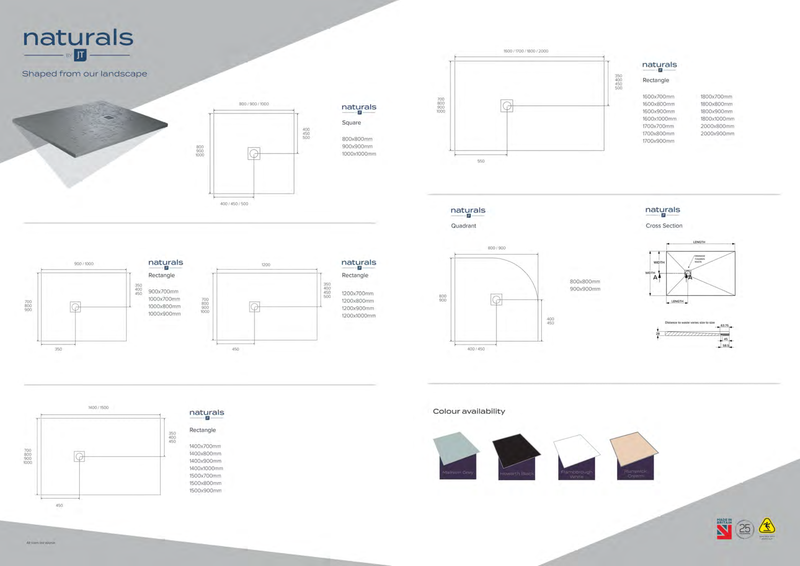

Kartell K-VIT Naturals stone effect black shower tray technical drawing - waste positions and dimensions for all sizes
Kartell K-VIT Naturals stone effect black rectangular shower tray
Kartell K-VIT Naturals shower tray - polished chrome waste cover (included as standard)
Kartell K-VIT Naturals shower tray - matt black waste cover (optional upgrade)
Kartell K-VIT Naturals shower tray - brushed brass waste cover (optional upgrade)
Kartell K-VIT Naturals stone effect black shower tray technical drawing - waste positions and dimensions for all sizes

Kartell K-VIT Naturals Stone Effect Black Shower Tray – All Sizes

by Kartell
Save 50% Save 50%
£483.00
£483.00 - £709.00
£483.00
£241.50
£241.50 - £354.50
£241.50

Kartell stock items ordered before 3pm are dispatched the same working day for next working day delivery. Stock availability is confirmed at the point of order.

Kartell K-VIT Naturals Stone Effect Black Shower Trays

The Kartell K-VIT Naturals stone effect shower tray in black brings a natural, textured slate-style finish to the shower floor, combining a refined matt surface with a slimline low-profile design. Available in 12 rectangular sizes from 1200 x 700mm up to 1700 x 900mm, each tray is supplied with a colour-matched waste and the option to upgrade the waste cover.

Moulded from durable stone-resin composite with a robust, easy-to-clean surface, every tray is designed for a sleek, contemporary wet-room look and is backed by a manufacturer's guarantee. Choose your size, select your preferred waste cover finish, and add an optional fast-flow waste if required.

Key Features

  • Natural stone effect finish in black — textured, matt slate-style surface
  • 12 rectangular sizes — 1200 x 700mm to 1700 x 900mm
  • Slimline low-profile design for a modern, low-level appearance
  • Colour-matched waste cover included as standard, with optional upgrades
  • Waste cover options: Polished Chrome (standard), Black or Brushed Brass (optional upgrade)
  • Optional fast-flow waste trap for improved drainage
  • Durable stone-resin composite — hard-wearing and easy to clean

Product Details

  • Range: Kartell K-VIT Naturals Stone Effect
  • Shape: Rectangle
  • Colour: Black (stone effect)
  • Surface: Textured matt stone finish
  • Material: Stone-resin composite
  • Waste cover: Polished Chrome standard; Black or Brushed Brass optional
  • Waste trap: Optional fast-flow waste

Size & Configuration Options

Size Product Code Dimensions (W x D)
1200 x 700mm STOR1207BK 1200 x 700mm
1200 x 800mm STOR1208BK 1200 x 800mm
1200 x 900mm STOR1209BK 1200 x 900mm
1400 x 700mm STOR1407BK 1400 x 700mm
1400 x 800mm STOR1408BK 1400 x 800mm
1400 x 900mm STOR1409BK 1400 x 900mm
1600 x 700mm STOR1607BK 1600 x 700mm
1600 x 800mm STOR1608BK 1600 x 800mm
1600 x 900mm STOR1609BK 1600 x 900mm
1700 x 700mm STOR1707BK 1700 x 700mm
1700 x 800mm STOR1708BK 1700 x 800mm
1700 x 900mm STOR1709BK 1700 x 900mm

Select your waste cover finish and optional fast-flow waste using the options above.

Complete Your Shower

Explore the full Kartell K-VIT rectangle shower tray range, browse our low level shower trays, or view the complete Kartell K-VIT bathroom range. Also available in Graphite and White stone effect finishes.

Technical Downloads

Waste Position

The waste is set towards one end of the tray, not in the centre. Measured from the short edge to the centre of the waste: 1200mm trays 450mm; 1400mm trays 450mm; 1600mm and 1700mm trays 550mm. Across the width the waste is centred (350mm from the long edge on 700mm trays, 400mm on 800mm trays, 450mm on 900mm trays). The full technical drawing is shown in the product images above and in the datasheet.

Full Range — Product Codes & Barcodes

Title SKU Description GTIN (EAN)
1200 x 700mm Naturals Stone Effect Black Shower Tray STOR1207BK Kartell K-VIT 1200 x 700mm Naturals stone effect rectangular shower tray, black 5055681430481
1200 x 800mm Naturals Stone Effect Black Shower Tray STOR1208BK Kartell K-VIT 1200 x 800mm Naturals stone effect rectangular shower tray, black 5055681430474
1200 x 900mm Naturals Stone Effect Black Shower Tray STOR1209BK Kartell K-VIT 1200 x 900mm Naturals stone effect rectangular shower tray, black 5055681430467
1400 x 700mm Naturals Stone Effect Black Shower Tray STOR1407BK Kartell K-VIT 1400 x 700mm Naturals stone effect rectangular shower tray, black 5055681430450
1400 x 800mm Naturals Stone Effect Black Shower Tray STOR1408BK Kartell K-VIT 1400 x 800mm Naturals stone effect rectangular shower tray, black 5055681430443
1400 x 900mm Naturals Stone Effect Black Shower Tray STOR1409BK Kartell K-VIT 1400 x 900mm Naturals stone effect rectangular shower tray, black 5055681430436
1600 x 700mm Naturals Stone Effect Black Shower Tray STOR1607BK Kartell K-VIT 1600 x 700mm Naturals stone effect rectangular shower tray, black 5055681430429
1600 x 800mm Naturals Stone Effect Black Shower Tray STOR1608BK Kartell K-VIT 1600 x 800mm Naturals stone effect rectangular shower tray, black 5055681430412
1600 x 900mm Naturals Stone Effect Black Shower Tray STOR1609BK Kartell K-VIT 1600 x 900mm Naturals stone effect rectangular shower tray, black 5055681431211
1700 x 700mm Naturals Stone Effect Black Shower Tray STOR1707BK Kartell K-VIT 1700 x 700mm Naturals stone effect rectangular shower tray, black 5055681430405
1700 x 800mm Naturals Stone Effect Black Shower Tray STOR1708BK Kartell K-VIT 1700 x 800mm Naturals stone effect rectangular shower tray, black 5055681430399
1700 x 900mm Naturals Stone Effect Black Shower Tray STOR1709BK Kartell K-VIT 1700 x 900mm Naturals stone effect rectangular shower tray, black 5055681430375
