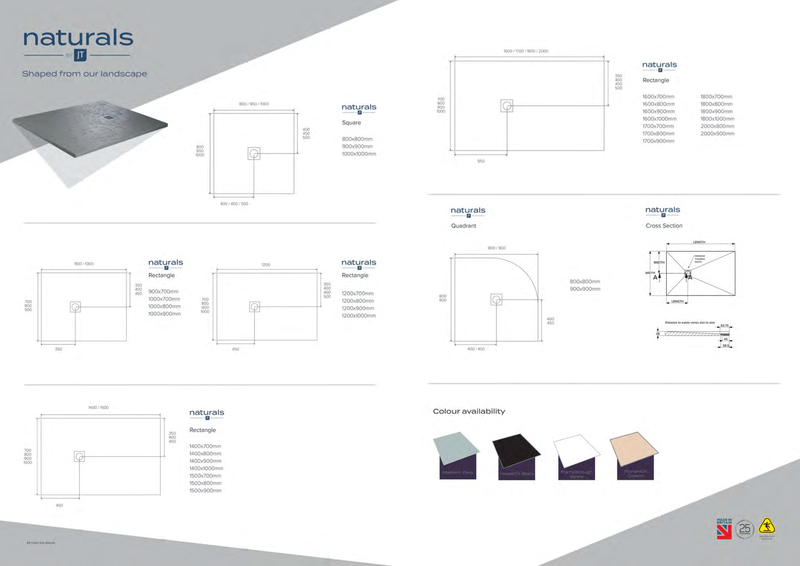

Kartell K-VIT Naturals stone effect white shower tray technical drawing - waste positions and dimensions for all sizes
Kartell K-VIT Naturals stone effect white rectangular shower tray
Kartell K-VIT Naturals shower tray - polished chrome waste cover (included as standard)
Kartell K-VIT Naturals shower tray - gloss white waste cover (optional upgrade)
Kartell K-VIT Naturals shower tray - brushed brass waste cover (optional upgrade)
Kartell K-VIT Naturals stone effect white shower tray technical drawing - waste positions and dimensions for all sizes

Kartell K-VIT Naturals Stone Effect White Shower Tray – All Sizes

by Kartell
Save 50% Save 50%
£483.00
£483.00 - £687.00
£483.00
£241.50
£241.50 - £343.50
£241.50

Kartell stock items ordered before 3pm are dispatched the same working day for next working day delivery. Stock availability is confirmed at the point of order.

Kartell K-VIT Naturals Stone Effect White Shower Trays

The Kartell K-VIT Naturals stone effect shower tray in white brings a natural, textured slate-style finish to the shower floor, combining a refined matt surface with a slimline low-profile design. Available in 12 rectangular sizes from 1200 x 700mm up to 1700 x 900mm, each tray is supplied with a colour-matched waste and the option to upgrade the waste cover.

Moulded from durable stone-resin composite with a robust, easy-to-clean surface, every tray is designed for a sleek, contemporary wet-room look and is backed by a manufacturer's guarantee. Choose your size, select your preferred waste cover finish, and add an optional fast-flow waste if required.

Key Features

  • Natural stone effect finish in white — textured, matt slate-style surface
  • 12 rectangular sizes — 1200 x 700mm to 1700 x 900mm
  • Slimline low-profile design for a modern, low-level appearance
  • Colour-matched waste cover included as standard, with optional upgrades
  • Waste cover options: Polished Chrome (standard), White or Brushed Brass (optional upgrade)
  • Optional fast-flow waste trap for improved drainage
  • Durable stone-resin composite — hard-wearing and easy to clean

Product Details

  • Range: Kartell K-VIT Naturals Stone Effect
  • Shape: Rectangle
  • Colour: White (stone effect)
  • Surface: Textured matt stone finish
  • Material: Stone-resin composite
  • Waste cover: Polished Chrome standard; White or Brushed Brass optional
  • Waste trap: Optional fast-flow waste

Size & Configuration Options

Size Product Code Dimensions (W x D)
1200 x 700mm STOR1207WT 1200 x 700mm
1200 x 800mm STOR1208WT 1200 x 800mm
1200 x 900mm STOR1209WT 1200 x 900mm
1400 x 700mm STOR1407WT 1400 x 700mm
1400 x 800mm STOR1408WT 1400 x 800mm
1400 x 900mm STOR1409WT 1400 x 900mm
1600 x 700mm STOR1607WT 1600 x 700mm
1600 x 800mm STOR1608WT 1600 x 800mm
1600 x 900mm STOR1609WT 1600 x 900mm
1700 x 700mm STOR1707WT 1700 x 700mm
1700 x 800mm STOR1708WT 1700 x 800mm
1700 x 900mm STOR1709WT 1700 x 900mm

Select your waste cover finish and optional fast-flow waste using the options above.

Complete Your Shower

Explore the full Kartell K-VIT rectangle shower tray range, browse our low level shower trays, or view the complete Kartell K-VIT bathroom range. Also available in Graphite and Black stone effect finishes.

Technical Downloads

Waste Position

The waste is set towards one end of the tray, not in the centre. Measured from the short edge to the centre of the waste: 1200mm trays 450mm; 1400mm trays 450mm; 1600mm and 1700mm trays 550mm. Across the width the waste is centred (350mm from the long edge on 700mm trays, 400mm on 800mm trays, 450mm on 900mm trays). The full technical drawing is shown in the product images above and in the datasheet.

Full Range — Product Codes & Barcodes

Title SKU Description GTIN (EAN)
1200 x 700mm Naturals Stone Effect White Shower Tray STOR1207WT Kartell K-VIT 1200 x 700mm Naturals stone effect rectangular shower tray, white 5055681429478
1200 x 800mm Naturals Stone Effect White Shower Tray STOR1208WT Kartell K-VIT 1200 x 800mm Naturals stone effect rectangular shower tray, white 5055681429485
1200 x 900mm Naturals Stone Effect White Shower Tray STOR1209WT Kartell K-VIT 1200 x 900mm Naturals stone effect rectangular shower tray, white 5055681429492
1400 x 700mm Naturals Stone Effect White Shower Tray STOR1407WT Kartell K-VIT 1400 x 700mm Naturals stone effect rectangular shower tray, white 5055681429508
1400 x 800mm Naturals Stone Effect White Shower Tray STOR1408WT Kartell K-VIT 1400 x 800mm Naturals stone effect rectangular shower tray, white 5055681429515
1400 x 900mm Naturals Stone Effect White Shower Tray STOR1409WT Kartell K-VIT 1400 x 900mm Naturals stone effect rectangular shower tray, white 5055681429522
1600 x 700mm Naturals Stone Effect White Shower Tray STOR1607WT Kartell K-VIT 1600 x 700mm Naturals stone effect rectangular shower tray, white 5055681429546
1600 x 800mm Naturals Stone Effect White Shower Tray STOR1608WT Kartell K-VIT 1600 x 800mm Naturals stone effect rectangular shower tray, white 5055681429553
1600 x 900mm Naturals Stone Effect White Shower Tray STOR1609WT Kartell K-VIT 1600 x 900mm Naturals stone effect rectangular shower tray, white 5055681429560
1700 x 700mm Naturals Stone Effect White Shower Tray STOR1707WT Kartell K-VIT 1700 x 700mm Naturals stone effect rectangular shower tray, white 5055681429577
1700 x 800mm Naturals Stone Effect White Shower Tray STOR1708WT Kartell K-VIT 1700 x 800mm Naturals stone effect rectangular shower tray, white 5055681429683
1700 x 900mm Naturals Stone Effect White Shower Tray STOR1709WT Kartell K-VIT 1700 x 900mm Naturals stone effect rectangular shower tray, white 5055681430351
