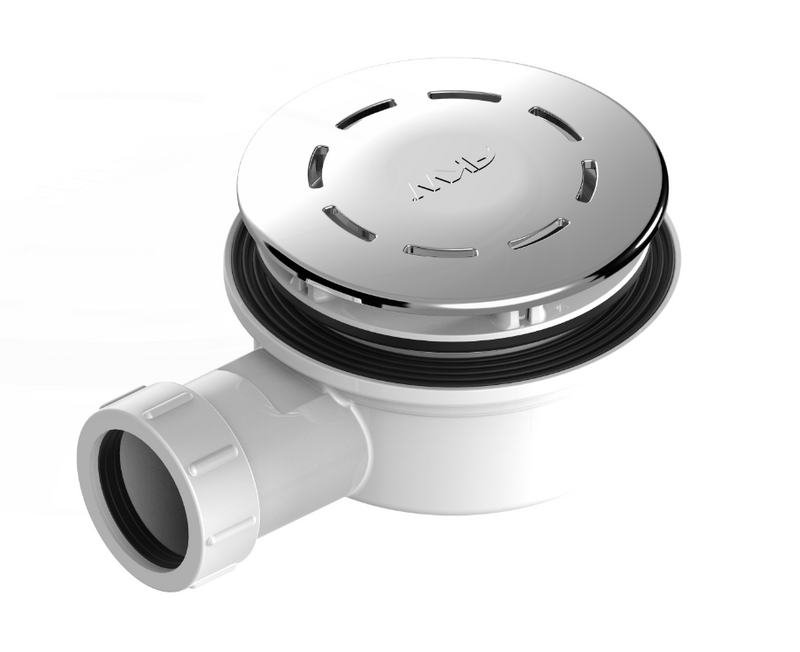

AKW DW90 Low Height Dry Waste with Domed Cover (25492-UK)

Product Code: 25492-UK

The AKW DW90 Low Height Dry Waste with Domed Cover (UK) is a compact, British Standards compliant waste solution suitable for a wide range of AKW shower and wet floor trays. Designed for solid floor or shallow joist installations, this universal waste features a non-return valve to prevent bad odour backflow.

Key Features:

• British Standards Compliant: Meets the performance requirements of British Standards, ensuring the product is fully compliant and safe for site requirements.
• Very Compact: Ideal for limited floor depths with a shallow 48mm depth, useful for solid floors or shallow joists.
• 90mm Diameter: Suitable for Ø 90mm waste trays, compatible with the Sulby 2, Low Profile and Mullen shower trays.
• High Flow Rate: Accommodates 27 l/min with a 15mm head and 1m of pipe.
• Good Seals and Location: Ensures easy installation and a watertight fitting.
• Non Return Valve: Prevents bad odour backflow, with a trap that will not dry out with sporadic use.

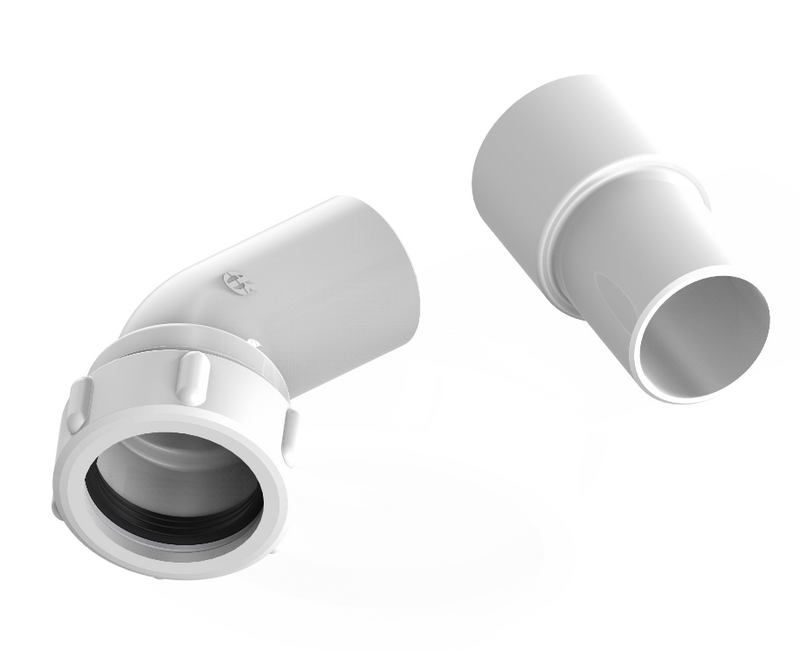

• Push Fit Compatible: Suitable for push fit pipe with included adaptor, allowing for easy installation.
• Solvent Weld Compatible: Suitable for solvent weld pipe with included adaptor, providing a choice of installation options.
• Top Access: Easy to open for cleaning purposes.
• Universal Compatibility: Compatible with a wide range of AKW shower and wet floor trays.

Product Contents:

• 1 x Dry Waste with Domed Cover

Product Specifications:

• 90mm Diameter, suitable for Ø 90mm waste trays
• Shallow 48mm depth, useful for solid floors or shallow joists
• Suitable for push fit pipe (with included adaptor)
• Suitable for solvent weld pipe (with included adaptor)
• High flow rate: 27 l/min with 15mm head and 1m of pipe
• Part Number: 25492-UK
