AKW Freelux Wet Room Kit (All Sizes)
AKW stock items ordered before 2pm are dispatched the same working day for next working day delivery. Stock availability is confirmed at the point of order.

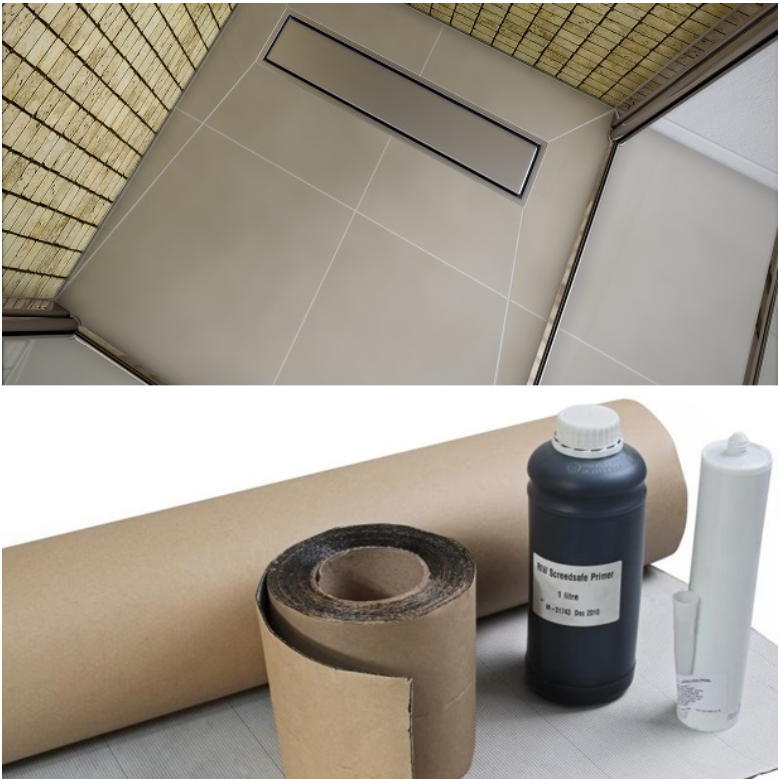

The AKW Freelux Wet Room Kit brings together everything needed to form a level-access wet floor shower in one order — the TriForm former, the gulley waste cover, a gravity waste and a full 5m² Formsafe tanking system. Buying it as a kit removes the guesswork of matching a waste and a tanking system to the former.

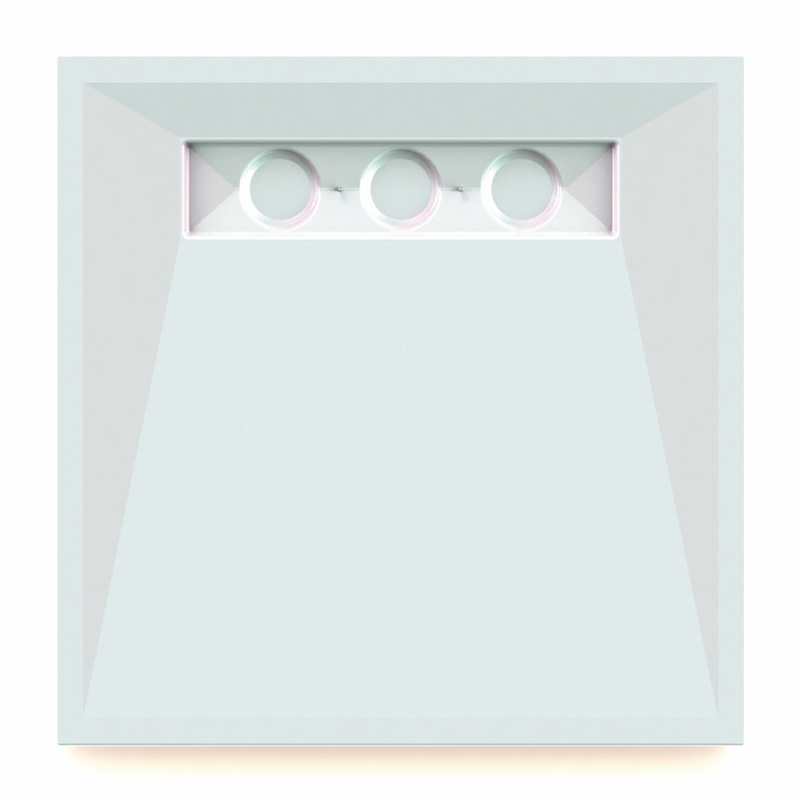

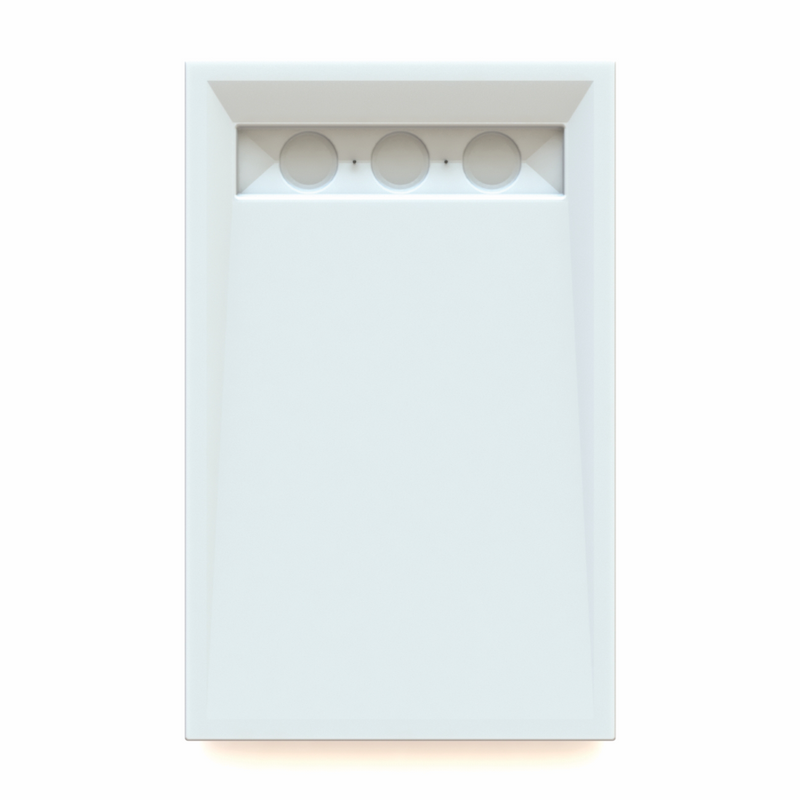

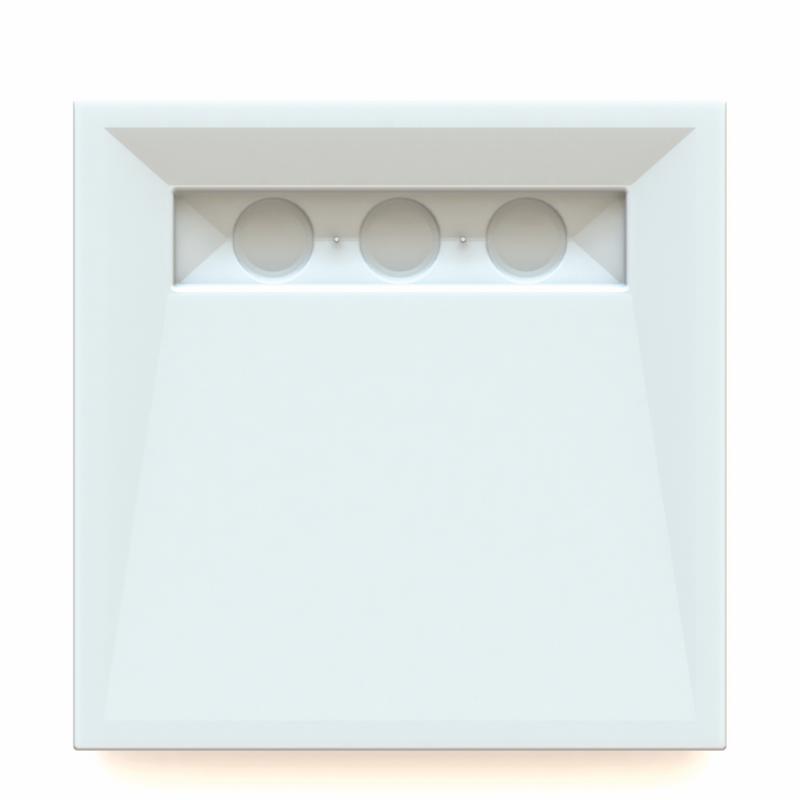

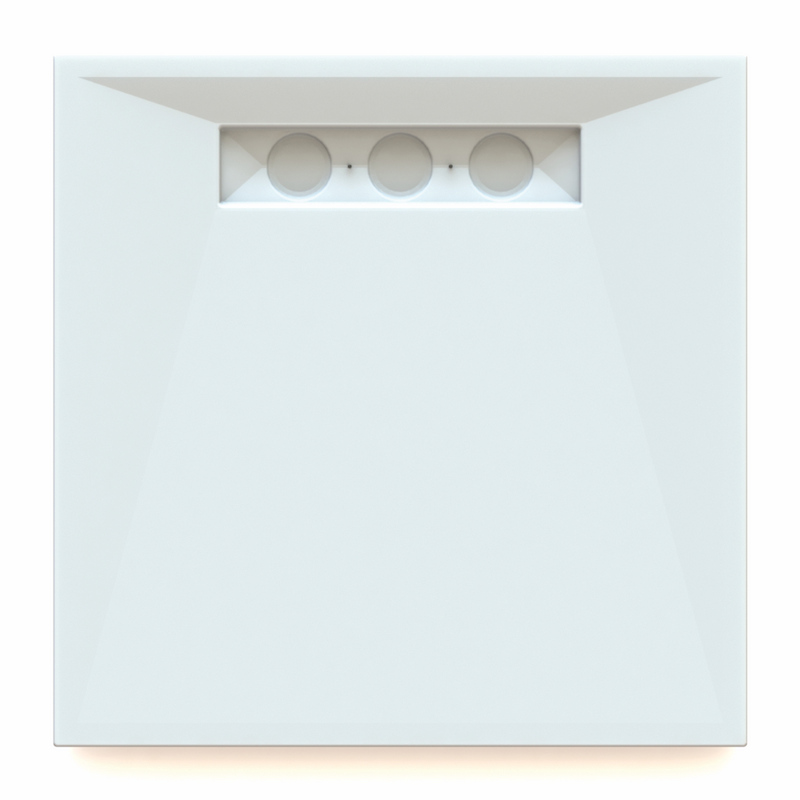

At its heart is AKW's TriForm former, a hand laid-up GRP tray 22mm thick, sized to sit on an 18mm UK timber floorboard plus 4mm plywood with no packing or adjustment. Four gradient planes feed an integral trough waste that handles up to 78 litres per minute, so it keeps up with a power shower, and the former carries up to 254kg.
What's in the kit
- 1 x TriForm former in your chosen size
- 1 x TriForm gulley waste cover, to suit your tile thickness
- 1 x 19mm standard gravity waste (GW19)
- 1 x Formsafe wet room tanking membrane, 5m²
- 1 x Formsafe wet room tanking accessories, 5m²
The Formsafe tanking is a pre-formed self-adhesive waterproof membrane — a 1mm rubberised layer with a fabric mesh backing. The 5m² kit contains a 5m x 1m roll, 500ml primer, 10m reinforcing tape and 290ml jointing compound, and is ready to tile immediately with no drying time.
Key Features
- Takes tiles up to 25mm thick
- Handles up to 78 litres per minute — suits power shower flow rates
- Up to 3 waste holes can be used, and the waste can be positioned to work around joists
- Integral trough with 3 waste positions waterproofs without needing silicone
- Waste hole infill supplied to fill the recesses not used, so water cannot collect
- Reversible waste cover — tile it to match the floor or flip it for brushed stainless steel
- Trimmable to within 100mm of the waste
- Pre-keyed surface, so no preparation is needed before tanking
- 22mm thick, so it fits within common floor depths and keeps the floor level
- Supports up to 254kg (40 stone)
- UKCA and CE marked
Product Details
| Brand | AKW |
|---|---|
| Former | AKW TriForm |
| Thickness | 22mm, to suit 18mm UK timber floorboard plus 4mm plywood |
| Material | GRP (glass reinforced plastic), hand lay-up |
| Strength | 254kg (40 stone) |
| Drainage | Up to 78 litres per minute |
| Fall to waste | Approximately 1:40 |
| Waste | 19mm standard gravity waste (GW19), 50mm threaded outlet with built-in strainer |
| Waste cover | Reversible tileable / stainless steel |
| Max tile thickness | 25mm |
| Tanking | Formsafe membrane and accessories, 5m² |
| Screen compatibility | Larenco, Level Best, Silverdale and Standard screens |
| Standard | BS EN 12182:1999 |
| Approvals | UKCA, CE |
Warranty
Lifetime warranty on the TriForm former. 5 year warranty on the gulley waste kit. Terms and conditions apply.
Which tile thickness do I need?
The kits are identical apart from the gulley waste cover. Choose the 6–16mm cover if you are tiling with standard ceramic or porcelain tiles, and the 16–25mm cover for thicker natural stone or large-format porcelain. Measure the tile itself, not the tile plus adhesive. If you are unsure, contact us before ordering.
Technical Downloads
- TriForm former specification sheet (PDF)
- GW19 gravity waste specification sheet (PDF)
- Wet floor former installation instructions (PDF)
Product Codes
| Size | Tile thickness | SKU |
|---|---|---|
| 900 x 900mm | 6–16mm | 21220 |
| 1000 x 1000mm | 6–16mm | 21221 |
| 1300 x 820mm | 6–16mm | 21222 |
| 1200 x 1200mm | 6–16mm | 21223 |
| 900 x 900mm | 16–25mm | 21224 |
| 1000 x 1000mm | 16–25mm | 21225 |
| 1300 x 820mm | 16–25mm | 21226 |
| 1200 x 1200mm | 16–25mm | 21227 |
AKW do not assign barcodes to these kits.
