AKW Low Depth GW90 Gravity Waste (25404)

AKW Low Depth GW90 Gravity Waste (25404)

The AKW Low Depth GW90 gravity waste is designed for ease of installation and flexibility of fitting. The 90mm diameter waste with a 50mm water trap suits Low Profile, Mullen, Keppel and Dalby trays where height restrictions are an issue, and vinyl wet room floor installations. Suitable for use with Tuff Form when fitted with the Tuff Form waste adaptor (25409).

Key Features:

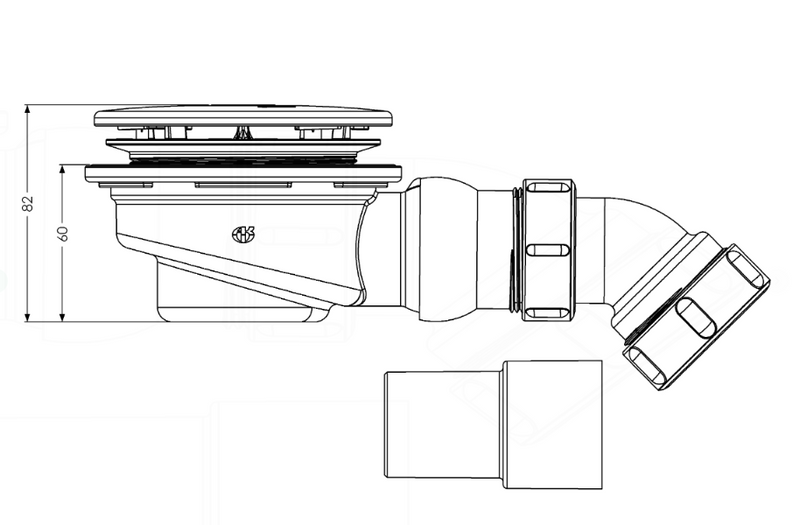

• Depth below tray just 60mm; overall depth 82mm

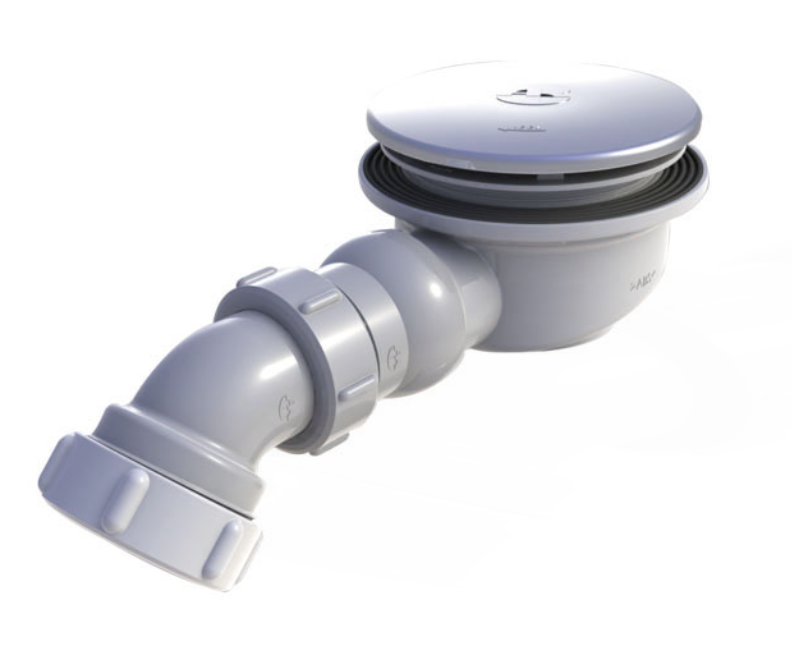

• Unique swivel outlet for quick and easy installation
• 50mm water trap depth; opens for easy cleaning
• Built-in filter; approximate flow rate 14 litres per minute
• Suitable for vinyl wet room floor installations

Available options:

• Low Depth GW90 Gravity Waste · 25404

Technical Downloads

AKW Low Depth GW90 Gravity Waste – Information Sheet (PDF)
