Contour P12 Shower Waste Pump With Push Fit Fittings (05PP01)

Contour P12 Shower Waste Pump With Push Fit Fittings (05PP01)

by Contour
Save 55% Save 55%
£1,012.29
£1,012.29 - £1,012.29
£1,012.29
£455.53
£455.53 - £455.53
£455.53

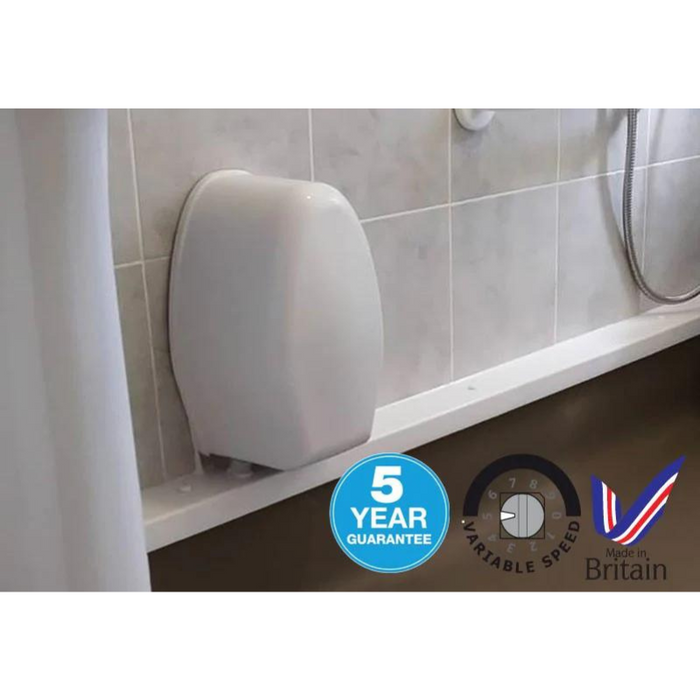

The Contour P12 Shower Waste Pump is the only quiet, unblockable, maintenance FREE and variable-speed shower waste pump for when gravity drainage is unavailable.

Features:

  • Operates nearly silently.
  • Utilizes a reliable peristaltic pump design.
  • Water passes through a sealed tube, minimizing the risk of blockages.
  • Variable speed transformer enables precise adjustment of pump speed to match shower flow rate.

Benefits:

  • Requires no maintenance and comes with a 5-year warranty.
  • Offers low running costs due to the energy-efficient 24v DC motor.
  • Includes a wallplate with a quick-release pump bracket.
  • Suitable for both electric and mixer showers (Mixer shower installations require an additional flow switch).
  • Comes with a 2-meter length of 22mm flexible pipe for improved performance.
  • Can be directly linked to compatible models like Redring Selectronic Premier WP, Mira Advance ATL Flex Extra, or Triton Omnicare, eliminating the need for a flow switch.
  • Designed for easy and swift installation, not handed.

Box Contents:

  • Contour P12 Shower Pump
  • 1 x Flowswitch
  • Fitting/User Instructions

P12 Shower Waste Pump Specifications:

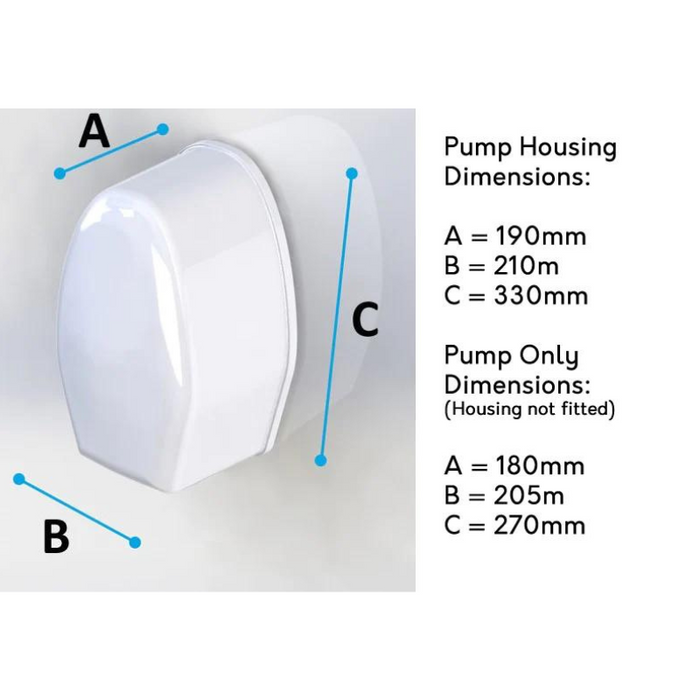

  • Pump housing dimensions: A: 190mm B: 210mm C: 330mm
  • Maximum flow rate: Up to 12 l/m
  • Variable speed: Yes
  • Retro-fit: Yes
  • Compatible with 22mm outlet* wastes
  • Individually factory water tested: Yes
  • Power rating: 24v DC
  • Inlet & outlet connection: 22mm

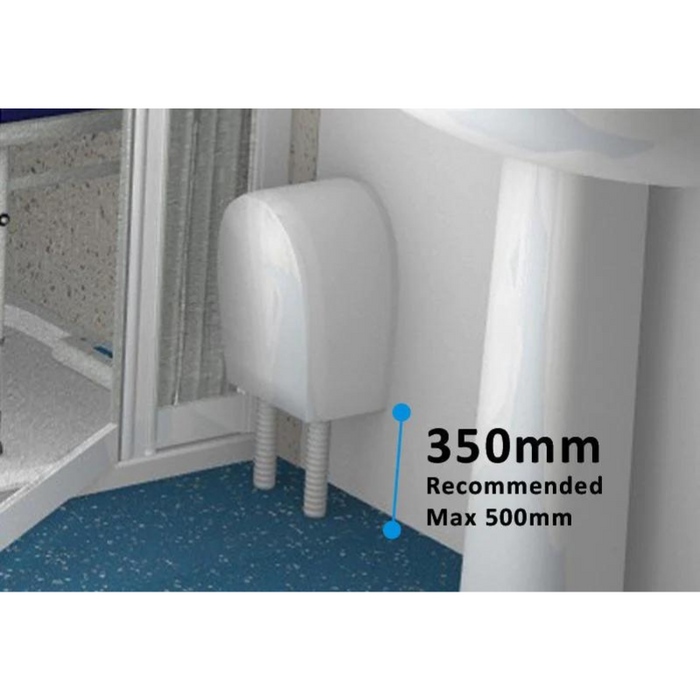

For optimal shower pump performance of 12 litres per minute, it's recommended that the shower pump be installed no higher than 350mm from the top of the shower waste outlet to the underside of the wall plate. Installing the shower pump up to a maximum height of 500mm to the underside of the wall plate is possible but may reduce the pump's overall performance.

Electrical Control Box:

  • Power consumption (intermittent rating): 36 Watts
  • Supply rating: 2.5 amp fast blow fuse
  • IP rating: IP65 suitable for bathrooms**
  • The pump's outlet must be 22mm
  • Never install directly within the showering area.

**Note: The electrical control box has an IP65 rating, which makes it suitable for bathrooms. However, the pump itself should never be installed directly in the showering area.
