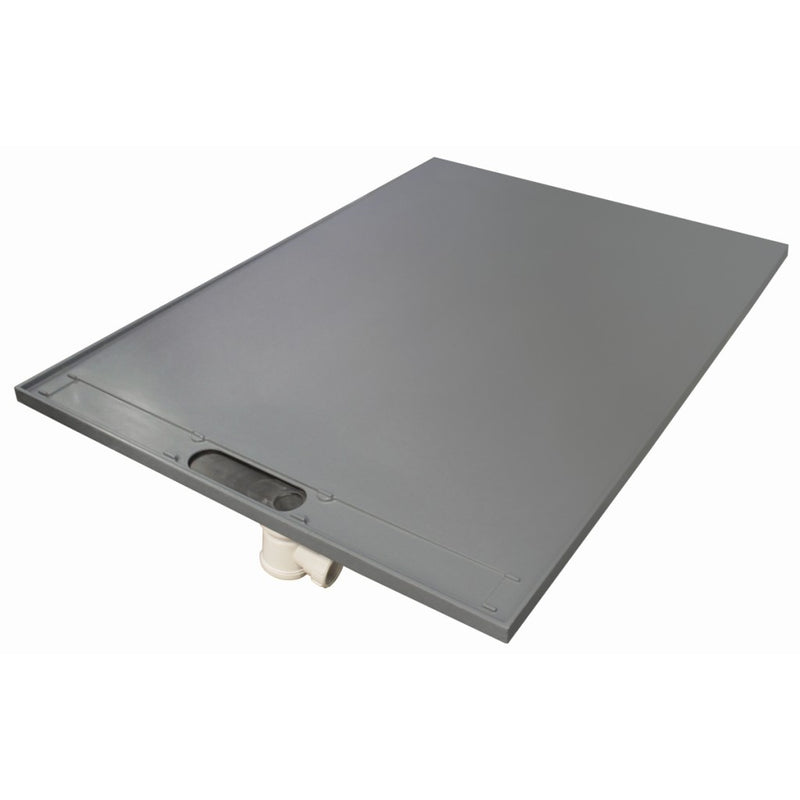

Essential Pro Deck Edge Wet Room Floor Former – Concealed Edge Drainage, For Tiled Floors

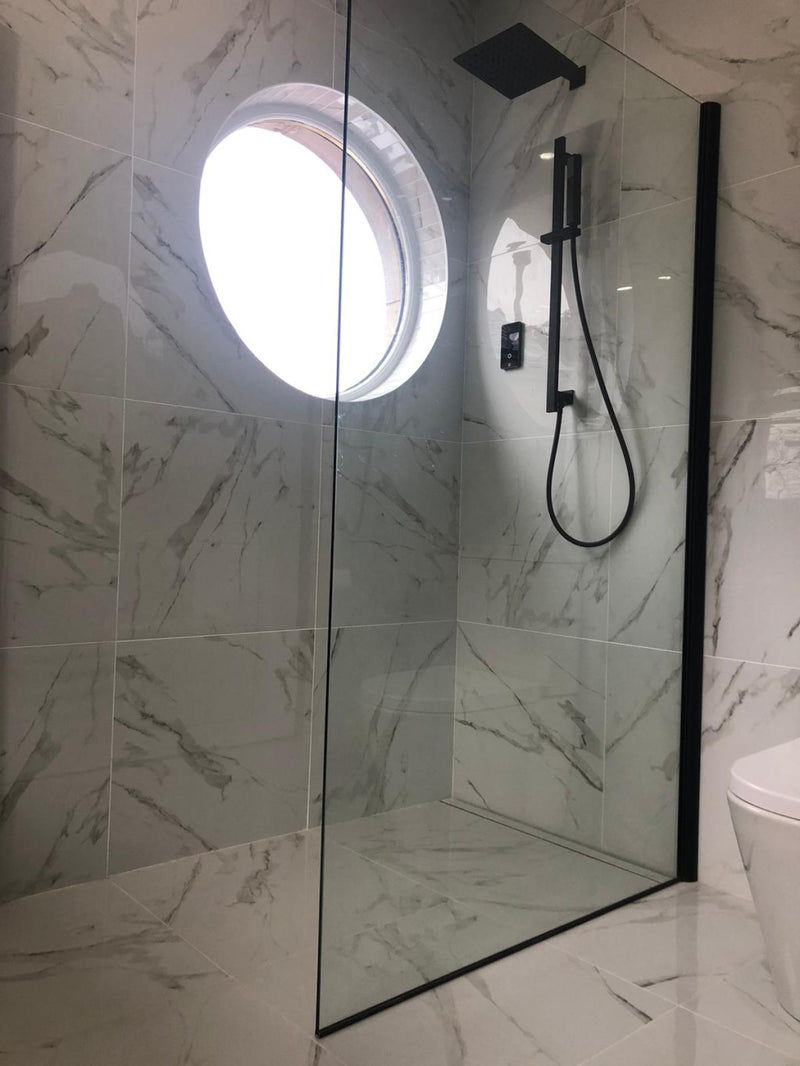

The Essential Pro Deck Edge is our flagship wet room floor former, delivering the seamless, minimalist look of concealed against-the-wall drainage. A unique factory-fitted waste can be moved along the drainage channel by the installer to avoid joists, while a one-way fall carries water invisibly to the edge of the shower area for a completely uninterrupted tiled floor.
Like the rest of the Pro Deck family it is precision manufactured using metal moulds, engineered to accept over 470kg point loading, self-supporting, and designed to be tiled directly onto — strength you can rely on in any level-access installation.
Key Features
- Concealed against-the-wall drainage for a seamless tiled finish
- Factory-fitted waste — adjustable along the channel to avoid joists
- One-way fall to the waste
- Accepts over 470kg point loading
- Tile directly onto the deck
- Self-supporting, precision manufactured using metal moulds
- Choice of short side or long side waste on 1200x900mm decks
- Level-access, step-free showering
- Lifetime manufacturer's warranty
Product Details
| Use | Tiled floors |
| Drainage | Concealed edge channel with adjustable factory-fitted waste |
| Thickness | 28mm |
| Point loading | Over 470kg |
| Fall | One-way fall to waste |
| Waste outlet included | Factory-fitted waste — add the Edge Trap System from the Trap dropdown above, or select “No trap needed” if you already have one |
| Warranty | Lifetime |
You Will Also Need
The Edge Trap System — available in the Trap dropdown above — plus a tileable insert grating and inclined shower profiles to suit your tile thickness (sold separately), wet room tanking, shower screen and shower. Contact us and we will confirm the full set of compatible components for your installation.

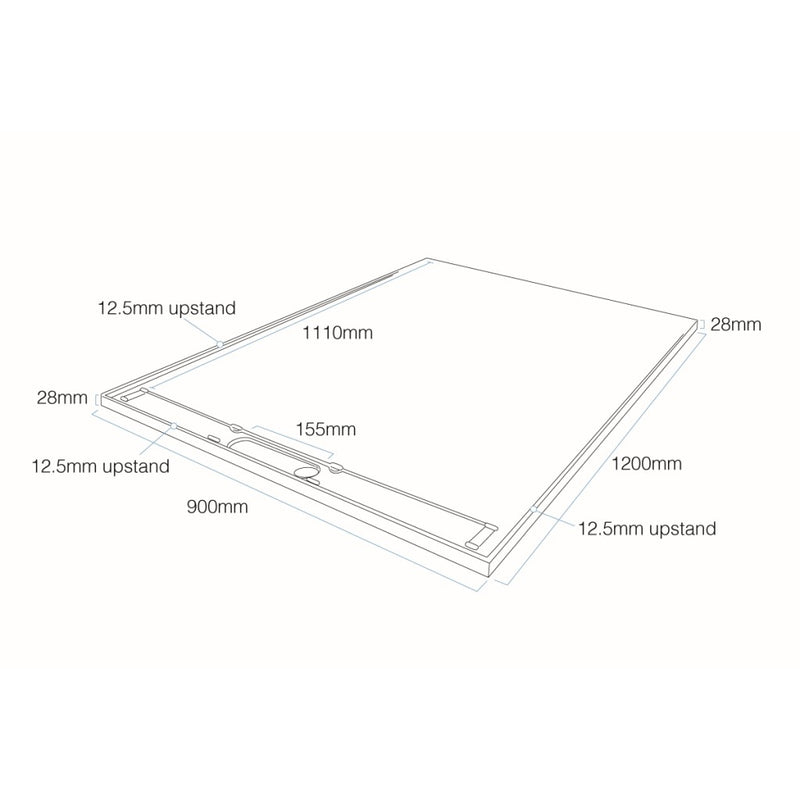

Full Range – Sizes & Product Codes
| Size | Waste Position | Product Code |
|---|---|---|
| 1200 x 900mm | Short side | P6822008 |
| 1200 x 900mm | Long side | P6822007 |
| 1200 x 1200mm | — | P6822006 |
Delivery is calculated separately at checkout.
