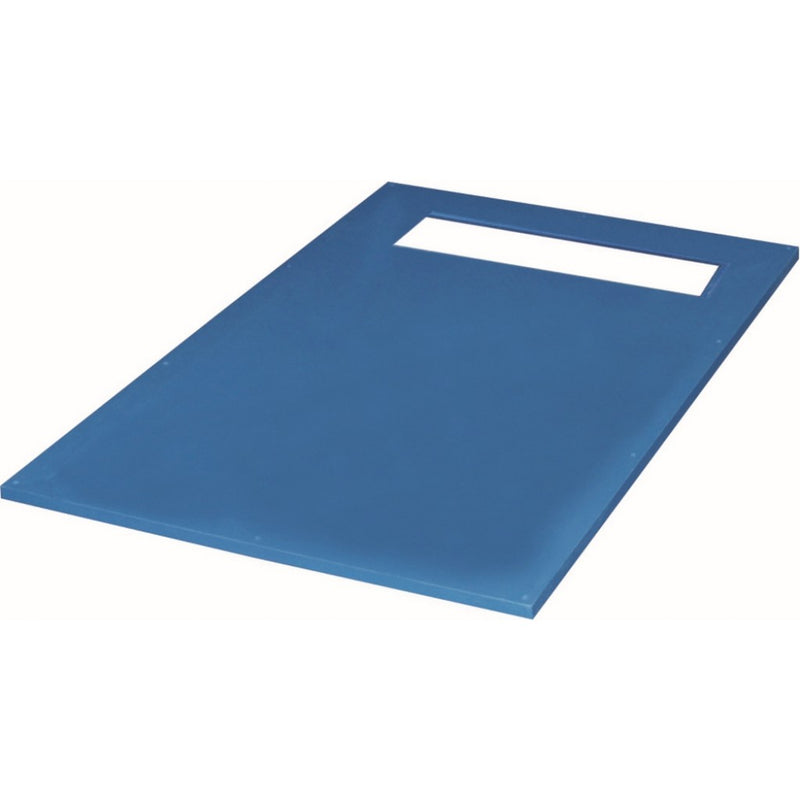

Essential Pro Deck Linear Wet Room Floor Former – Linear Drain, For Tiled Floors
The Essential Pro Deck Linear brings contemporary linear drainage to level-access wet room showering. Sharing the same precision metal-mould construction and unique resin compound as the standard Pro Deck, it is engineered to accept over 470kg point loading and can be tiled directly onto, creating a sleek, step-free shower area with a modern channel drain along one edge.
The deck is self-supporting over standard joists with no full underboarding required, and is equally suited to screed floors. A one-way fall carries water to the linear drain slot, which is sized for either a 600mm or 800mm linear channel drain depending on the deck you choose — each size in the dropdown states its drain slot length.
Key Features
- Level-access, step-free showering with contemporary linear drainage
- Tile directly onto the deck
- Accepts over 470kg point loading
- Pre-formed one-way fall to the linear drain slot
- Self-supporting over standard joists — no full underboarding required
- Suitable for timber or screed floors
- Precision manufactured using metal moulds
- Lifetime manufacturer's warranty
Product Details
| Use | Tiled floors |
| Drainage | Linear drain slot (600mm or 800mm depending on size) |
| Thickness | 22mm (24mm on 1500x1200mm and 1800x900mm decks) |
| Point loading | Over 470kg |
| Base type | Timber or screed floors |
| Waste outlet included | Optional — add the matching Slimline Linear Drain from the Linear Drain dropdown above, or select “No drain needed” if you already have one |
| Warranty | Lifetime |
Please note: two 1200x900mm decks are available — one with a 600mm drain slot and one with an 800mm drain slot. Choose the deck whose slot length matches your linear drain. If you are unsure which configuration suits your installation, contact us before ordering and we will confirm the right combination.
You Will Also Need

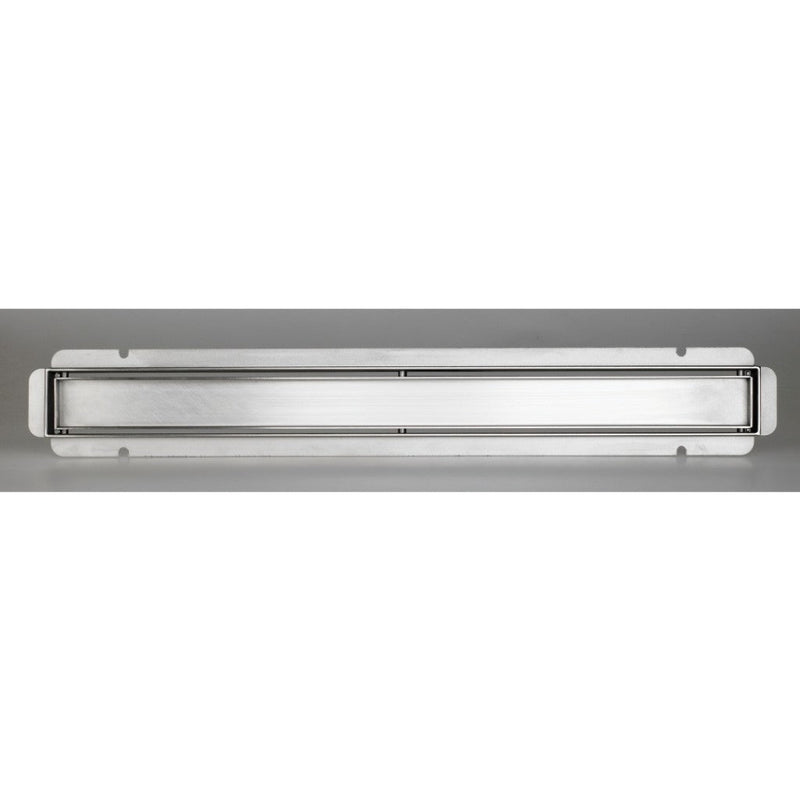

A matching linear channel drain — select “Add Matching Slimline Linear Drain” in the dropdown above and the correct 600mm or 800mm channel for your chosen deck is supplied automatically. You will also need wet room tanking, a shower screen and shower.
Full Range – Sizes & Product Codes
| Size | Drain Slot | Product Code |
|---|---|---|

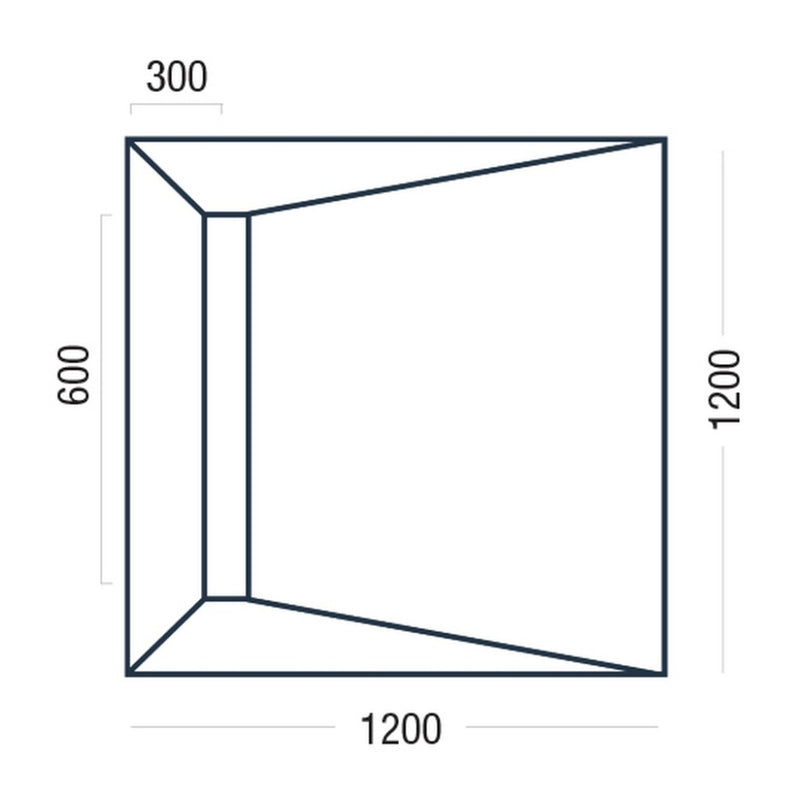

| 1200 x 900 x 22mm | 600mm | P6821987 |
| 1200 x 900 x 22mm | 800mm | P6821985 |
| 1200 x 1200 x 22mm | 600mm | P6821989 |
| 1400 x 900 x 22mm | 800mm | P6821966 |

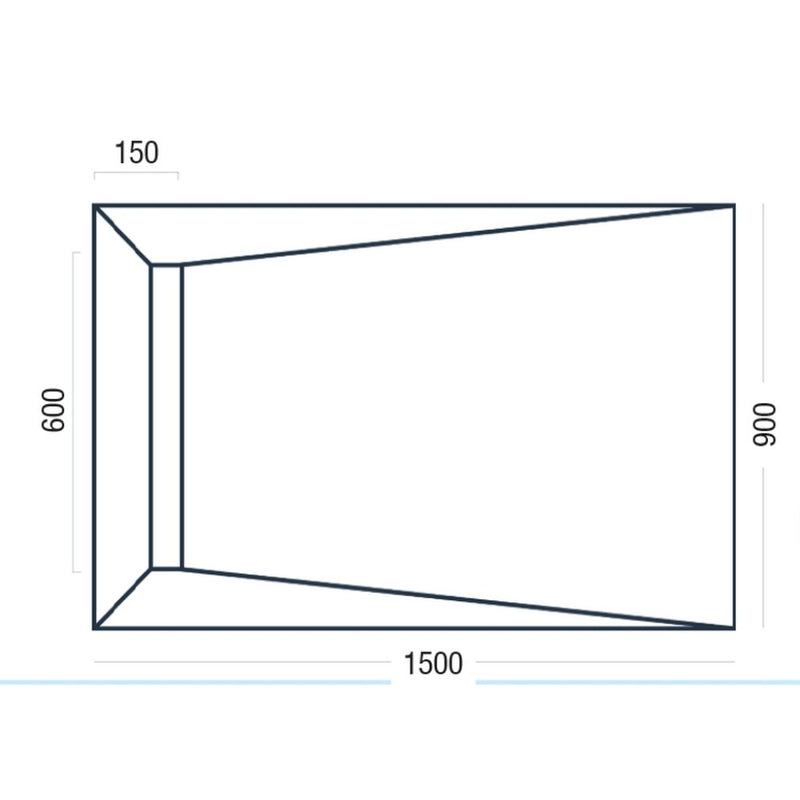

| 1500 x 900 x 22mm | 600mm | P6921982 |
| 1600 x 900 x 22mm | 800mm | P6821945 |
| 1500 x 1200 x 24mm | 800mm | P6821980 |
| 1800 x 900 x 24mm | 600mm | P6821944 |
Delivery is calculated separately at checkout.
