JT Fusion Quadrant Shower Tray 45mm – Standard Gloss White (Non Anti-Slip) with 90mm Waste – All Sizes
The JT Fusion quadrant shower tray from Just Trays, supplied by Kartell UK, is a 45mm low-profile stone resin tray with a gloss white ABS-capped acrylic surface. Every tray is double-skinned for strength and rigidity, installs flat to the floor or raised on a JT Fusion riser kit, and comes with a 90mm high-flow waste in the box. This listing is the standard gloss-surface tray – it is not anti-slip. If you need a slip-resistant surface, choose the JT Fusion Anti-Slip quadrant tray instead, which carries the same sizes with an independently tested anti-slip finish.
- 45mm profile for a low step-in height
- ABS-capped acrylic stone resin, double-skinned
- Gloss white finish, easy to keep clean
- 90mm waste included
- Fits flat to floor or on legs with the JT Fusion Quadrant Riser Panel Kit 1 (FP100Q100) (sold separately)
- 25-year manufacturer guarantee
Which one do I need? Choose Flat top if the tray sits inside an enclosure or the walls are already tiled and sealed. Choose 2 tiling upstands on a new installation where the two wall sides will be tiled after the tray goes in – the upstands sit behind the tiles so water cannot track behind the tray. All JT Fusion quadrants have a 550mm radius curve. The anti-slip version is a separate listing – look for "Anti-Slip" in the product title.
Product Details
| Range | JT Fusion (Just Trays), supplied by Kartell UK |
| Shape | Quadrant |

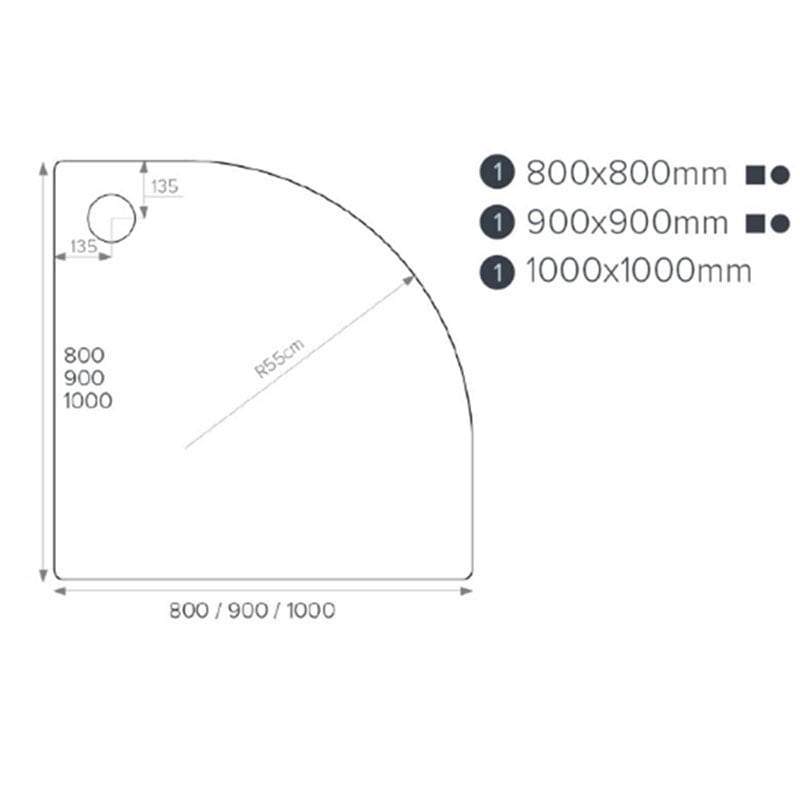

| Sizes | 800 x 800mm, 900 x 900mm, 1000 x 1000mm (550mm radius) |
| Height | 45mm (internal depth 10–25mm, shoulder width 52mm) |
| Material | ABS-capped acrylic stone resin, double-skinned |
| Surface / finish | Standard gloss white – NOT anti-slip (a separate JT Fusion Anti-Slip range is available) |
| Waste | 90mm waste included |
| Installation | Flat to floor, or raised on JT Fusion Quadrant Riser Panel Kit 1 (FP100Q100) |
| Guarantee | 25 years |
Complete the JT Fusion Range
Technical Downloads
Product Codes & Barcodes
| Title | SKU | Description | GTIN |
|---|---|---|---|
| JT Fusion Quadrant Shower Tray 800 x 800mm, Flat top (no upstands) | F80Q100 | JT Fusion 45mm quadrant tray 800 x 800mm, flat top (no upstands), with 90mm waste | – |
| JT Fusion Quadrant Shower Tray 800 x 800mm, 2 tiling upstands | F80Q120 | JT Fusion 45mm quadrant tray 800 x 800mm, 2 tiling upstands, with 90mm waste | – |
| JT Fusion Quadrant Shower Tray 900 x 900mm, Flat top (no upstands) | F90Q100 | JT Fusion 45mm quadrant tray 900 x 900mm, flat top (no upstands), with 90mm waste | – |
| JT Fusion Quadrant Shower Tray 900 x 900mm, 2 tiling upstands | F90Q120 | JT Fusion 45mm quadrant tray 900 x 900mm, 2 tiling upstands, with 90mm waste | – |
| JT Fusion Quadrant Shower Tray 1000 x 1000mm, Flat top (no upstands) | F100Q100 | JT Fusion 45mm quadrant tray 1000 x 1000mm, flat top (no upstands), with 90mm waste | – |
