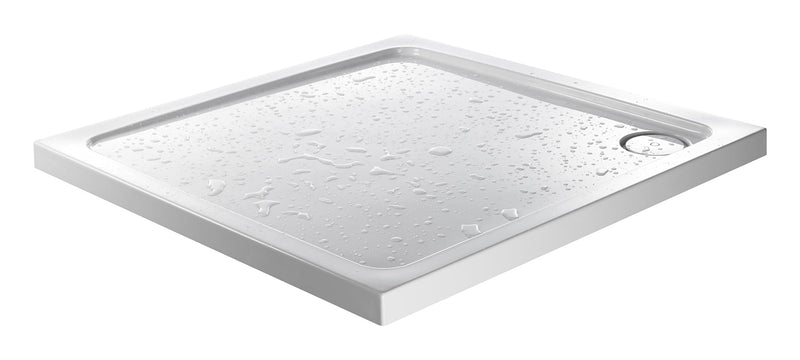

JT Fusion Square Shower Tray 45mm – Standard Gloss White (Non Anti-Slip) with 90mm Waste – All Sizes
The JT Fusion square shower tray from Just Trays, supplied by Kartell UK, is a 45mm low-profile stone resin tray with a gloss white ABS-capped acrylic surface. Every tray is double-skinned for strength and rigidity, installs flat to the floor or raised on a JT Fusion riser kit, and comes with a 90mm high-flow waste in the box. This listing is the standard gloss-surface tray – it is not anti-slip. If you need a slip-resistant surface, choose the JT Fusion Anti-Slip square tray instead, which carries the same sizes with an independently tested anti-slip finish. Choose your size from the dropdown, then choose a flat-top tray or the version with four integrated tiling upstands for a watertight finish against tiled walls.
- 45mm profile for a low step-in height
- ABS-capped acrylic stone resin, double-skinned
- Gloss white finish, easy to keep clean
- 90mm waste included
- Fits flat to floor or on legs with a JT Fusion riser kit (sold separately)
- Flat top or 4 tiling upstands
- 25-year manufacturer guarantee
Which one do I need? Choose Flat top if the tray sits inside an enclosure or the walls are already tiled and sealed. Choose 4 tiling upstands on a new installation where the walls will be tiled after the tray goes in – the upstands sit behind the tiles so water cannot track behind the tray. The anti-slip version of this tray is a separate listing – look for "Anti-Slip" in the product title.
Product Details
| Range | JT Fusion (Just Trays), supplied by Kartell UK |
| Shape | Square |
| Sizes | 700 x 700mm, 760 x 760mm, 800 x 800mm, 900 x 900mm, 1000 x 1000mm |
| Height | 45mm (internal depth 10–25mm, shoulder width 52mm) |
| Upstand trays | 13mm tiling upstands; add 6mm per upstand side to the overall tray size |

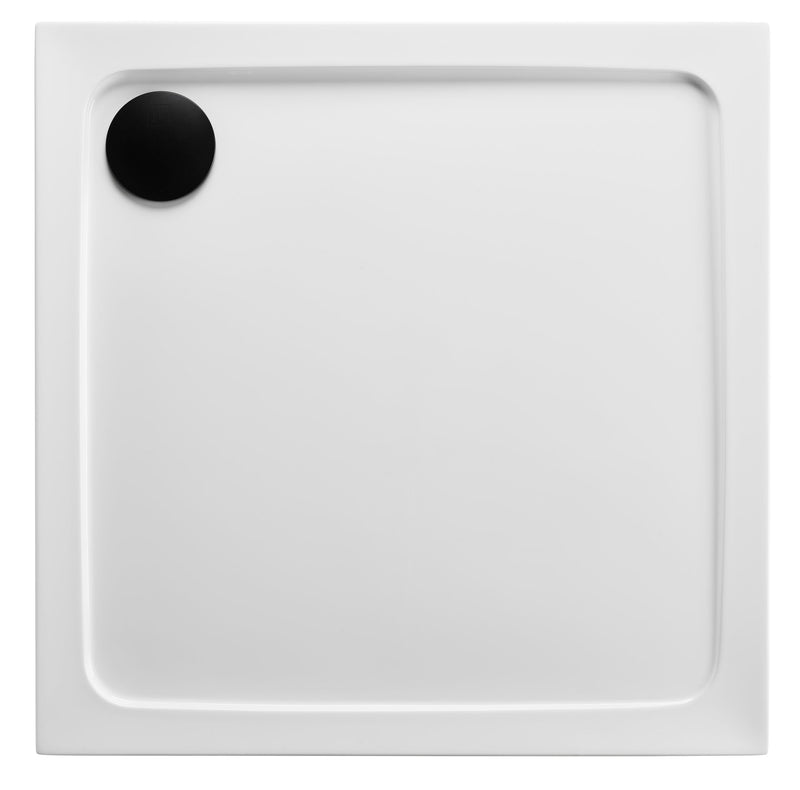

| Waste position | Corner; 141 x 141mm from the outside edge on upstand trays |
| Material | ABS-capped acrylic stone resin, double-skinned |
| Surface / finish | Standard gloss white – NOT anti-slip (a separate JT Fusion Anti-Slip range is available) |
| Waste | 90mm waste included |
| Installation | Flat to floor, or raised on JT Fusion Riser Panel Kit 3 |
| Guarantee | 25 years |
Complete the JT Fusion Range
Technical Downloads
Product Codes & Barcodes
| Title | SKU | Description | GTIN |
|---|---|---|---|
| JT Fusion Square Shower Tray 700 x 700mm, Flat top (no upstands) | F70100 | JT Fusion 45mm square tray 700 x 700mm, flat top (no upstands), with 90mm waste | – |
| JT Fusion Square Shower Tray 700 x 700mm, 4 tiling upstands | F70140 | JT Fusion 45mm square tray 700 x 700mm, 4 tiling upstands, with 90mm waste | – |
| JT Fusion Square Shower Tray 760 x 760mm, Flat top (no upstands) | F760100 | JT Fusion 45mm square tray 760 x 760mm, flat top (no upstands), with 90mm waste | 5055039316528 |
| JT Fusion Square Shower Tray 760 x 760mm, 4 tiling upstands | F760140 | JT Fusion 45mm square tray 760 x 760mm, 4 tiling upstands, with 90mm waste | – |
| JT Fusion Square Shower Tray 800 x 800mm, Flat top (no upstands) | F80100 | JT Fusion 45mm square tray 800 x 800mm, flat top (no upstands), with 90mm waste | 5055039316535 |
| JT Fusion Square Shower Tray 800 x 800mm, 4 tiling upstands | F80140 | JT Fusion 45mm square tray 800 x 800mm, 4 tiling upstands, with 90mm waste | – |
| JT Fusion Square Shower Tray 900 x 900mm, Flat top (no upstands) | F90100 | JT Fusion 45mm square tray 900 x 900mm, flat top (no upstands), with 90mm waste | 5055039316542 |
| JT Fusion Square Shower Tray 900 x 900mm, 4 tiling upstands | F90140 | JT Fusion 45mm square tray 900 x 900mm, 4 tiling upstands, with 90mm waste | – |
| JT Fusion Square Shower Tray 1000 x 1000mm, Flat top (no upstands) | F100100 | JT Fusion 45mm square tray 1000 x 1000mm, flat top (no upstands), with 90mm waste | – |
