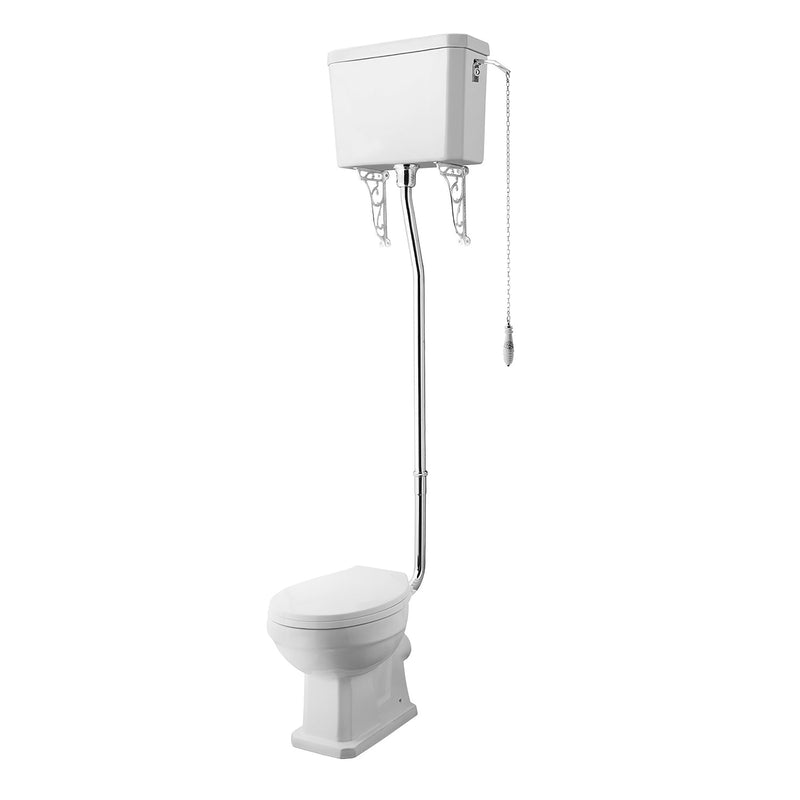

Nuie Carlton Traditional High Level Toilet Pan, Cistern & Flush Pipe Kit (CCT002)
The Nuie Carlton high level toilet is the full Victorian statement piece ā a wall-mounted cistern set high above the pan, connected by a long chrome flush pipe and operated by a pull chain. At 2140mm to the top of the cistern it needs a decent ceiling height, but in a period property with the room for it there is nothing else that looks quite the same.
The high mounting is not just for show: the extra head of water gives a notably powerful flush. The pan and cistern are white vitreous china and the high level flush pipe pack is included. A seat is not included and will need to be ordered separately, so you can choose a timber seat to match the period.
- Traditional high level suite ā pan, cistern and flush pipe kit included
- Chain pull operation
- Long chrome flush pipe
- Seat sold separately
- 2140mm overall height ā check your ceiling height before ordering
- 625mm projection
- White vitreous china
- Supplied in three cartons (pan NCS870, cistern NCS872, flush pipe FA313)
- Five-year manufacturer's guarantee
Product Details
| Product Code | CCT002 |
| Range | Nuie Carlton |
| Type | High level toilet ā pan, cistern & flush pipe kit |
| Pan Type | Open to Wall |
| Flush | Chain pull |
| Bowl Shape | Round |
| Seat | Not included ā sold separately |
| Material | Vitreous China |
| Colour | White |
| Height | 2140mm |
| Width | 472mm |
| Projection (Depth) | 625mm |
| Style | Traditional |
| Guarantee | 5 Years |
Complete the Nuie Carlton range
You will need a seat to complete this suite ā browse our toilet seats. Co-ordinate with matching pieces from the Nuie Carlton ceramics range, including the low level suite and the close coupled toilet.
Technical Downloads
Product Codes & Barcodes
| Title | SKU | Description | GTIN |
|---|---|---|---|
| Nuie Carlton Traditional High Level Toilet Pan, Cistern & Flush Pipe Kit | CCT002 | Carlton traditional high level toilet, pan, cistern & flush pipe kit, seat not included, White | 5056211820079 |
| Component ā Pan | NCS870 | High/low level pan, excluding seat | ā |
| Component ā Cistern | NCS872 | High level cistern including fittings | ā |
| Component ā Flush Pipe | FA313 | High level flush pipe pack | ā |
