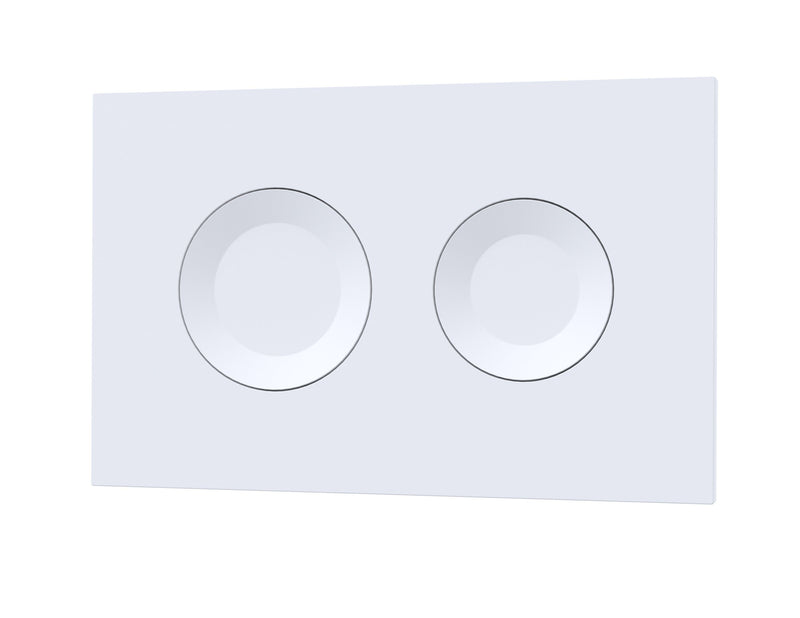

Nuie matt white round dual flush push button plate

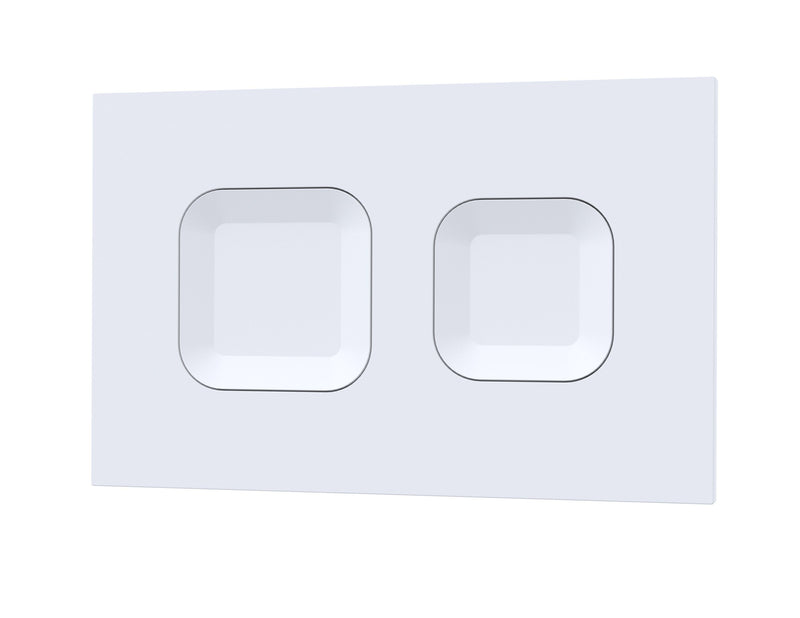

Nuie matt white square dual flush push button plate

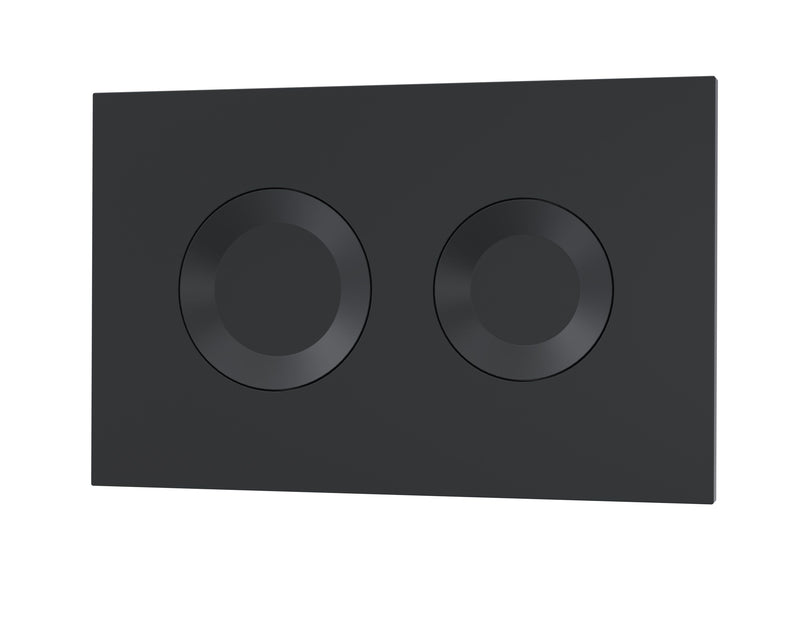

Nuie matt black round dual flush push button plate

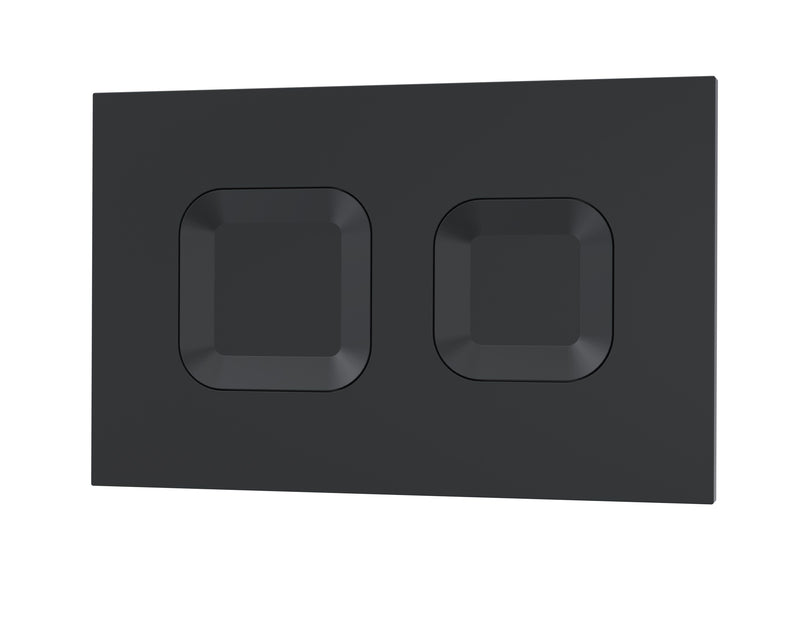

Nuie matt black square dual flush push button plate

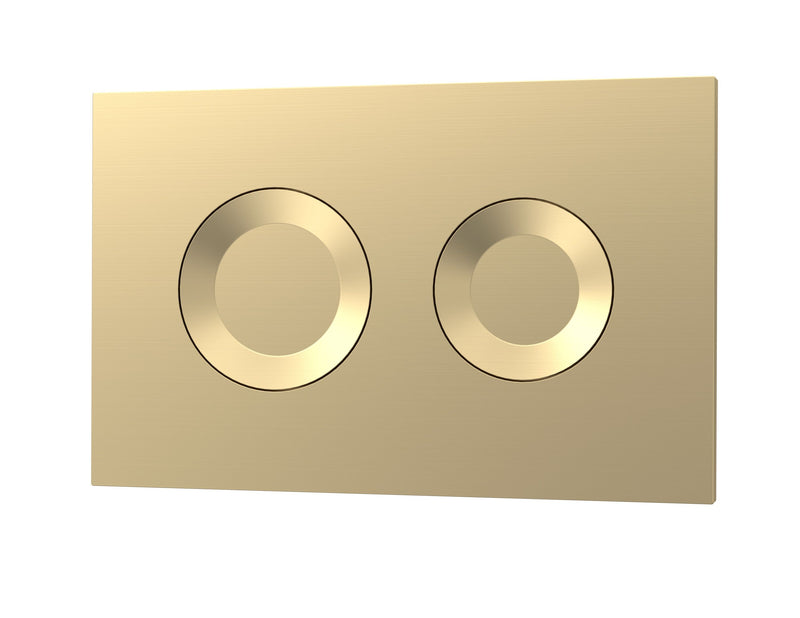

Nuie brushed brass round dual flush push button plate

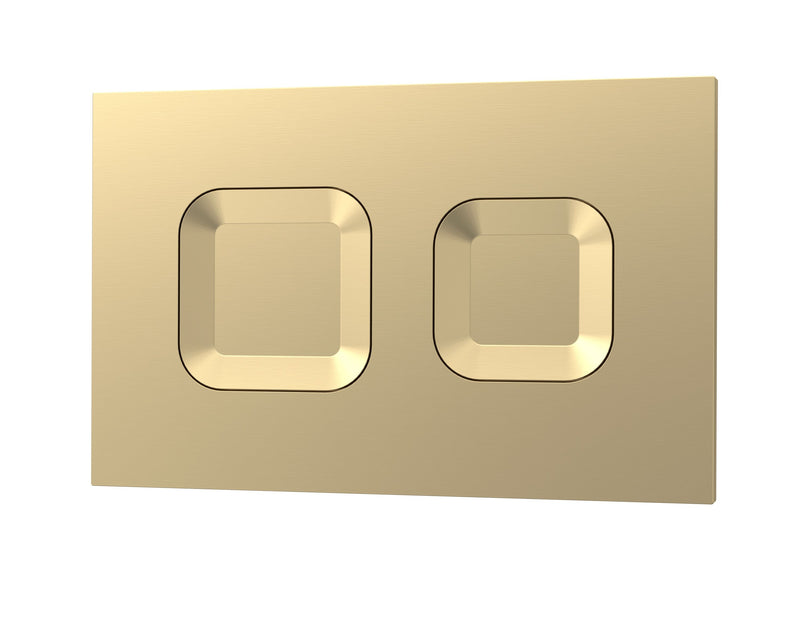

Nuie brushed brass square dual flush push button plate

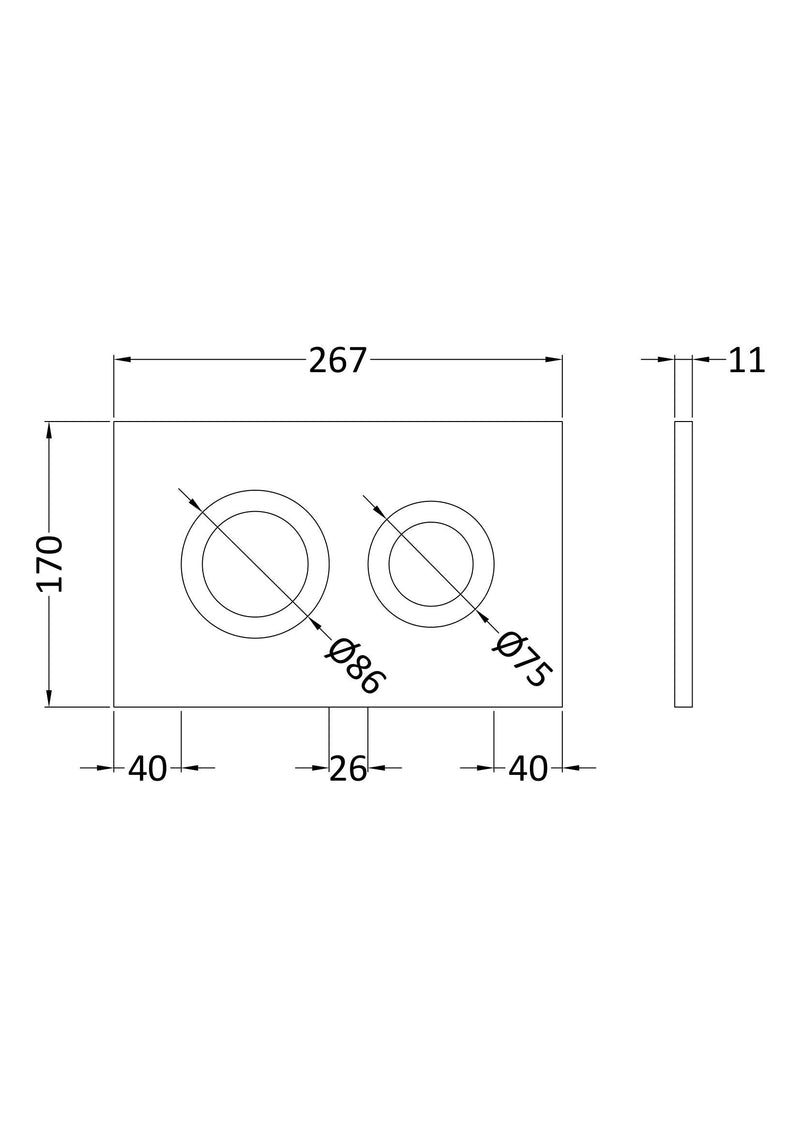

Nuie round dual flush push button plate dimensions line drawing

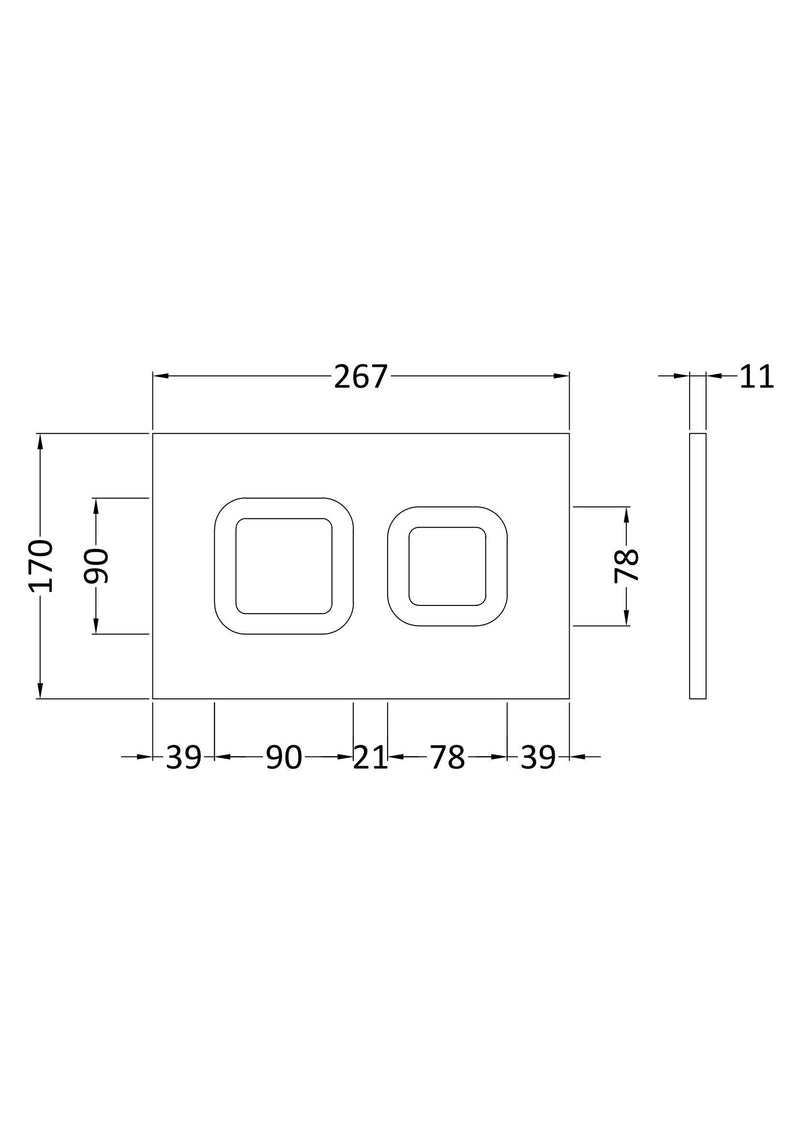

Nuie square dual flush push button plate dimensions line drawing

Nuie Dual Flush Push Button Plate

by Nuie
Save 50% Save 50%
£53.00
£53.00 - £99.00
£53.00
£26.50
£26.50 - £49.50
£26.50

The Nuie dual flush push button plate is the visible face of a concealed cistern installation — the only part of the system on show once the wall is boarded and tiled. It operates a two-stage dual flush, with the larger button delivering a full flush and the smaller a reduced volume, and it lifts off for access to the cistern internals behind without disturbing the surrounding wall finish.

The plate measures 267mm wide by 170mm high and sits just 11mm proud of the finished wall, so it reads as a flat detail rather than a protruding fitting. Construction is stainless steel with a corrosion-resistant finish that holds up to daily handling and the humidity of a bathroom.

Choose a round or square button profile in matt white, matt black or brushed brass to tie the flush plate in with the rest of your brassware and accessories. This plate is designed to fit the Nuie concealed cistern and toilet wall frame range, and is a straightforward way to change the look of an existing installation without touching the cistern itself.

Product Details

  • Dual flush push button plate for concealed cisterns
  • Overall size: 267mm wide x 170mm high x 11mm deep
  • Stainless steel construction with corrosion-resistant finish
  • Two-stage dual flush operation — full and reduced volume
  • Removable for access to cistern internals
  • Round or square button profile
  • Available in matt white, matt black and brushed brass
  • Fits the Nuie concealed cistern and toilet wall frame range
  • Approximate weight: 0.5kg
  • 1 year manufacturer's guarantee

Finish & Shape Options

Option Product Code Finish Button Shape
Matt White Round XTY009PR1 Matt White Round
Matt White Square XTY009PS1 Matt White Square
Matt Black Round XTY009PR4 Matt Black Round
Matt Black Square XTY009PS4 Matt Black Square
Brushed Brass Round XTY009PR8 Brushed Brass Round
Brushed Brass Square XTY009PS8 Brushed Brass Square

Complete the Nuie WC Frames range

Pair this plate with a Nuie concealed cistern, or with the 1136mm or 890mm toilet wall frame if you are building a wall hung WC installation from scratch. Browse the full selection in the Toilet Wall Frames and Flush Plates collections.

Technical Downloads

Full Range - Product Codes & Barcodes

Title SKU Description GTIN
Matt White Round XTY009PR1 Nuie matt white round dual flush push button plate for concealed cisterns 5056678435496
Matt White Square XTY009PS1 Nuie matt white square dual flush push button plate for concealed cisterns 5056678435472
Matt Black Round XTY009PR4 Nuie matt black round dual flush push button plate for concealed cisterns 5056678435502
Matt Black Square XTY009PS4 Nuie matt black square dual flush push button plate for concealed cisterns 5056678435489
Brushed Brass Round XTY009PR8 Nuie brushed brass round dual flush push button plate for concealed cisterns 5056678459713
Brushed Brass Square XTY009PS8 Nuie brushed brass square dual flush push button plate for concealed cisterns 5056678459706
