Nuie Revive Horizontal Single Panel Radiator (All Colours)
by Nuie
Save 50%
Original price
£198.00
Original price
£198.00
-
Original price
£491.00
Original price
£198.00
Current price
£99.00
£99.00
-
£245.50
Current price
£99.00
The Nuie Revive horizontal single panel radiator delivers dependable, high heat output with a clean contemporary profile that suits living rooms, kitchens, hallways and open-plan spaces. Its horizontal format makes efficient use of wall space in the rooms that need it most.
- Contemporary single panel radiator in a horizontal format
- Constructed from durable steel with a smooth powder-coat finish
- Available finishes: High Gloss White, Anthracite
- Compatible with standard central heating systems
- Wall mounting brackets included
- Backed by a 5-year manufacturer guarantee
Product Details
- Material: Steel with powder-coat finish
- Orientation: Horizontal
- Type: Single Panel
- Finish options: High Gloss White, Anthracite
- Mounting: Wall mounted (brackets supplied)
- Guarantee: 5 years
Heat Output & Sizes
| Size (H x W) | Finish | BTU (ΔT 50) | BTU (ΔT 60) | Watts (ΔT 50) | Pipe Centres |
|---|---|---|---|---|---|

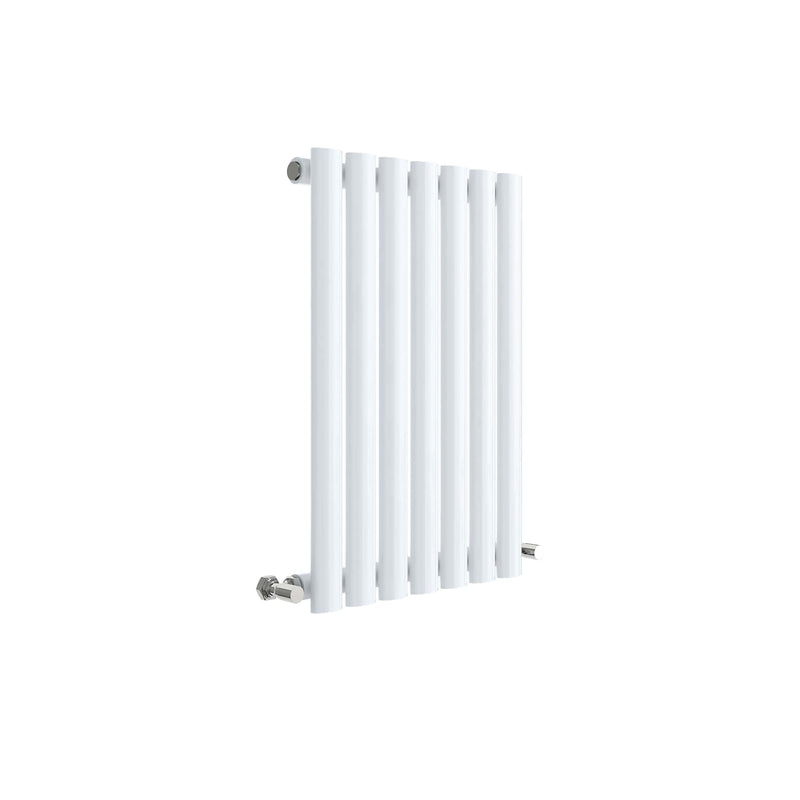

| 600 x 412mm | High Gloss White | 1034 | 1309 | 303 | 502 |
| 600 x 586mm | High Gloss White | 1477 | 1871 | 433 | 676 |
| 600 x 992mm | High Gloss White | 2511 | 3180 | 736 | 1082 |
| 600 x 412mm | Anthracite | 1034 | 1309 | 303 | 502 |
| 600 x 586mm | Anthracite | 1477 | 1871 | 433 | 676 |
| 600 x 992mm | Anthracite | 2511 | 3180 | 736 | 1082 |
Complete the Range
Add matching Nuie radiator valves using the valve option above, and explore the full Revive collection for single and double panel options in vertical and horizontal formats.
Technical Downloads

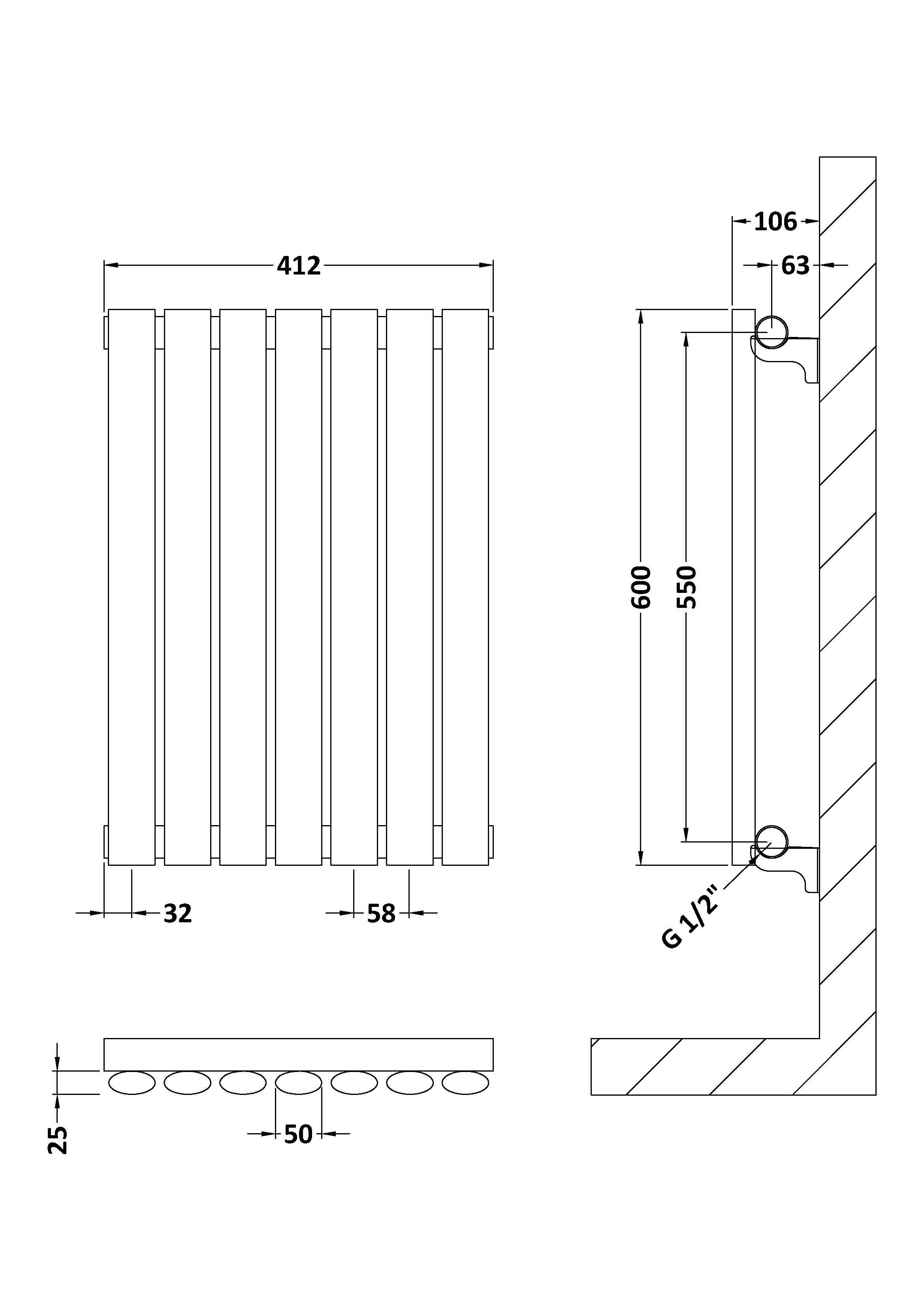

- High Gloss White 600 x 412mm — dimensioned drawing (HL337)

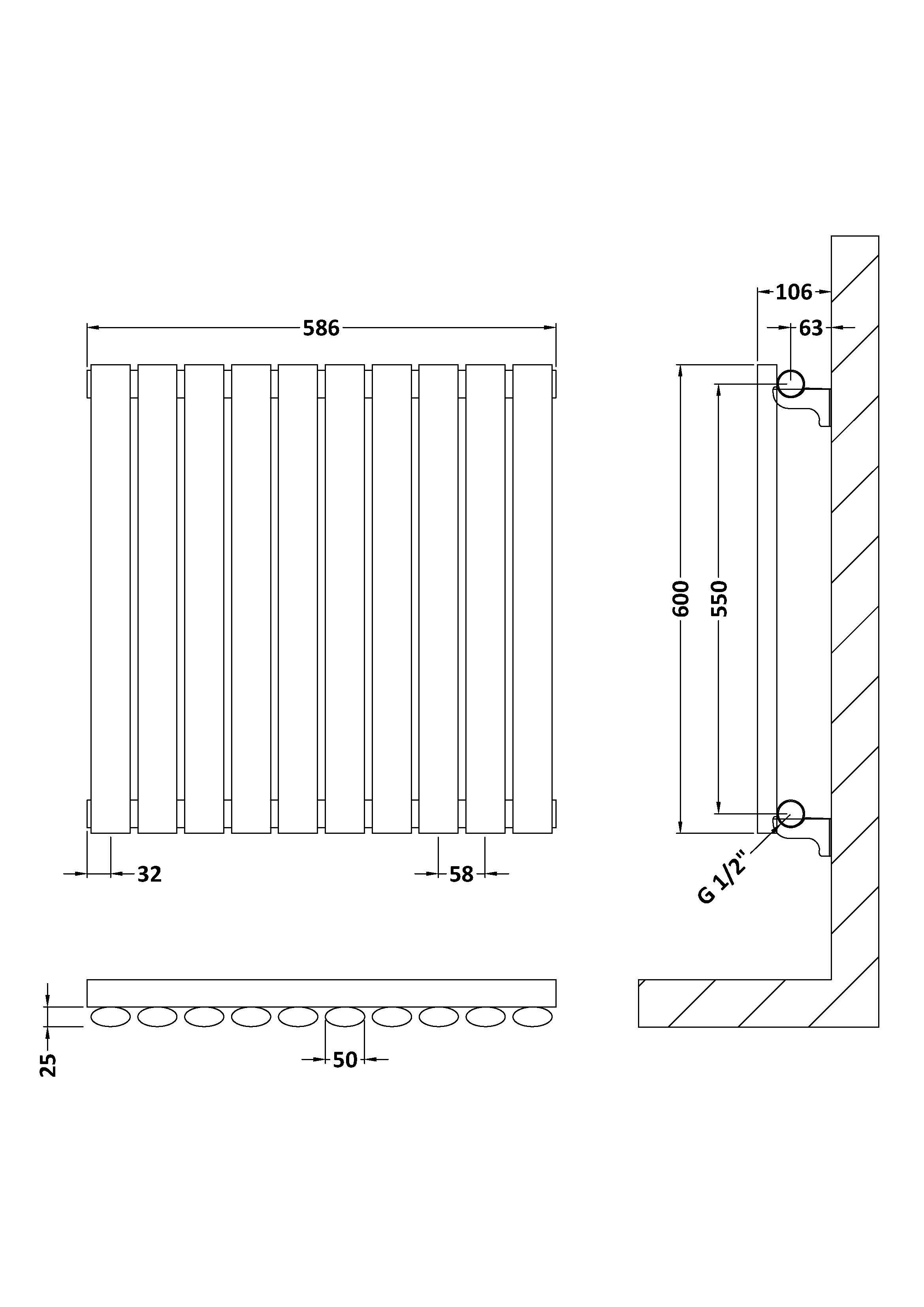

- High Gloss White 600 x 586mm — dimensioned drawing (HL338)

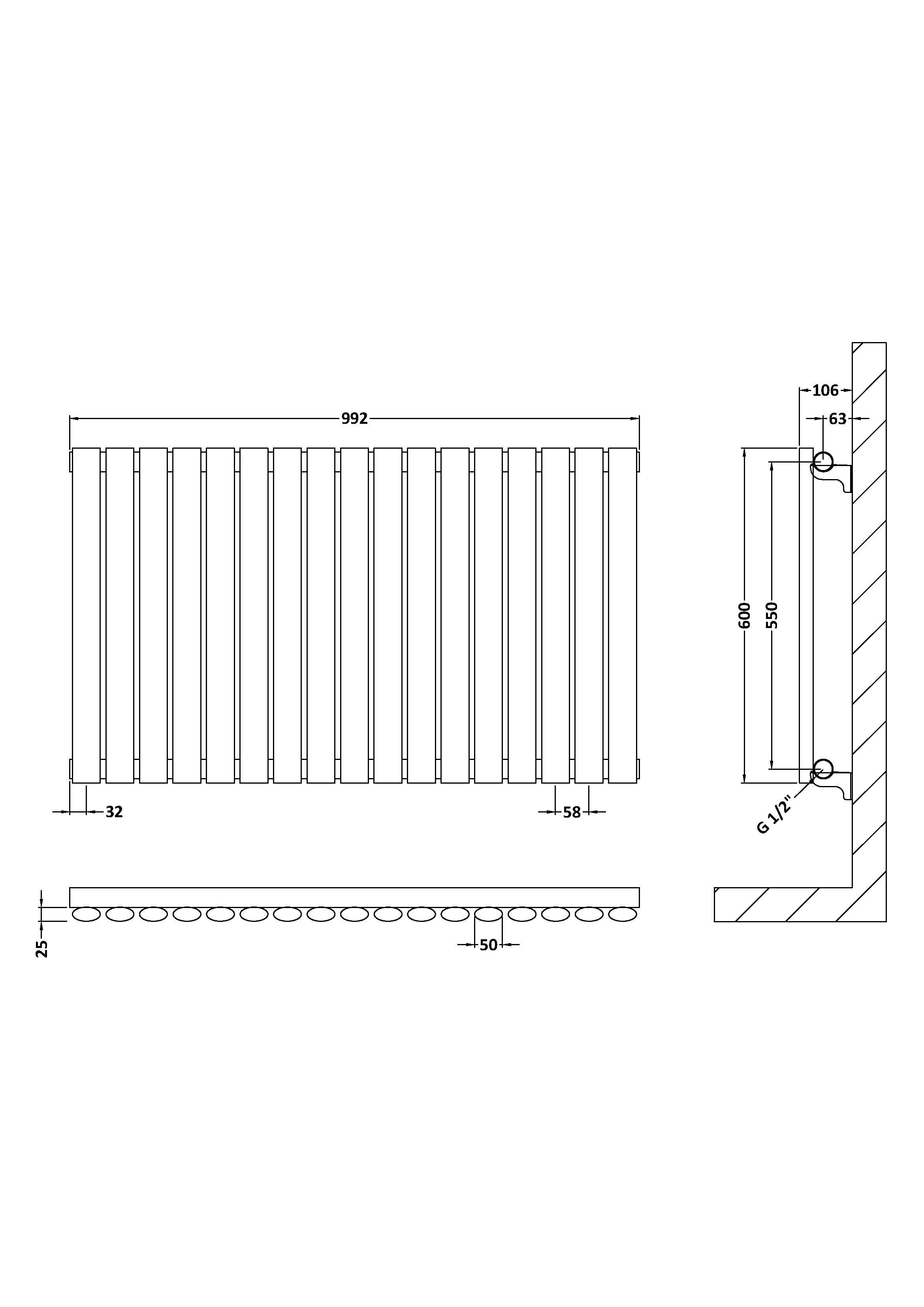

- High Gloss White 600 x 992mm — dimensioned drawing (HL339)
- Anthracite 600 x 412mm — dimensioned drawing (HLA37)
- Anthracite 600 x 586mm — dimensioned drawing (HLA38)
- Anthracite 600 x 992mm — dimensioned drawing (HLA39)
Full Range Codes & Barcodes
| Variant | SKU | Description | GTIN |
|---|---|---|---|
| High Gloss White 600 x 412mm (HL337) | HL337 | Revive High Gloss White 600mm x 412mm Horizontal Single Panel Radiator | 5056211885078 |

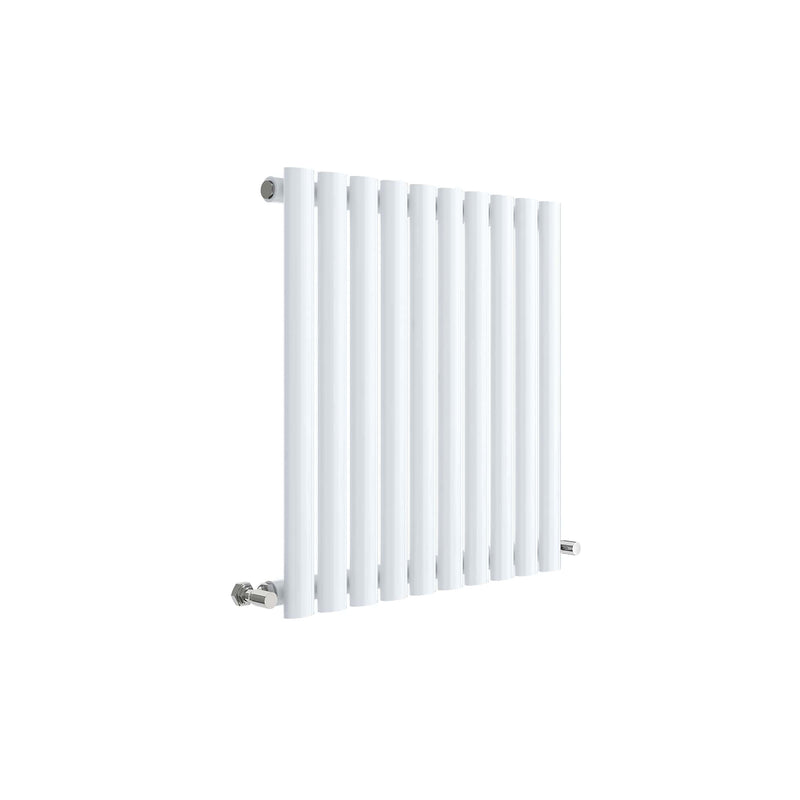

| High Gloss White 600 x 586mm (HL338) | HL338 | Revive High Gloss White 600mm x 586mm Horizontal Single Panel Radiator | 5056211885092 |

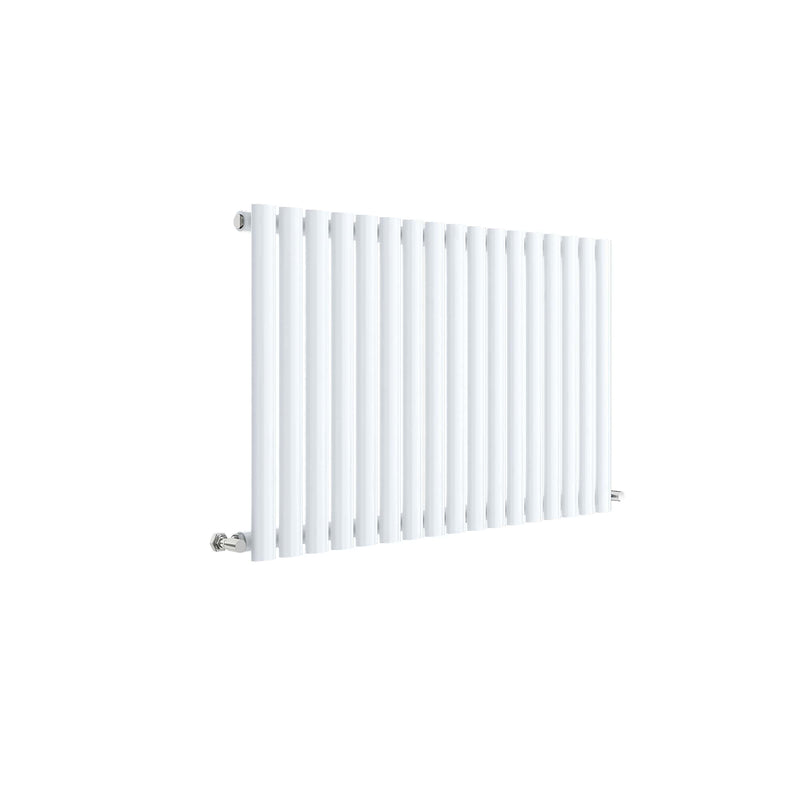

| High Gloss White 600 x 992mm (HL339) | HL339 | Revive High Gloss White 992 x 600mm Horizontal Single Panel Radiator | 5056211885115 |

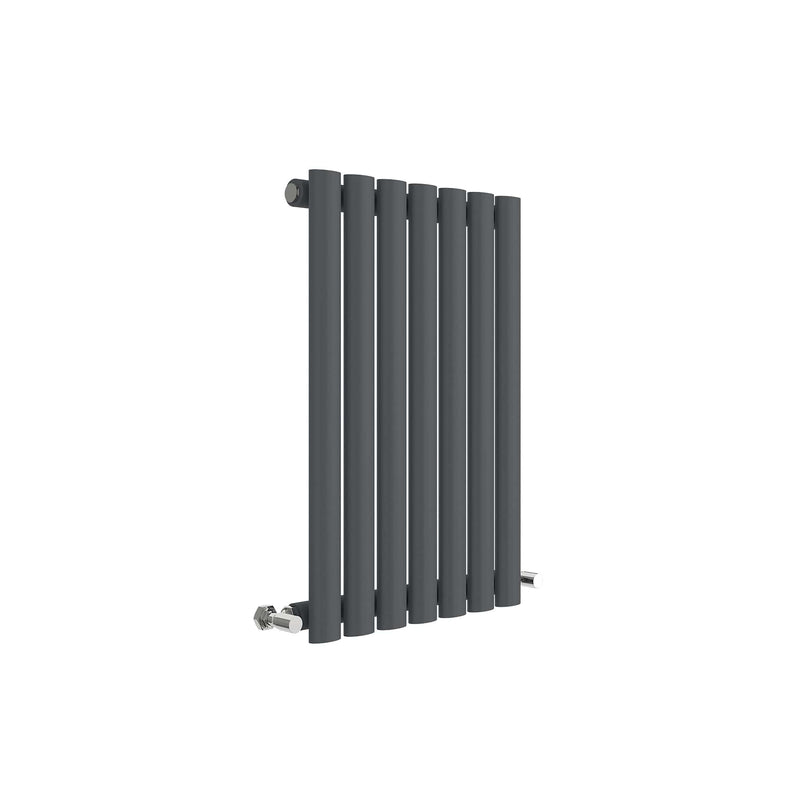

| Anthracite 600 x 412mm (HLA37) | HLA37 | Revive Anthracite 600mm x 412mm Horizontal Single Panel Radiator | 5056211885085 |

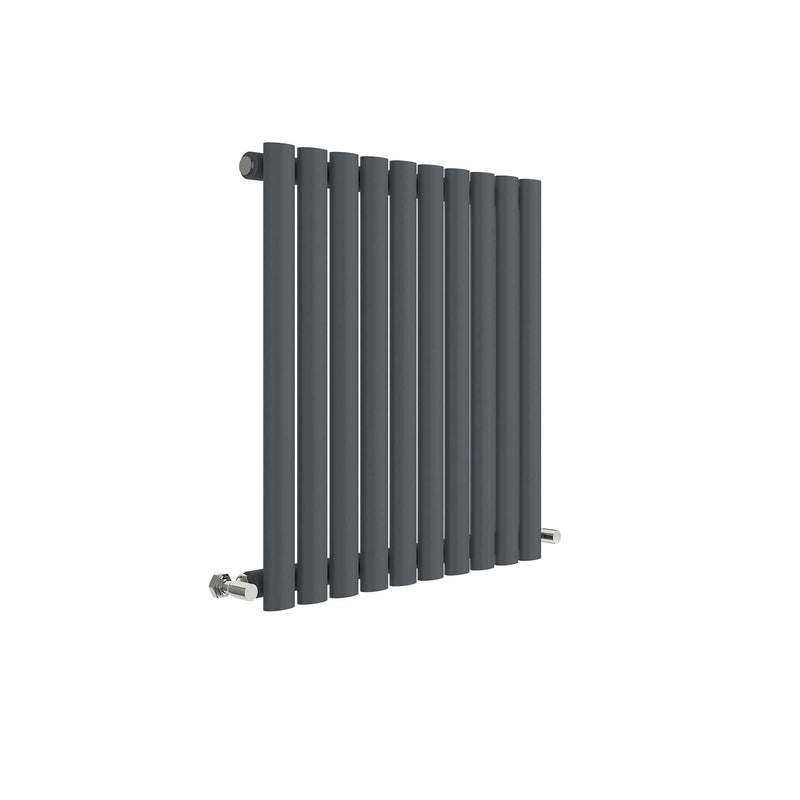

| Anthracite 600 x 586mm (HLA38) | HLA38 | Revive Anthracite 600mm x 586mm Horizontal Single Panel Radiator | 5056211885108 |

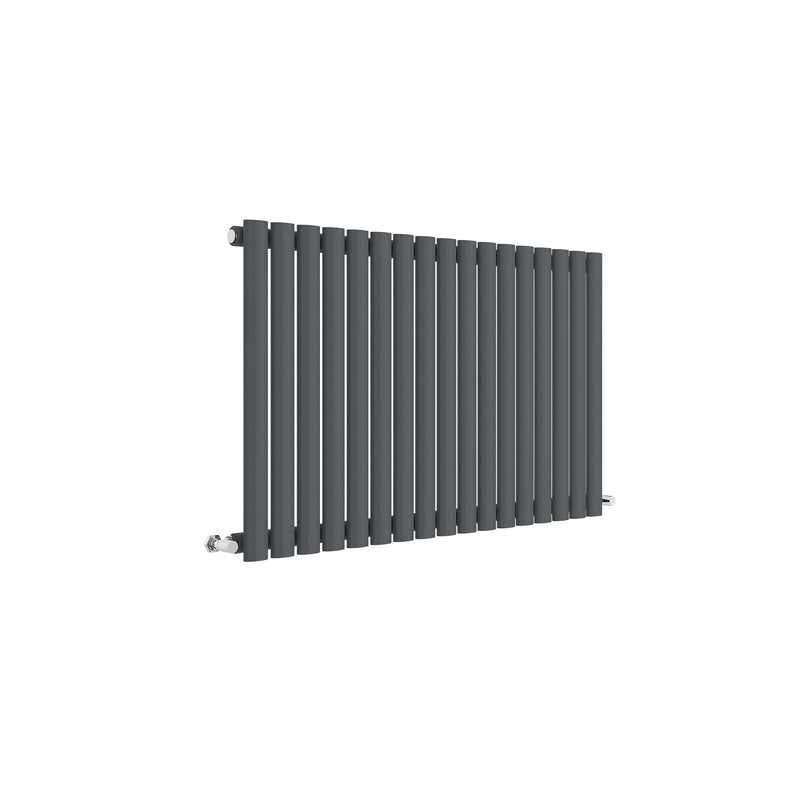

| Anthracite 600 x 992mm (HLA39) | HLA39 | Revive Anthracite 992mm x 600mm Horizontal Single Panel Radiator | 5056211885122 |
