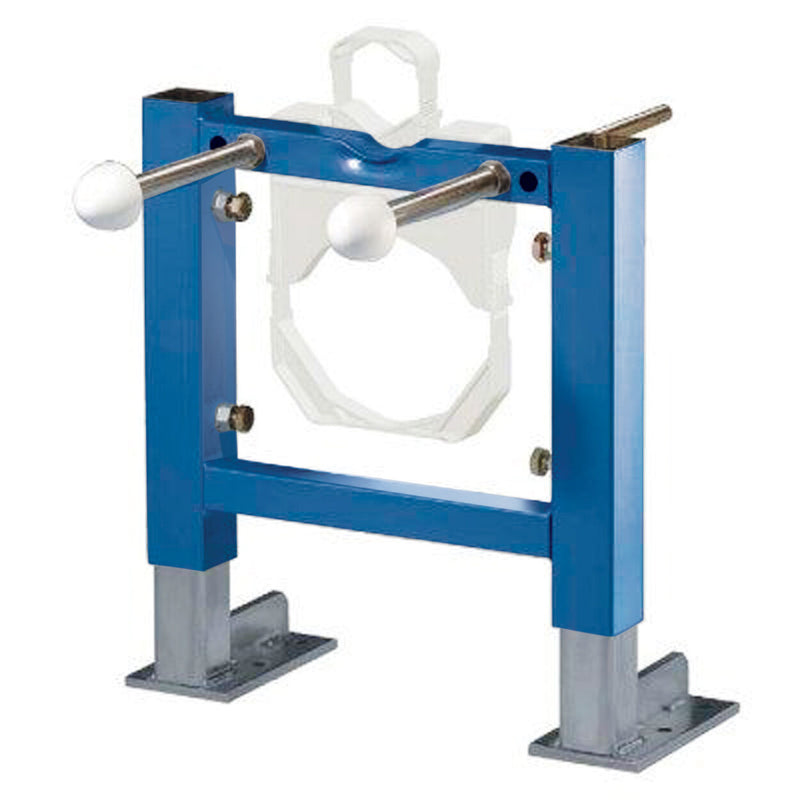

Nuie Wall Hung Toilet & Bidet Support Frame
The Nuie support frame is a load-bearing carrier for a wall hung toilet pan or bidet. It takes the entire weight of the ceramic and the person using it and transfers that load to the floor and the structural wall behind, rather than through the plasterboard or tiled face. Once the wall is boarded and finished, the frame is completely hidden and the pan appears to float clear of the floor.
The legs adjust between 325mm and 525mm, which lets you set the finished bowl height to the standard 400mm above finished floor level regardless of screed or tile build-up. The bowl fixation rods locate into a choice of holes in the frame so you can match the bolt centres of whichever pan or bidet you are fitting, and a bidet collar is included in the box alongside the wall brackets, adjustable legs, metal pegs, fixing screws and bowl fixing kit.
This frame does not include a cistern. It carries the ceramic only, so a concealed cistern is required alongside it and is mounted separately within the duct or stud wall above the frame. Water supply and waste connections are made on site to suit your pipework layout.
Construction is galvanised steel finished in matt white, and the frame needs a minimum wall depth of 140mm to sit within. Maximum finished floor thickness above the mounting feet is 185mm.
Product Details
- Load-bearing support frame for a wall hung toilet pan or bidet
- Cistern not included — a concealed cistern is required separately
- Frame size as supplied: 355mm high x 370mm wide x 510mm deep
- Leg height adjustable from 325mm to 525mm
- Sets finished bowl height at 400mm above finished floor
- Adjustable bowl fixation rods to suit a range of pan and bidet bolt centres
- Bidet collar included
- Minimum wall depth required: 140mm
- Maximum finished floor thickness: 185mm
- Galvanised steel construction, matt white finish
- Supplied with wall brackets, adjustable legs, metal pegs, fixing screws, washers and bowl fixing kit
- Weight: 10.5kg
- Manufactured in the United Kingdom
- 1 year manufacturer's guarantee
You will also need a concealed cistern
Because this frame carries the ceramic only, pair it with a concealed cistern mounted above it in the duct. If you want to choose your own flush plate separately, the side inlet or bottom inlet dual flush cistern is the starting point, finished with a plate from the Flush Plates collection. If you would rather buy the cistern and plate together, the Concealed Cisterns range includes matched sets in chrome, matt white, matt black, brushed brass and brushed pewter.
Complete the Nuie WC Frames range
If you would prefer a single frame with the cistern already built into it, the 1136mm and 890mm toilet wall frames combine both in one unit. Browse the full selection in the Toilet Wall Frames collection.
Technical Downloads
Full Range - Product Codes & Barcodes
| Title | SKU | Description | GTIN |
|---|---|---|---|
| Wall Hung Toilet & Bidet Support Frame | S4WHF | Nuie matt white galvanised steel support frame for a wall hung toilet pan or bidet, 355 x 370 x 510mm, legs adjustable 325-525mm, cistern not included | 5055275805305 |
