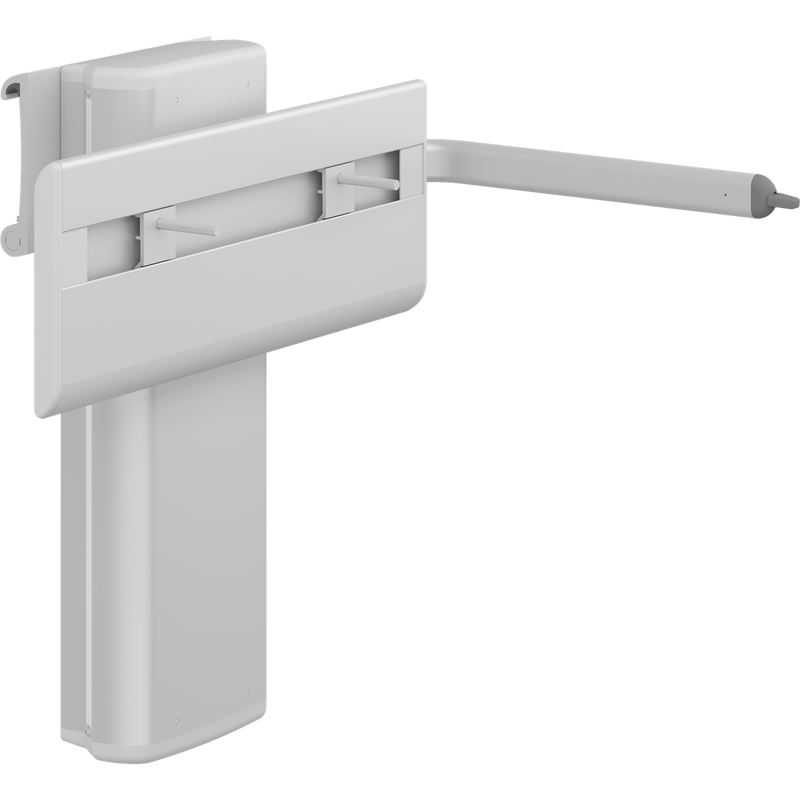

Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable & Sideways, Lever Control, Track-Mounted, White (R4780)
The Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable & Sideways, Lever Control, Track-Mounted, White (R4780) combines powered 300 mm rise-and-fall (668–968 mm) with sideways travel along a horizontal PLUS wall track — the most flexible PLUS basin bracket, ideal for Changing Places, school hygiene rooms and multi-user accessible bathrooms where the basin must serve everyone.
From the Pressalit PLUS range, the front lever control fits either side and doubles as a towel rail; an independent user can set the height themselves. Built from 10-micrometre anodised aluminium with ABS polymer caps, driven by a Linak LA40 actuator (230 V, IPX6, 75 W). Suits all bolt-mounted wash basins (recommended with MATRIX Small and Curve/Curve II) and ships with fixing bolts for the basin. Rated to 100 kg maximum user weight (104 kg SWL), 10-year expected service life. For fitting to a horizontal PLUS wall track (track not included). Recommended flexible feed/waste: R2074/R2075/R2077.
Supplied by Essential Bathrooms at up to 20% below Pressalit’s RRP, with the full Pressalit Care catalogue, expert specification support, and fast UK-wide delivery.
Specification
- Product Code: R4780
- Range: Pressalit PLUS
- Type: Wash Basin Bracket, electrically height adjustable + manually sideways adjustable, lever control

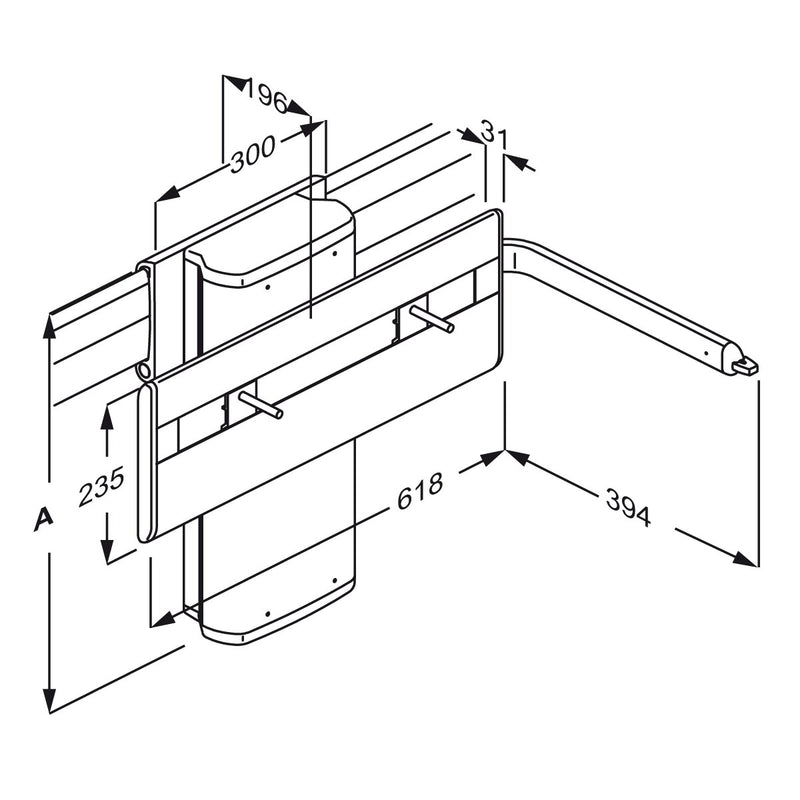

- Adjustment: Electrically height adjustable 300 mm (668–968 mm) plus sideways travel along the track
- Operation: Front lever control (fits either side; doubles as a towel rail)
- Power: 230 V, 50/60 Hz, IPX6, 75 W; Linak LA40 actuator
- Compatible Basins: All bolt-mounted wash basins (recommended with MATRIX Small and Curve/Curve II), basin weight up to 22 kg
- Mounting: Horizontal PLUS wall track (track not included)
- Maximum User Weight: 100 kg (safe working load 104 kg)
- Colour: White
- EAN: 5708590309330
- Manufacturer: Pressalit
Specification / tender reference: Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable & Sideways, Lever Control, Track-Mounted, White (Product Code R4780), supplied by Essential Bathrooms — https://www.essentialbathrooms.co.uk/products/pressalit-plus-wash-basin-bracket-electrically-height-adjustable-sideways-lever-control-track-mounted-white-r4780
Technical Downloads
Many Pressalit Care products qualify for VAT relief for eligible disabled or chronically ill users — contact us to check eligibility. Lead time is confirmed at the point of order.
