Low Surface Temperature Radiators Explained: Safe-Touch Bathroom Heating

Ask most people what a bathroom radiator does and they will say it heats the room and dries the towels. Both true. What tends to go unmentioned is that a conventional towel rail runs at a surface temperature somewhere between 60°C and 75°C, and skin held against a 60°C surface will burn in about five seconds.

For most households that is a non-issue. In a care home, a school washroom, a rented flat or a bathroom used by very young children, it becomes a design problem with a specific solution: the low surface temperature radiator, usually shortened to LST.

What low surface temperature actually means

An LST radiator is engineered so that no touchable part of it exceeds a fixed ceiling temperature, regardless of how long it has been running. On the AKW range that ceiling is 43°C. The rail still heats the room and still dries towels; it simply cannot get hot enough to cause a contact burn.

That is a different thing from a guarded or cased radiator, which is a normal high-temperature radiator with a cover over it. A guarded radiator hides a hot surface behind a barrier. An LST radiator has no hot surface to hide. The distinction matters when the covering is removed for cleaning, or when someone leans against the unit from an angle the guard does not protect.

Why 43°C?

43°C is the accepted ceiling for touchable heated surfaces in care and healthcare settings, and it is the same figure used for safe hot water delivery at the outlet. It sits comfortably above skin temperature, so the rail feels warm and works as a towel dryer, but below the threshold at which prolonged contact causes damage.

The practical consequence is that an LST rail can be specified in a room without a risk assessment attached to it, and without anyone needing to remember to turn it down.

How the AKW LST rails hold that temperature

Three things combine:

• A fixed heat element. The element is not adjustable. There is no thermostat to wind up and no setting that produces a hotter surface, so the ceiling cannot be defeated by a well-meaning user.
• Glycol fill. The rails are filled with glycol rather than water. Glycol distributes heat evenly along the full length of every tube, so there are no hot spots near the element and no cold sections at the far end.
• 25mm flat-top tubes. The wide horizontal tubes spread the heat across a larger surface, which is how the rail delivers a useful output while staying at 43°C.

Sealed system: what it means for maintenance

These are sealed units. They are not plumbed into the heating circuit and they are not filled on site. That has three knock-on effects worth knowing before you specify one:

• No leaks or bursts. There is no pressurised connection to a wet system and nothing to fail at a joint.
• No annual servicing. Unlike a wet system component, there is nothing to bleed, balance or inhibit.
• No annual certification requirement for landlords. This is the one that tends to swing the decision on rented and managed stock. A sealed electric rail does not fall into the gas safety regime and does not need the yearly paperwork a wet system does.

Wiring is minimal, which keeps the installation cost closer to a fan than a radiator.

Heat output: choosing the right size

Output scales with the size of the rail. The figures below are for the AKW multirail range:

As a rough guide, a typical 2m x 2m bathroom with average insulation needs somewhere around 1,500 to 2,000 BTU/hr to heat comfortably. A small cloakroom will be well served by the 800 x 300mm. If the room is the only heated space or has a lot of external wall, size up rather than down.

The 800mm-high models carry two towel slots; the 1200mm models carry more, which matters more than the output figure if the rail is the main towel drying point for a family.

Straight or curved?

Straight rails sit flat against the wall and give the cleanest line. Curved rails bow slightly outward, which holds towels away from the wall so air can circulate behind them, and makes them easier to lift off one-handed.

Curved is the better choice where the rail is doing real towel-drying work. Straight is the better choice where wall space is tight or the rail sits next to a door or screen.

Choosing a finish

Chrome and white are both available across the range. Chrome suits a contemporary bathroom and matches most brassware; white disappears against a white wall and is the usual choice in commercial and care specifications where the rail should not draw the eye.

Worth knowing: chrome is a slightly less efficient radiating surface than painted white, though on a fixed-output electric element the difference shows up in cost rather than performance — the chrome models sit a little higher in price.

The range at Essential Bathrooms

We stock the full AKW LST multirail range:

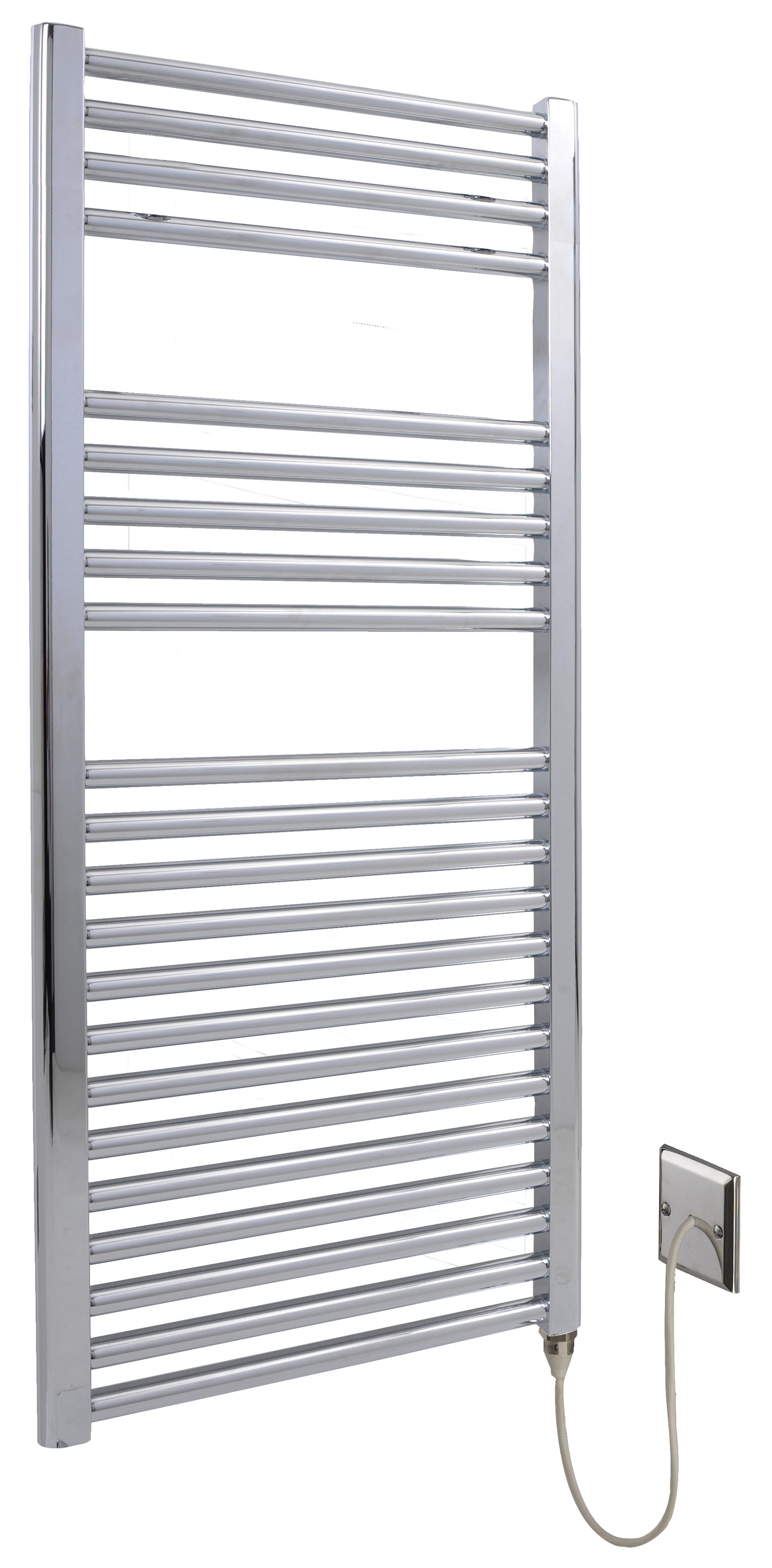

• AKW LST Straight Multirail Towel Warmer — Chrome, in four sizes from 800 x 300mm to 1200 x 500mm
• AKW LST Straight Multirail Towel Warmer — White, same four sizes
• AKW LST Curved Multirail Towel Warmer — Chrome, 800 x 500mm and 1200 x 500mm
• AKW LST Curved Multirail Towel Warmer — White, same two sizes
• AKW LST Straight Towel Warmer — Chrome, 252-400W, a lower-wattage series and the only part of the range that goes up to 1600mm tall

Every model carries a 10 year warranty on the rail and 2 years on the element, and every one can be run through a timer so it only draws power when the room is in use.

Lead times

The LST range is made to order rather than held in stock. Typical lead time is 5 to 10 working days, confirmed at the point of order. Worth factoring into a project programme, particularly if the rail is going in before tiling.

Where LST makes sense

• Care and supported living. The specification writes itself — no risk assessment, no guard to maintain.
• Rented and managed housing. No annual certification, no callouts to bleed a rail, and nothing a tenant can turn up too far.
• Schools, nurseries and public washrooms. High traffic, unsupervised use, and a duty of care that a guarded radiator satisfies less cleanly.
• Family bathrooms. Toddlers use radiators to pull themselves upright. A 43°C surface removes the issue entirely.

Not sure which size?

Send us the room dimensions and we will work the output back for you. You can browse the full range in Electric Towel Radiators and Heating, or see everything we carry from the manufacturer in the AKW collection.
