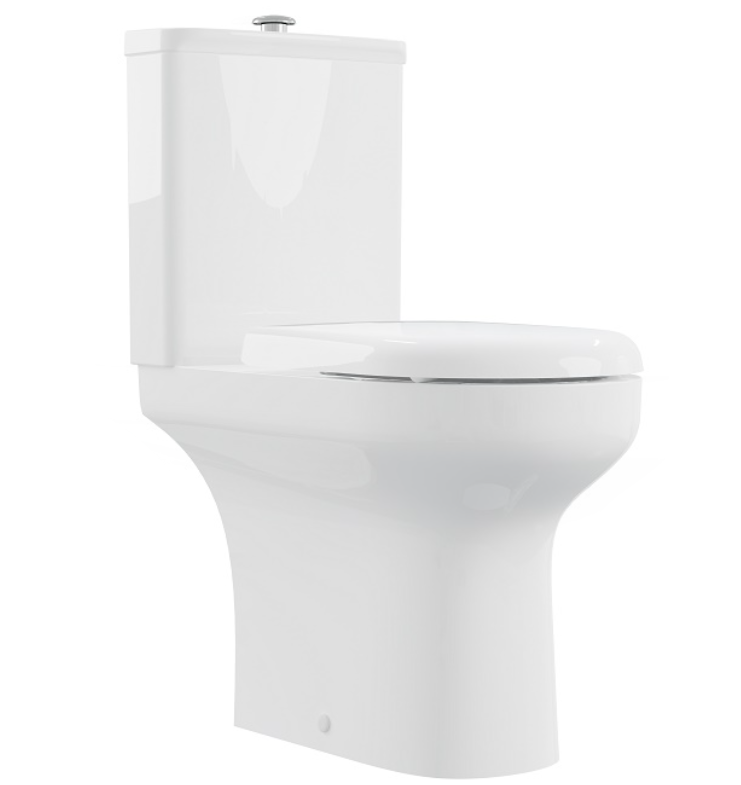

AKW Navlin Raised Height Close Coupled 650mm WC Suite, Push Button (28323PB)
AKW Navlin Raised Height Close Coupled 650mm WC Suite, Push Button (28323PB)

AKW Navlin Raised Height Close Coupled 650mm WC Suite, Push Button (28323PB)

by AKW
Save 50% Save 50%
£900.00
£900.00 - £900.00
£900.00
£450.00
£450.00 - £450.00
£450.00

AKW Navlin Raised Height Close Coupled 650mm WC Suite, Push Button (28323PB)

A complete, ready-to-fit raised-height close-coupled WC from the AKW Navlin sanitaryware range, combining a rimless Doc M-height toilet pan with a compact 650mm projection, a push-button cistern and an ergonomic soft-close seat, in white vitreous china. The 480mm seat height (measured with the seat affixed) meets Doc M / Part M guidance, making it easier for less mobile users to lower and rise, while the wider pan footprint aids stability during side transfers.

Key features

  • Rimless toilet pan - 465mm high, the direct-flushing rimless design removes the hidden areas where bacteria gather, improving hygiene and making cleaning quicker and easier
  • Complete suite - Doc M close-coupled pan, push-button cistern and ergonomic soft-close seat supplied together
  • Doc M raised height - 480mm seat height (with seat affixed) complies with Doc M / Part M guidance for accessible washrooms
  • Compact 650mm projection - close-coupled format that suits tighter spaces while still aiding side transfer
  • Wider pan footprint - added stability when transferring to and from a wheelchair
  • Push button flush - easy to operate by hand, closed fist or elbow, with 3/6 litre dual flush
  • Strong and stable - BS EN 997 approved pan supports up to 60st (400kg)
  • Ergonomic seat included - white ergonomic soft-close seat and lid, shaped for comfort with seat lugs for stability during side transfer
  • Water-regulations compliant - top-fill inlet valve with air gap and overflow set 300mm above the pan rim

In the box

  • Raised-height (Doc M) close coupled toilet pan, 650mm projection
  • Cistern with push button flush (
  • White ergonomic soft-close toilet seat with lid (23122)

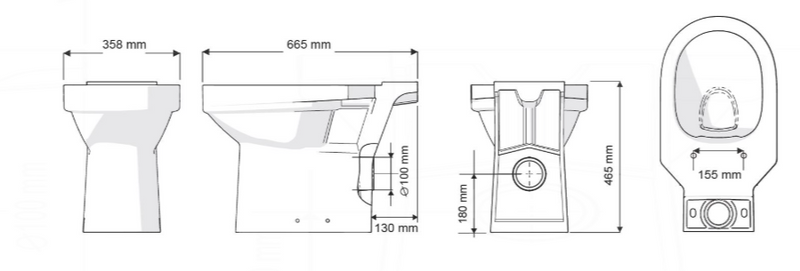

Dimensions & specifications

  • Pan Inc Seat height: 480mm (Doc M / Part M, with seat affixed)
  • Pan only height: 465mm
  • Pan width: 455mm
  • Pan projection: 650mm
  • Overall height (to cistern top): approx. 879mm
  • Flush: Push button (3/6 litre dual flush)
  • Seat: White ergonomic soft-close with lid (included)
  • Material: Vitreous china
  • Colour: White

Warranty

  • Lifetime warranty on pan, cistern and seat
  • 10-year warranty on flush fittings
