AKW Navlin Raised Height Low Level WC Suite, Push Button (28322PB)

AKW Navlin Raised Height Low Level WC Suite, Push Button (28322PB)

A complete, ready-to-fit low level WC from the AKW Navlin Doc M sanitaryware range, supplied with the toilet seat included. It pairs a rimless, raised-height back-to-wall toilet pan with a low level cistern with raised push button flush, flush pipe and a white ergonomic soft-close seat, all in white vitreous china.

Key features

• Complete suite with seat - Doc M raised-height back-to-wall pan, push button cistern, flush pipe and white ergonomic toilet seat supplied together
• Rimless toilet pan - the direct-flushing rimless design removes the hidden areas where bacteria gather, improving hygiene and making cleaning quicker and easier
• 480mm raised height - height with seat affixed complies with Doc M guidelines
• Water-efficient dual flush - 6 litre full flush and 4 litre reduced flush
• Raised push button flush - a raised button is easier to locate and press
• Ergonomic seat included - shaped for comfort and easy cleaning, with seat lugs, soft-close hinges and support up to 47st (300kg)
• Strong and stable - pan supports up to 60st (400kg)
• Safer by design - rounded edges and corners help reduce the risk of injury
• Easy installation - horizontal outlet waste connection for straightforward fitting and maintenance

In the box

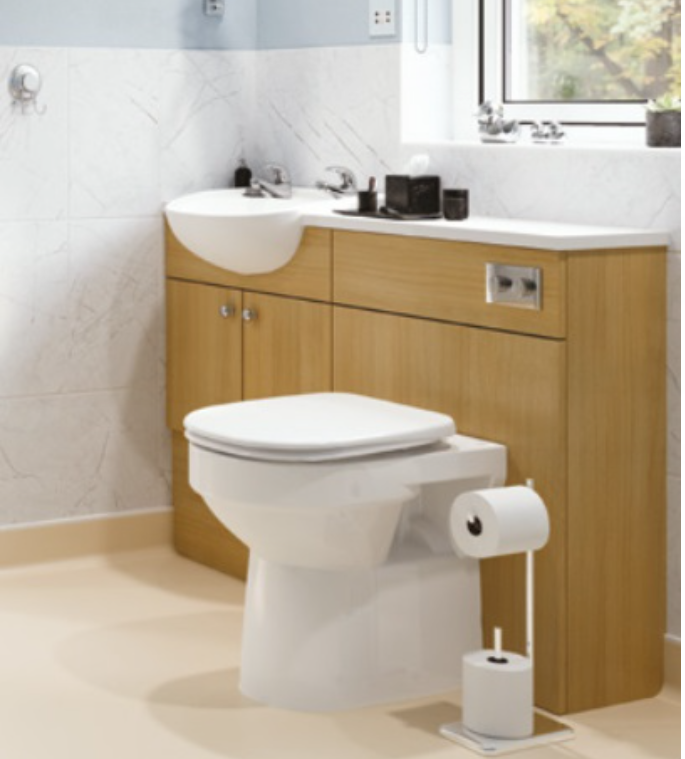

• 1 x Navlin Doc M raised-height back-to-wall toilet pan

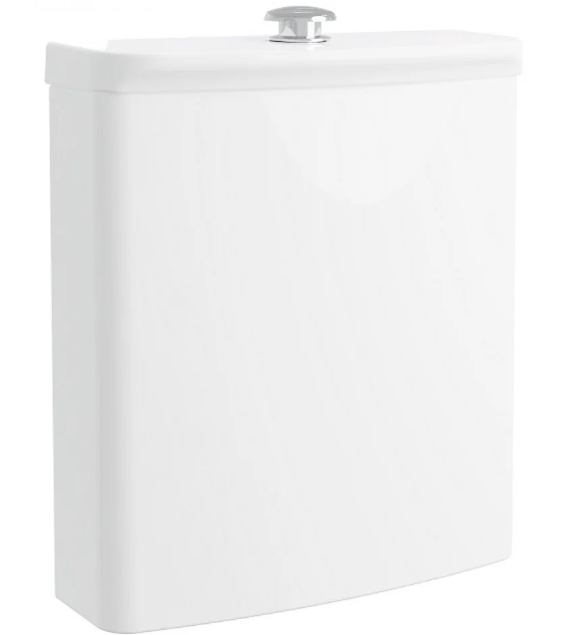

• 1 x Navlin cistern with raised push button flush
• 1 x Toilet cistern flush pipe
• 1 x Low level flush mechanism outlet
• 1 x White ergonomic toilet seat with lid

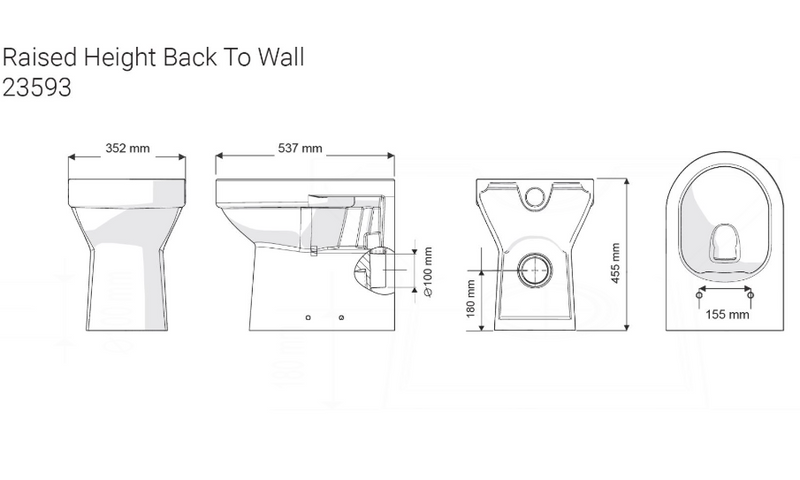

Dimensions & specifications

• Seat height: 480mm (Doc M / Part M)
• Pan type: Back to wall, rimless
• Flush: Low level, raised push button (6 litre full / 4 litre reduced)
• Seat: White ergonomic with lid (included)
• Material: Vitreous china
• Colour: White

Warranty

• Lifetime warranty on pan, cistern and seat
• 10-year warranty on flush fittings

Navlin WC suite range

• Raised height low level (lever) - 28322
• Raised height low level (push button) - 28322PB
• Raised height CC 650mm (lever) - 28323
• Raised height CC 650mm (push button) - 28323PB
• Raised height CC 750mm (lever) - 28324
• Raised height CC 750mm (push button) - 28324PB
• Comfort height CC - 28325
• Standard height CC - 28327
• Standard height low level (push button) - 28326
• Standard height low level (lever) - 28337
• Standard height low level (lever, PP seat) - 28407
