AKW Braddan Shower Tray with Upward Pumped Waste (All Sizes)
AKW stock items ordered before 2pm are dispatched the same working day for next working day delivery. Stock availability is confirmed at the point of order.
The AKW Braddan shower tray with upward pumped waste is a 40mm low-profile, level-access shower tray with a slip-resistant surface and a factory-fitted AKW upward discharge waste. It's designed for installations where water can't drain away by gravity — such as solid floors that can't be broken into for a gravity drain — and comes in 24 sizes from 800x800mm to 1800x900mm.
Have natural fall to the drain? The AKW Braddan shower tray with GW50 gravity waste may be all you need.
Features & Benefits
- Only 40mm high — a low-profile tray that can create a full level-access, surface-mounted or step-in shower (full level access is not possible on a concrete floor)
- Suitable for all floor types — wooden, concrete or screeded
- Quick draining thanks to a 35mm fall to a central waste
- Slip-resistant surface finish for safer footing
- Integral added strength — made from GRP, except the 1200x700, 1200x820, 1300x700, 1420x700, 1700x700 and 1800x700 sizes, which are SMC
- Maximum user weight 190kg (30 stone)
- Non-handed — fits left or right, suitable for corner and alcove installations
- No need for under-tray foaming
- 3 tiling upstands supplied with every tray for a watertight seal between the tray and tiles
- 1800mm trays come with a trim-to-length kit and can be cut down to 1500mm to fit an alcove
- Upward discharge waste factory fitted by AKW
- Pipe duct kits and ramp kits are available from AKW
- Backed by AKW's lifetime warranty (applies to first-time installations fitted to AKW's instructions; excludes normal wear and tear)
Braddan Pumped Waste Sizes & Product Codes
Every size below is AKW's dedicated upward pumped waste code, with the waste factory fitted. Select your size from the dropdown above.
| Size | AKW Code | Notes |
|---|---|---|

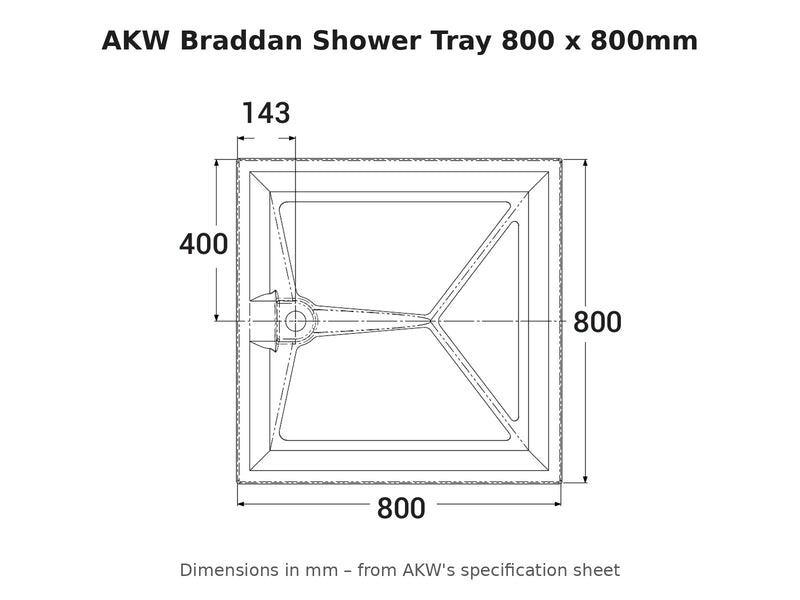

| 800x800mm | 16523 | |

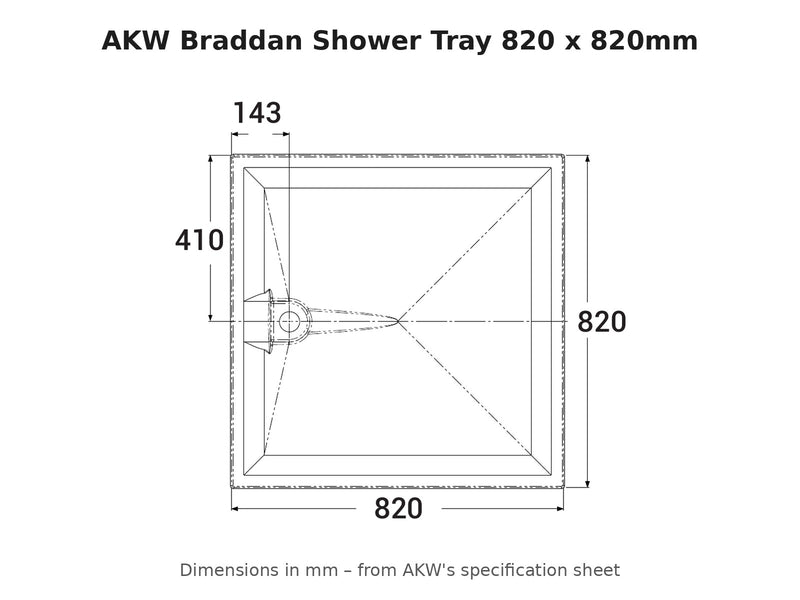

| 820x820mm | 16471 | |

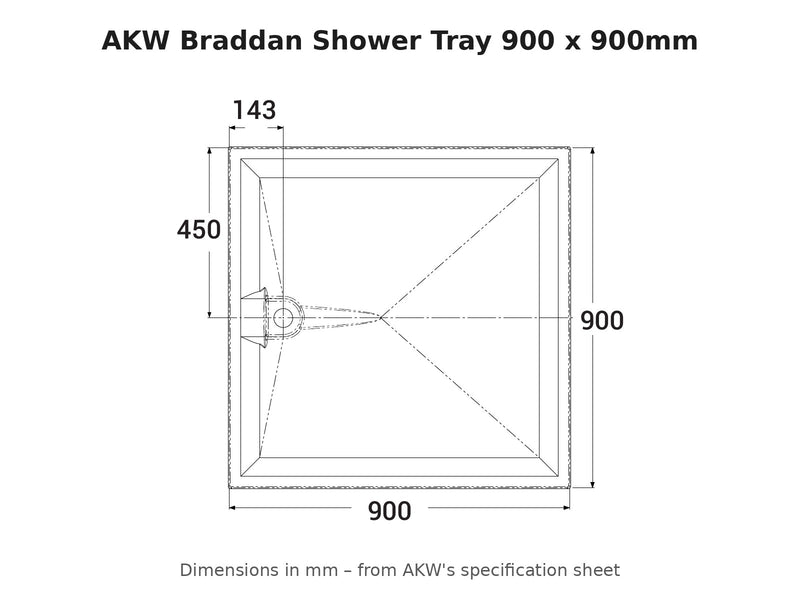

| 900x900mm | 16473 | |

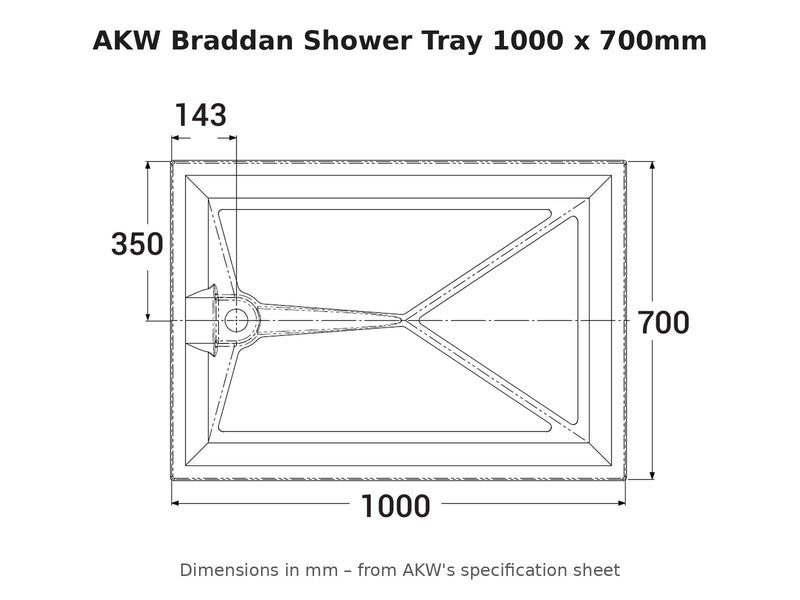

| 1000x700mm | 16083 | |

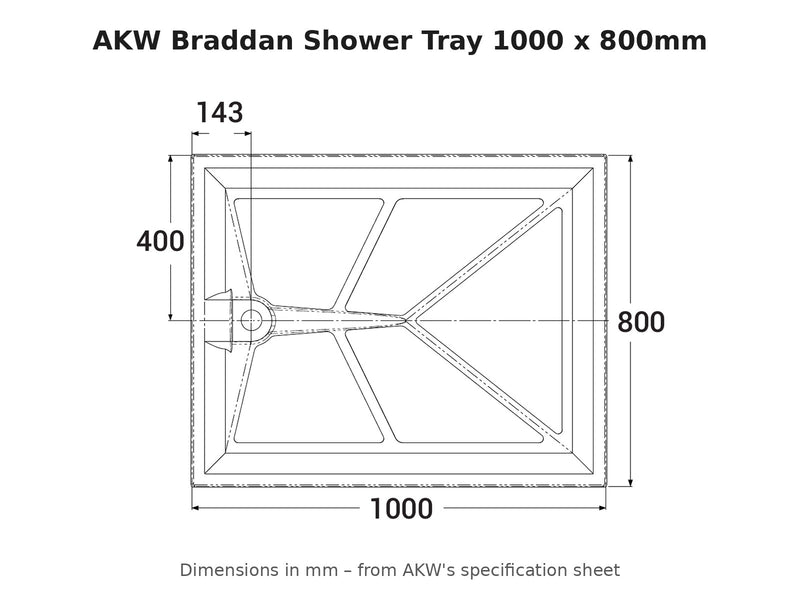

| 1000x800mm | 16529 | |

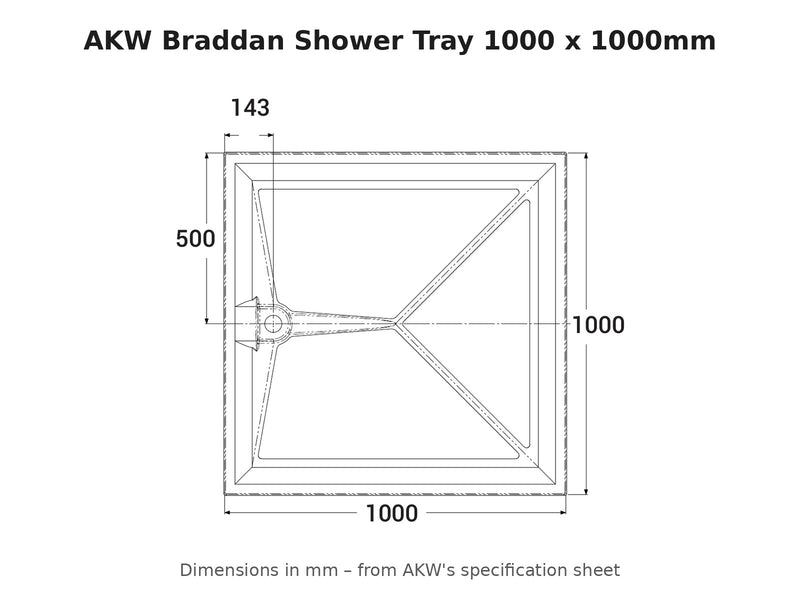

| 1000x1000mm | 16168 | |

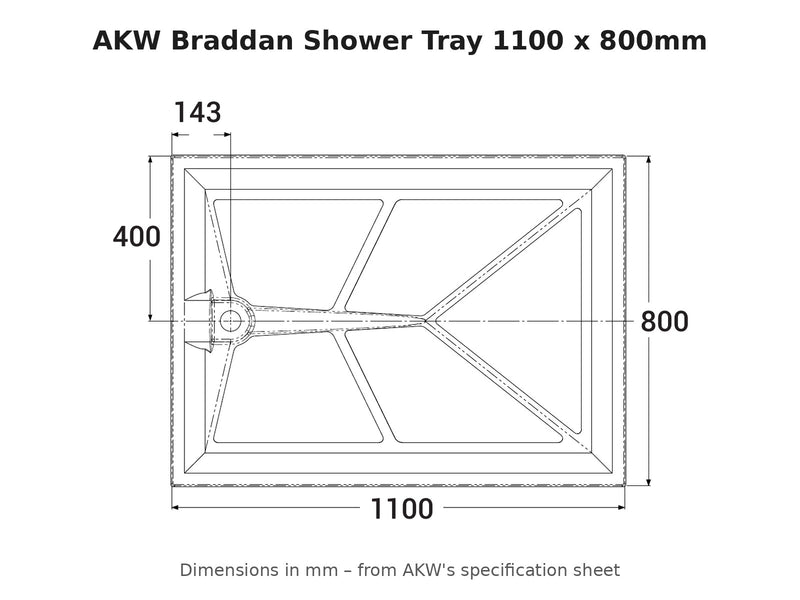

| 1100x800mm | 16197 | |

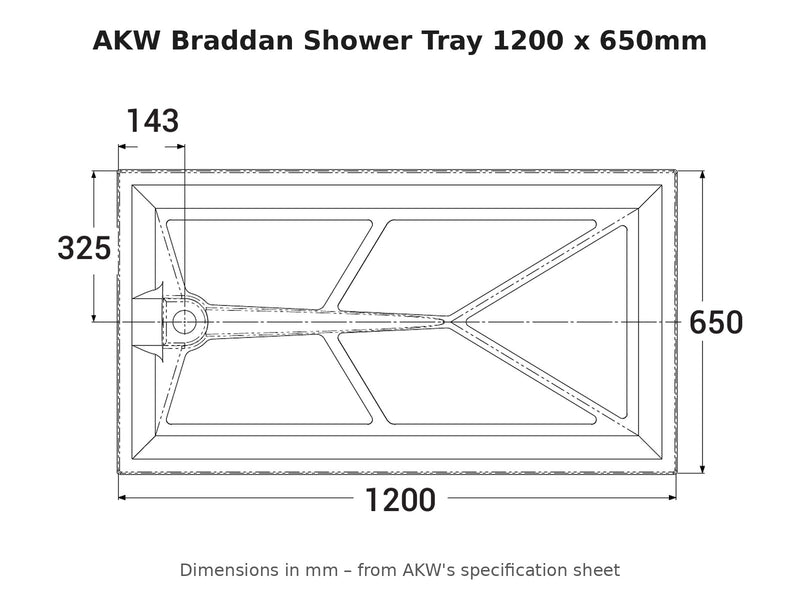

| 1200x650mm | 16361 | |

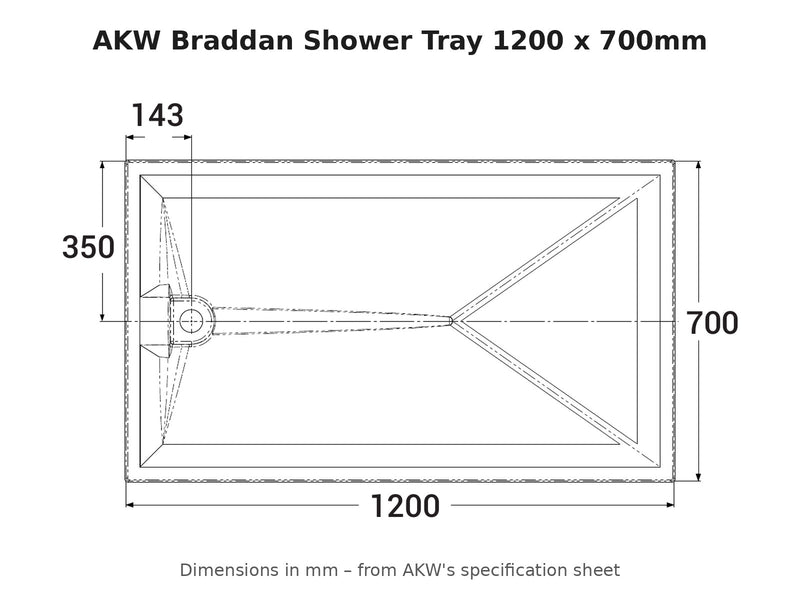

| 1200x700mm | 16090 | |

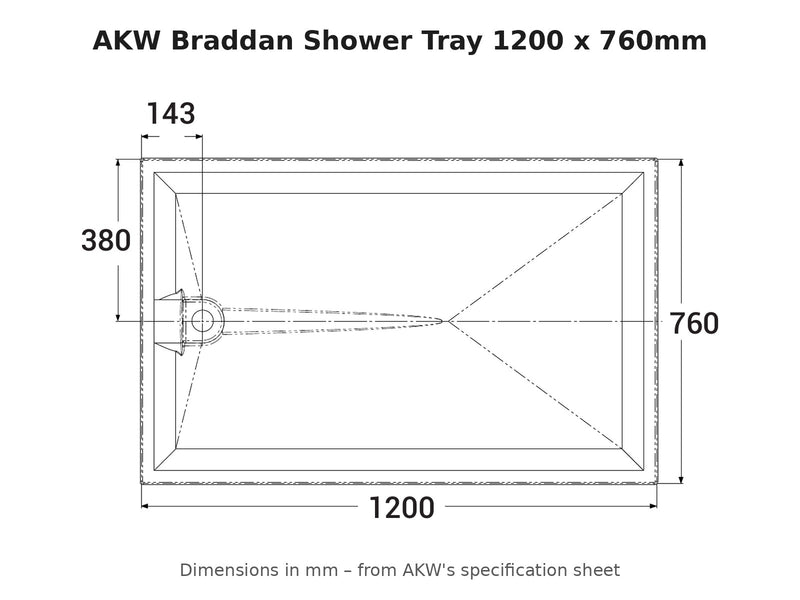

| 1200x760mm | 16175 | Not suitable for standard screens when fitted with a pipe duct kit |

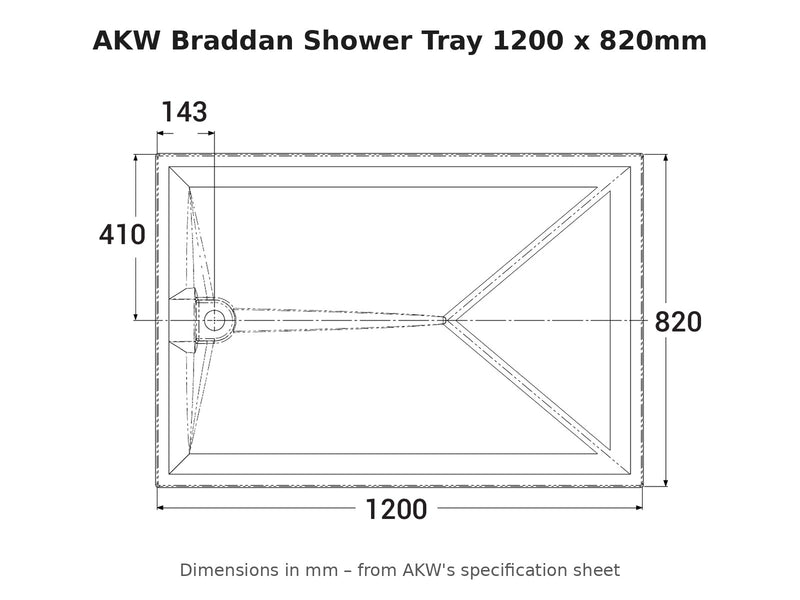

| 1200x820mm | 16135 | |

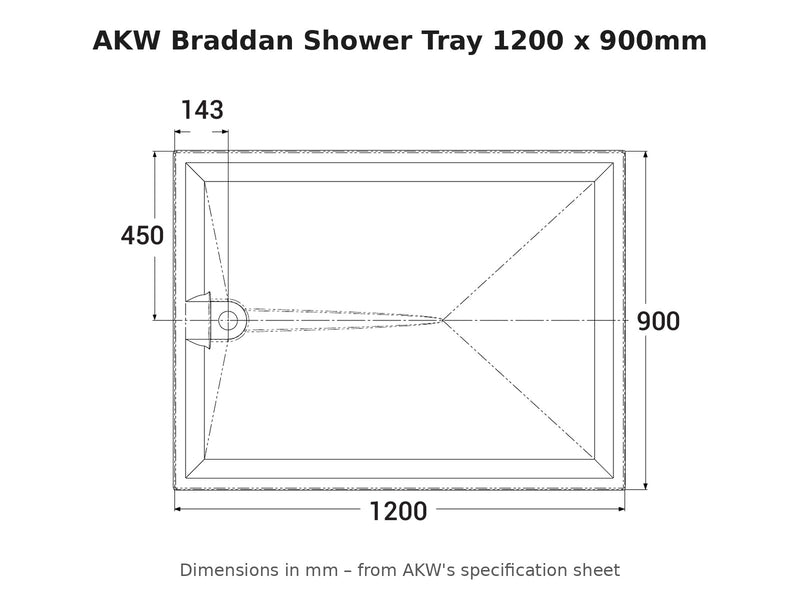

| 1200x900mm | 16521 | |

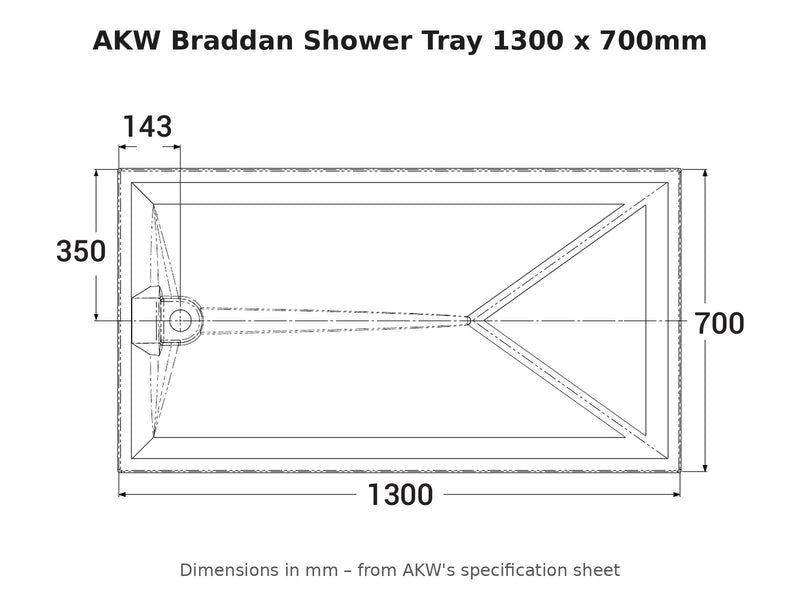

| 1300x700mm | 16100 | |

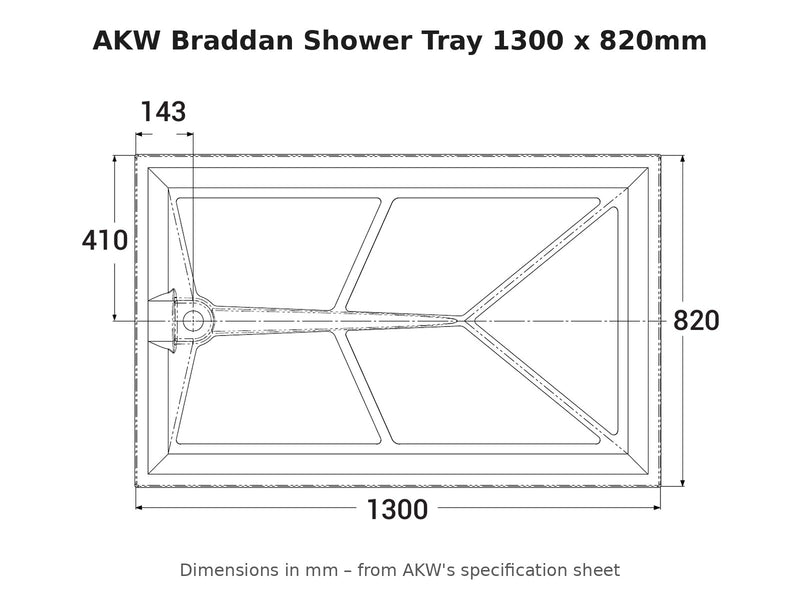

| 1300x820mm | 16141 | |

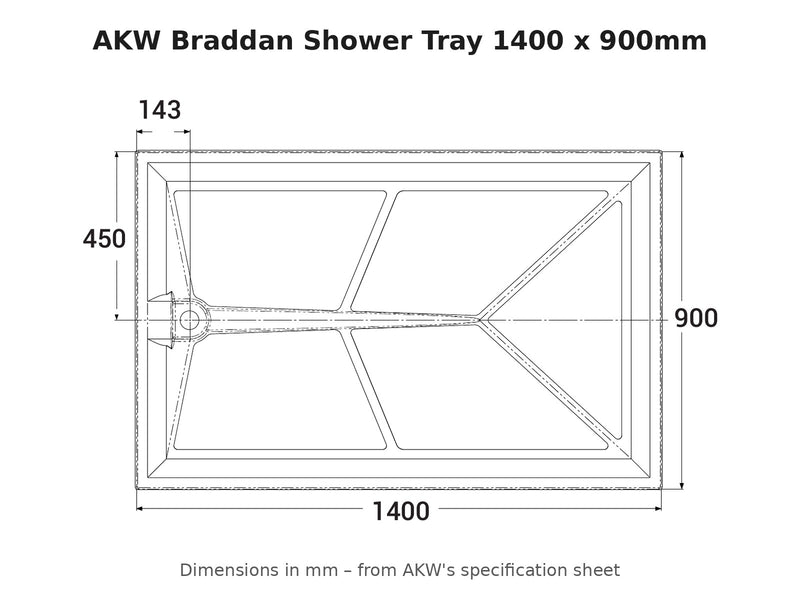

| 1400x900mm | 16082 | |

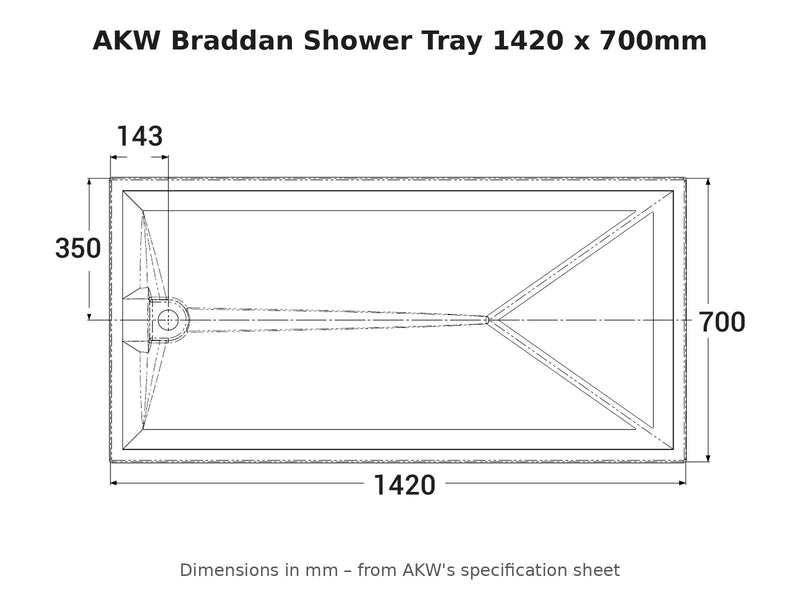

| 1420x700mm | 16109 | |

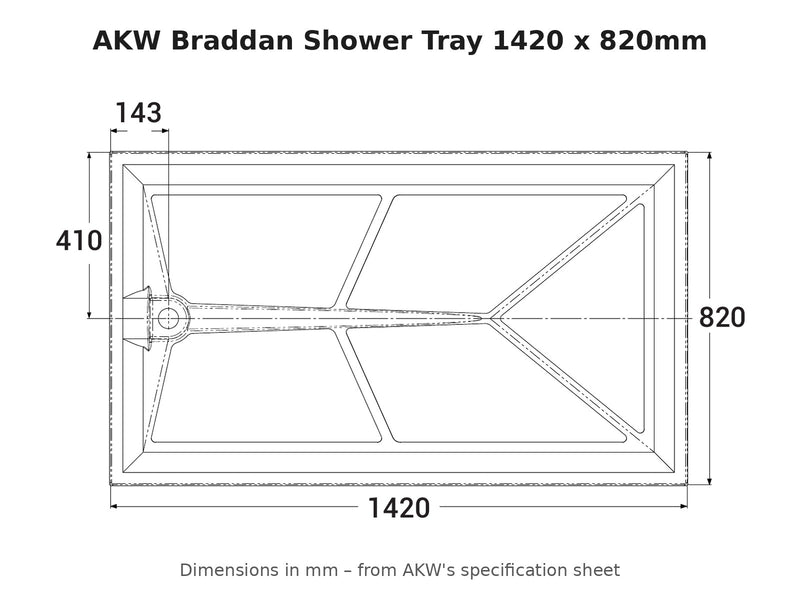

| 1420x820mm | 16150 | |

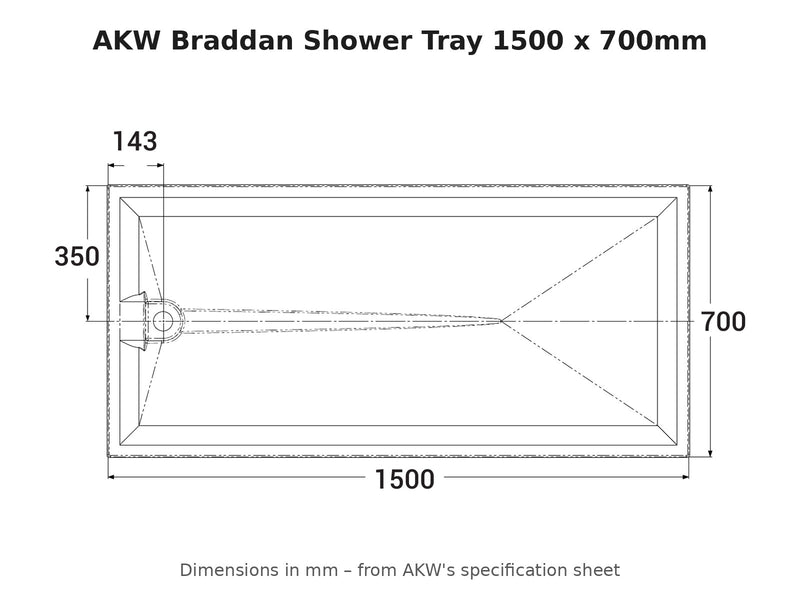

| 1500x700mm | 16496 | |

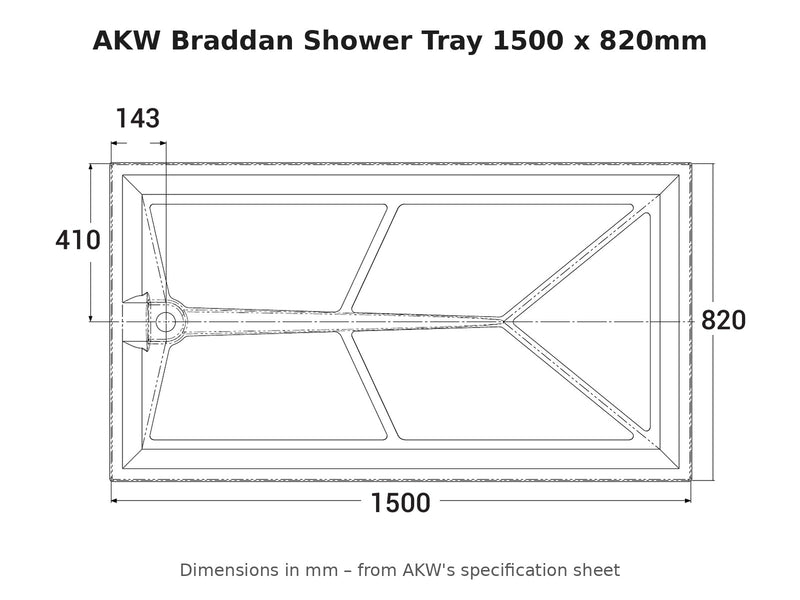

| 1500x820mm | 16532 | |

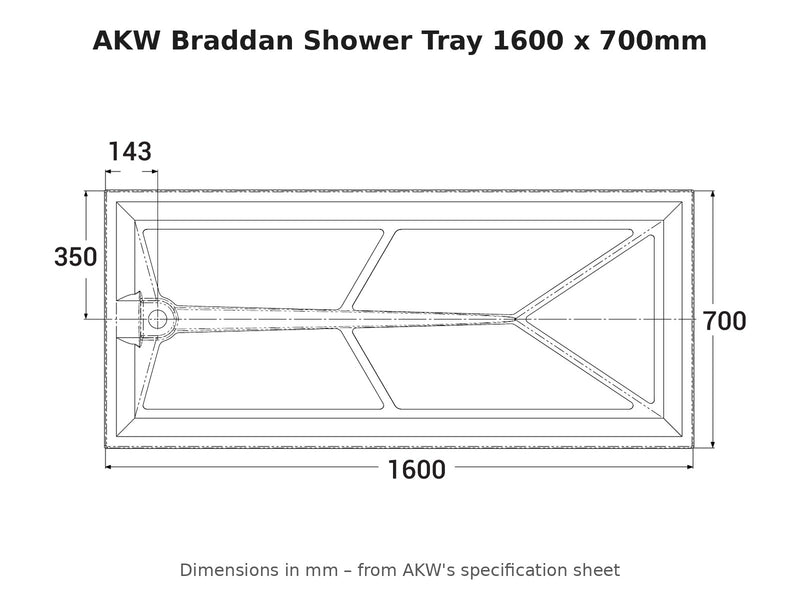

| 1600x700mm | 16443 | |

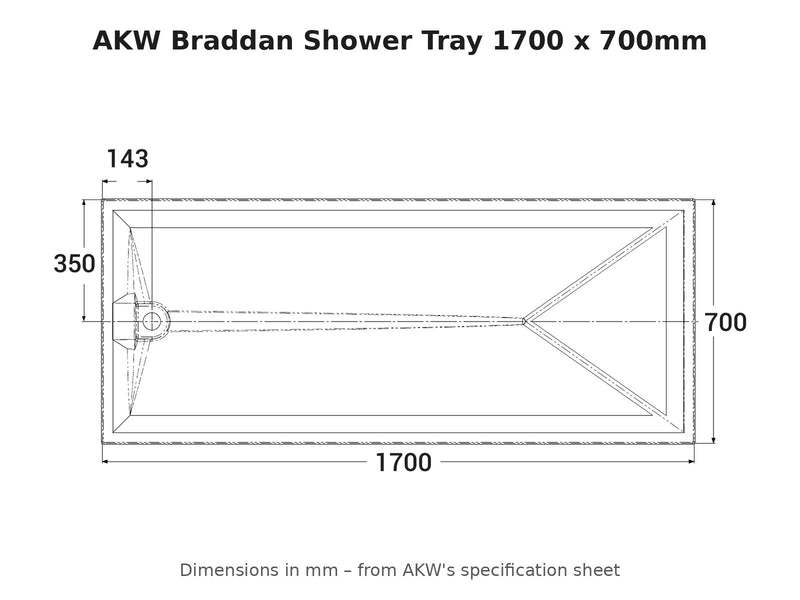

| 1700x700mm | 16121 | |

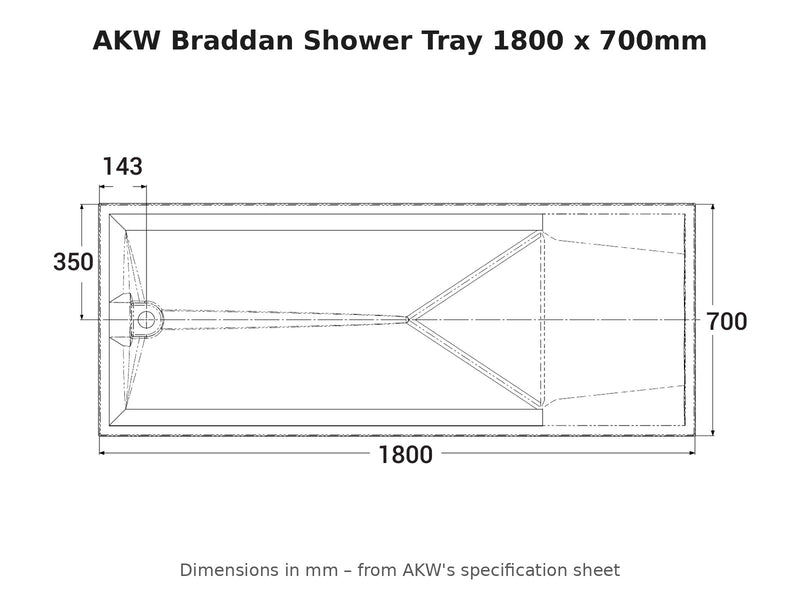

| 1800x700mm | 16129 | Trim-to-length kit included (can be cut to 1500mm) |

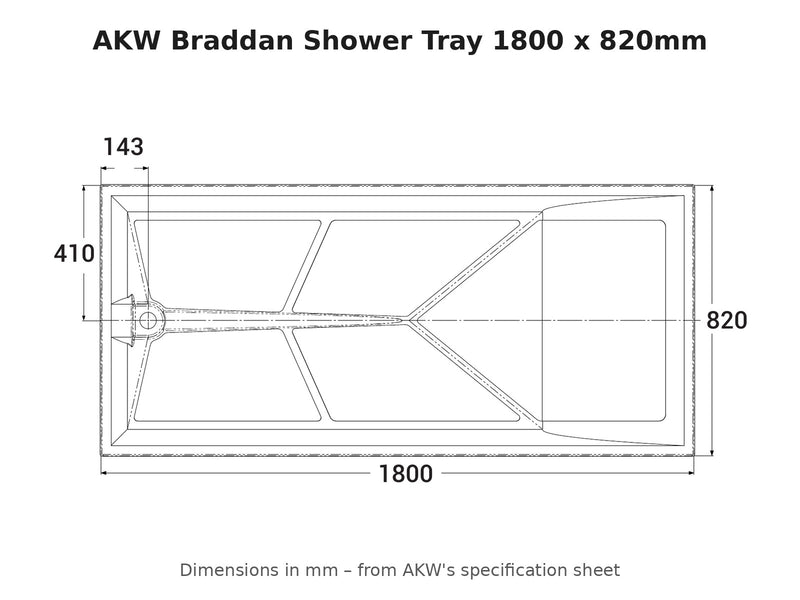

| 1800x820mm | 16161 | Trim-to-length kit included (can be cut to 1500mm) |

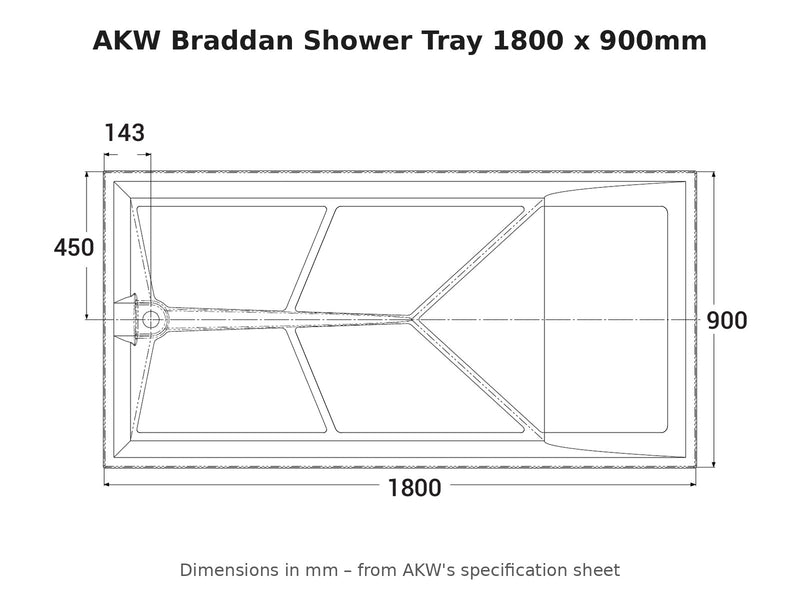

| 1800x900mm | 16120 | Trim-to-length kit included (can be cut to 1500mm) |
Technical Downloads
- AKW Braddan Shower Tray – Specification Sheet (PDF) — dimensions, product codes and compatible screens for each size
- AKW Braddan Shower Tray – Installation Instructions (PDF)
Matching Shower Screens
AKW make half-height and full-height screens to suit the Braddan in most sizes. Compatible screens vary by tray size — the specification sheet lists them size by size.
- AKW standard (PET) shower screens — lightweight, shatterproof and half-height
- AKW Silverdale shower screens — toughened glass
Not sure which to choose? Read our AKW shower screens buying guide.
Frequently Asked Questions
What is an upward pumped waste shower tray?
It's a shower tray whose waste discharges upwards so the water can be pumped away, rather than relying on a gravity fall to the drain. On this Braddan the upward discharge waste is factory fitted by AKW.
Do I need a shower pump with this tray?
The waste is designed for pumped drainage. Contact us before ordering and we'll help you confirm the right pump set-up for your installation.
How high is the AKW Braddan shower tray?
Only 40mm high, so it can be installed as a level-access, surface-mounted or step-in tray. Full level access is not possible on a concrete floor.
Can I cut the Braddan tray to size?
Only the 1800mm trays — they come with a trim-to-length kit and can be cut down to 1500mm to fit an alcove.
For more help choosing, read our complete AKW Braddan shower tray buying guide. Need advice on size or drainage? Our team is happy to help.
