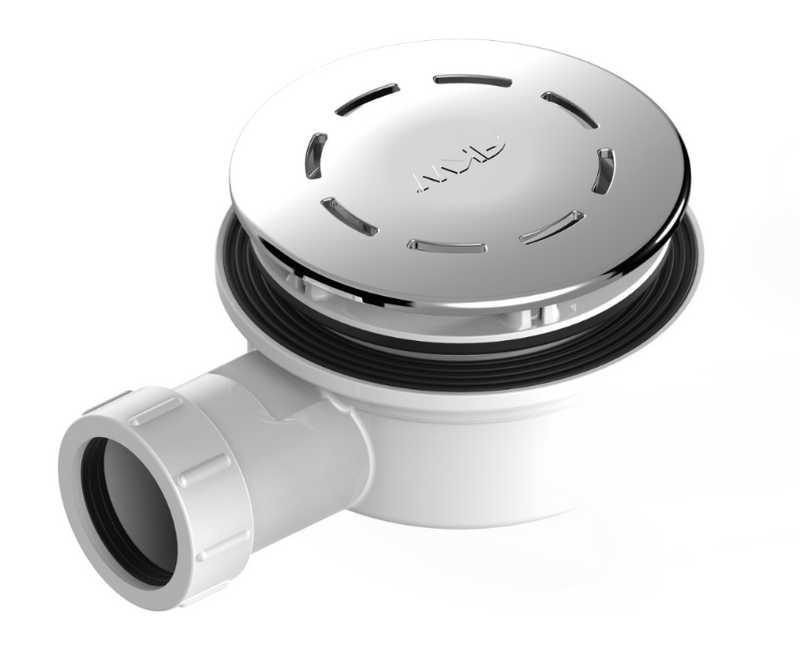

AKW DW90 Low Height Dry Waste with Domed Cover & 90mm Waste Adaptor (25438)

AKW DW90 Low Height Dry Waste with Domed Cover & 90mm Waste Adaptor (25438)

A bundle pairing the DW90 low height dry shower waste with domed cover and the 90mm waste adaptor. The DW90's dry-trap design uses a non-return valve instead of a water seal, so it can't dry out with sporadic use – and its very shallow 48mm depth makes it ideal for solid floors and shallow joists where a conventional trap won't fit.

Key Features:

• 90mm diameter – suits trays with a Ø90mm waste hole
• Very shallow 48mm depth for solid floors or shallow joists
• Non-return valve prevents odour backflow; trap will not dry out with sporadic use
• Universal pipe fitment – push-fit and solvent weld adaptors included
• Top access for easy cleaning
• High flow rate: 27 litres per minute (15mm head, 1m of pipe)
• Meets BS EN 274 Part 2:2002; guaranteed for life
• 90mm waste adaptor supplied in this bundle

Available options:

• DW90 Dry Waste with Domed Cover & 90mm Adaptor · 25438

Technical Downloads

AKW DW90 Low Depth Dry Shower Waste – Specification Sheet (PDF)
