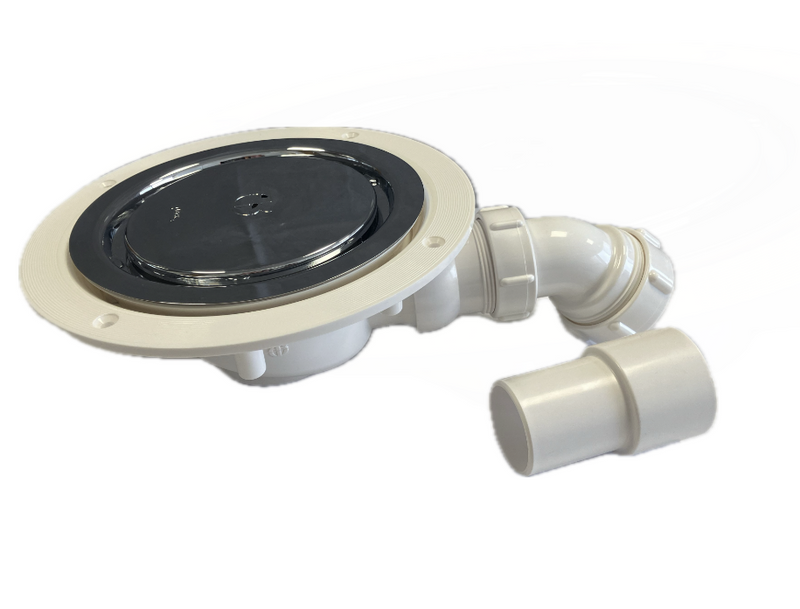

AKW Low Depth GW90 Waste with Tuff Form Adaptor (25435)

Product Code: 25435

The AKW Low Depth GW90 Gravity Waste with Tuff Form Adaptor is a standard gravity waste solution designed for use with Mullen, Low Profile and Sulby 2 shower trays on wooden floor installations, and compatible with AKW Tuff Form formers via the included adaptor.

Key Features:

• 50mm Deep Water Trap: Prevents bad odour backflow for a hygienic installation.
• 90mm Threaded Waste Fitting: Allows for easy shower tray installation.
• Built-in Strainer: Catches hair and debris which can be removed for easy cleaning.
• Ideal for Wooden Floors: 90mm depth below tray, gravity waste particularly ideal for Mullen, Low Profile or Sulby 2 shower trays on wooden floor installations.
• 90mm Diameter: Suitable for Ø 90mm waste trays, compatible with the Sulby 2, Low Profile and Mullen shower trays.
• Easy Maintenance: Opens for easy cleaning and rodding, with top access for cleaning purposes.
• Non Return Valve: Prevents bad odour backflow for a hygienic and reliable installation.
• Low Maintenance: Reliable operation provides peace of mind throughout its lifetime.
• Standard Gravity Waste Construction: Overall depth of 110mm.

Product Contents:

• 1 x Low Depth GW90 Gravity Waste

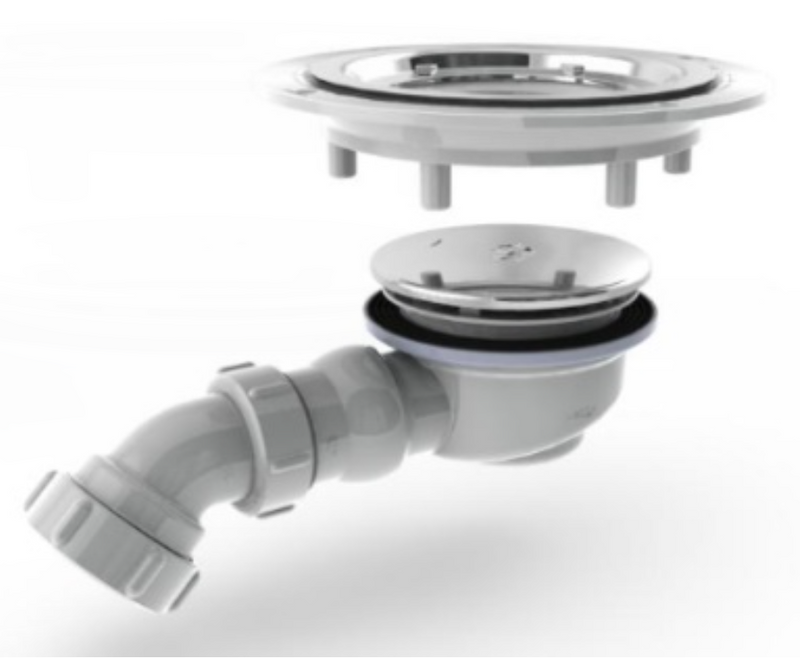

• 1 x Low Depth GW90 Waste Tuff Form Adaptor (waste not included)

Product Specifications:

• Low Depth GW90 Waste with Tuff Form Adaptor
• 50mm deep water trap
• 90mm diameter, suitable for Ø 90mm waste trays
• Depth below tray: 90mm
• Overall depth: 110mm
• Top access for easy cleaning
• Part Number: 25435
