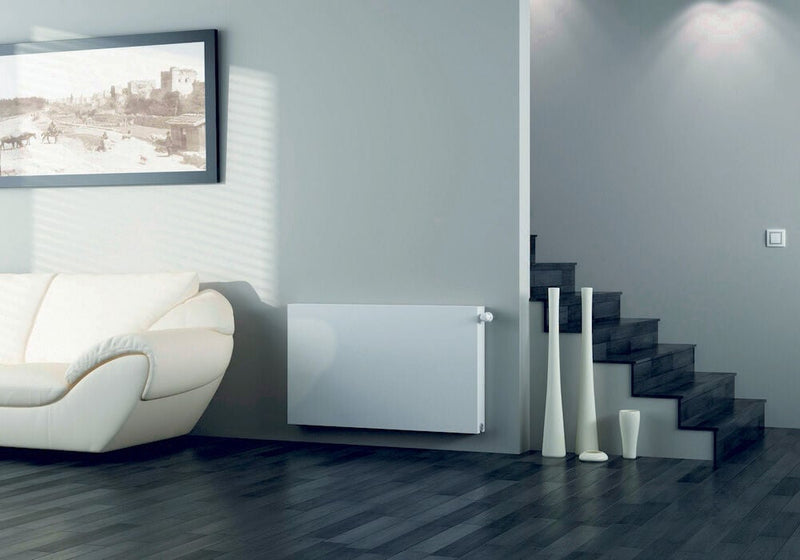

Kartell K-Flat Kompact Type 22 Horizontal Radiator - White Gloss

Kartell K-Flat Kompact Type 22 Horizontal Radiator - White Gloss

The Kartell K-Flat Kompact swaps the ribbed front of a traditional panel radiator for a completely flat fascia, giving you the clean, minimal look of a designer radiator at a compact-radiator price. This Type 22 version pairs double panels with twin rows of convector fins for serious heat output – the go-to choice for living rooms, open-plan spaces and larger rooms. Available in an exceptional 22 sizes across 400mm, 500mm and 600mm heights.

Key features

• Completely flat panel design – a smooth, seamless fascia for a clean, contemporary look.
• Type 22 construction – double panels with a double row of convector fins, complete with top grille and side panels.
• Outstanding heat output – up to 14379 BTU (ΔT 60°C) from the largest size.
• White gloss finish – classic RAL 9016 white enamel that suits every scheme.
• Suitable for central heating – connects to your existing central-heating system for reliable, efficient warmth.
• 22 sizes available – 400mm, 500mm and 600mm heights in widths from 400mm to 2000mm.
• Compact 105mm depth – exceptional output from a neat double-panel profile.
• Complete fixing kit included – supplied with brackets, bolts, vents and plugs, with four fixing points and ½" tappings.
• Valves sold separately – choose your preferred radiator valves to complete the installation.
• Durable mild steel construction – built to last with a hard-wearing enamel finish.
• 10-year manufacturer's guarantee – for complete peace of mind.

Available sizes

• 400 x 600mm · 3133 BTU @ ΔT 60°C · KD406F
• 400 x 800mm · 4178 BTU @ ΔT 60°C · KD408F
• 400 x 1000mm · 5222 BTU @ ΔT 60°C · KD410F
• 400 x 1200mm · 6266 BTU @ ΔT 60°C · KD412F
• 400 x 1400mm · 7311 BTU @ ΔT 60°C · KD414F
• 400 x 1600mm · 8355 BTU @ ΔT 60°C · KD416F
• 500 x 400mm · 2499 BTU @ ΔT 60°C · KD504F
• 500 x 600mm · 3748 BTU @ ΔT 60°C · KD506F
• 500 x 800mm · 4997 BTU @ ΔT 60°C · KD508F
• 500 x 1000mm · 6247 BTU @ ΔT 60°C · KD510F
• 500 x 1200mm · 7496 BTU @ ΔT 60°C · KD512F
• 500 x 1400mm · 8746 BTU @ ΔT 60°C · KD514F
• 500 x 1600mm · 9995 BTU @ ΔT 60°C · KD516F
• 600 x 400mm · 2876 BTU @ ΔT 60°C · KD604F
• 600 x 600mm · 4314 BTU @ ΔT 60°C · KD606F
• 600 x 800mm · 5752 BTU @ ΔT 60°C · KD608F
• 600 x 1000mm · 7190 BTU @ ΔT 60°C · KD610F
• 600 x 1200mm · 8627 BTU @ ΔT 60°C · KD612F
• 600 x 1400mm · 10065 BTU @ ΔT 60°C · KD614F
• 600 x 1600mm · 11503 BTU @ ΔT 60°C · KD616F
• 600 x 1800mm · 12941 BTU @ ΔT 60°C · KD618F
• 600 x 2000mm · 14379 BTU @ ΔT 60°C · KD620F

Specifications

• Brand: Kartell K-VIT
• Range: K-Flat Kompact
• Type: Type 22 – double panel, double convector (central heating)
• Construction: Mild steel, completely flat fascia panel
• Colour: White
• Finish: White gloss enamel (RAL 9016)
• Orientation: Horizontal
• Depth: 105mm
• Wall-to-tapping centres: 82.5mm or 97.5mm
• Tappings: ½"
• Minimum installation height from floor: 100mm
• Mounting: Wall mounted, fixing kit included
• Guarantee: 10 years

Please note: radiator valves are required to complete installation and are sold separately.
