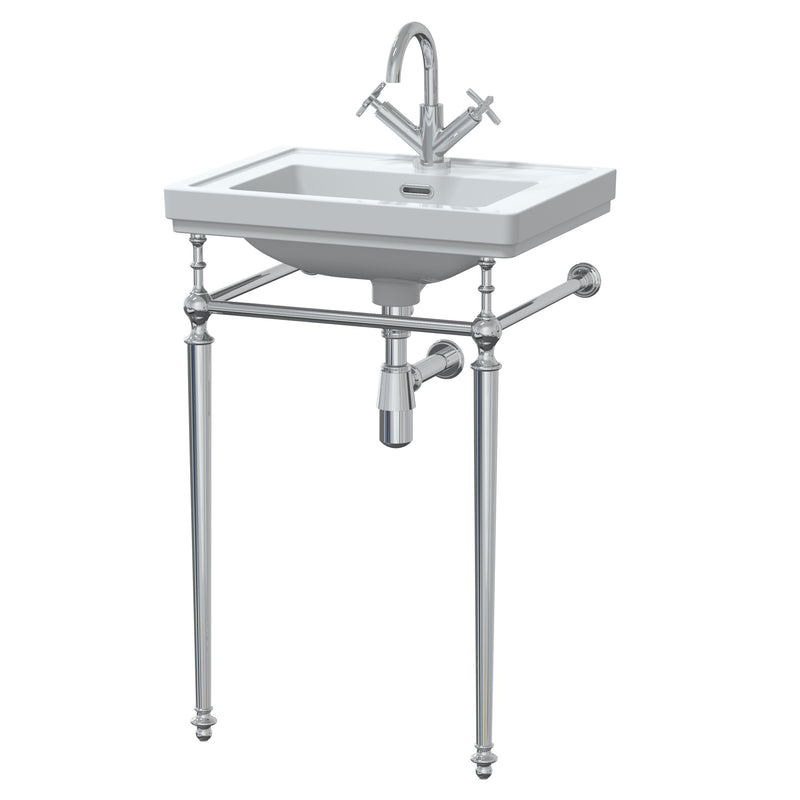

Nuie Carlton 530mm 1 Tap Hole Traditional Basin & Washstand (CLB502)

The Nuie Carlton 530mm 1 tap hole traditional basin and washstand sits on a slim metal washstand rather than a ceramic pedestal, leaving the frame open beneath so the basin appears to float above the floor. It is a distinctly Victorian look and a far lighter one than a full pedestal — the reason washstands remain the choice for period bathrooms where a solid ceramic column would dominate.

Unusually for a basin at this level, a chrome bottle trap is included — which matters here, because the pipework is on show beneath an open washstand rather than hidden inside a pedestal, and a standard plastic trap would spoil the effect. The rectangular bowl has a 136mm inner depth and a built-in overflow. This model is drilled with a single central tap hole for a mono basin mixer. A slotted waste is required and sold separately.

• 530mm traditional basin with open metal washstand
• Chrome bottle trap included — exposed pipework looks finished
• 1 tap hole — suits a mono basin mixer
• Rectangular bowl, 136mm inner depth
• Built-in overflow
• White vitreous china
• Slotted waste required — sold separately
• Supplied in three cartons (basin CBM502, stand NLA002, bottle trap EA370)
• Five-year manufacturer's guarantee

Product Details

Complete the Nuie Carlton range

You will need a slotted waste to complete this basin — browse our basin wastes. The same washstand basin is also available with no tap hole for wall mounted taps, or with three tap holes for a traditional three hole mixer. Co-ordinate with the Nuie Carlton ceramics range, including the low level, high level and close coupled suites.

Technical Downloads

• Datasheet – Nuie Carlton 530mm 1 Tap Hole Basin & Washstand (CLB502)
