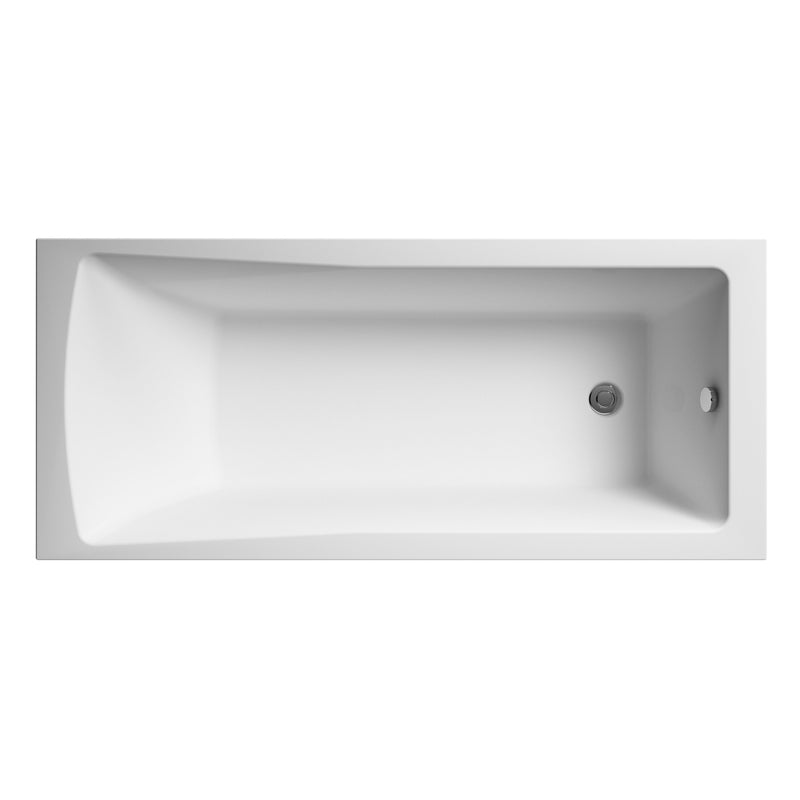

Nuie Linton Square Single Ended Bath (All Sizes)
The Nuie Linton Square Single Ended Bath is a clean-lined, square-edged acrylic bath built for everyday family bathrooms. Reinforced for rigidity and supplied with adjustable legs as standard, it installs against a single wall with the taps and waste at one end — the most popular layout for UK bathrooms. Build your bath exactly how you need it below: choose your size, add a matching acrylic front or front & end panel, and add an Easyclean push-button clicker waste in your choice of finish.
Key Features
- Square single ended acrylic bath with crisp, contemporary lines
- Reinforced base and body for a solid, stable feel underfoot
- Adjustable legs included as standard
- Six sizes from 1400mm to 1800mm
- Optional matching acrylic front & end panels for every size
- Optional Easyclean push-button clicker waste in four finishes
- Warm-to-touch acrylic that retains heat well
- 5-year manufacturer guarantee
Build Your Bath
Use the options above to configure your bath. Panels and the clicker waste are supplied to match the size you select. Acrylic panels can be trimmed down on site, so where a bath size falls between panel sizes the next size up is supplied to cut to fit — which means every size can be finished with a front, or a front & end, panel. (The 1400mm front uses the 1500mm panel; the 1700 x 750mm end uses the 800mm panel.)
Bath Sizes
| Size | Code | Capacity | GTIN |
|---|---|---|---|
| 1400 x 700mm | NBA404 | 148 L | 5056211800019 |
| 1500 x 700mm | NBA405 | 158 L | 5055369060122 |
| 1600 x 700mm | NBA407 | 168 L | 5055369006694 |
| 1700 x 700mm | NBA409 | 178 L | 5055369006700 |
| 1700 x 750mm | NBA410 | 200 L | 5055369006717 |
| 1800 x 800mm | NBA414 | 218 L | 5055369006724 |
Matching Acrylic Bath Panels
| Panel | Code | GTIN | Fits |
|---|---|---|---|
| 1500mm Front | PAN138 | 5055369060818 | 1500mm & 1400mm baths |
| 1600mm Front | PAN139 | 5055369060825 | 1600mm baths |
| 1700mm Front | PAN140 | 5055369060832 | 1700mm baths |
| 1800mm Front | PAN141 | 5055369060849 | 1800mm baths |
| 700mm End | PAN142 | 5055369060856 | 700mm-wide baths |
| 800mm End | PAN144 | 5055369060870 | 800mm & 750mm-wide baths |
Push-Button Clicker Wastes
| Finish | Code | GTIN |
|---|---|---|

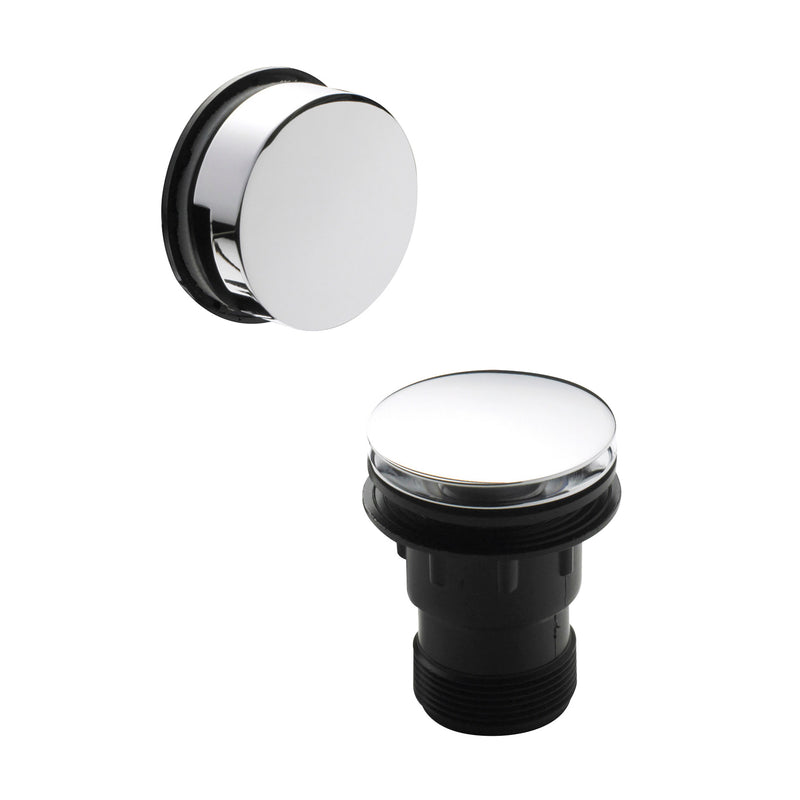

| Chrome | E327 | 5055369004256 |

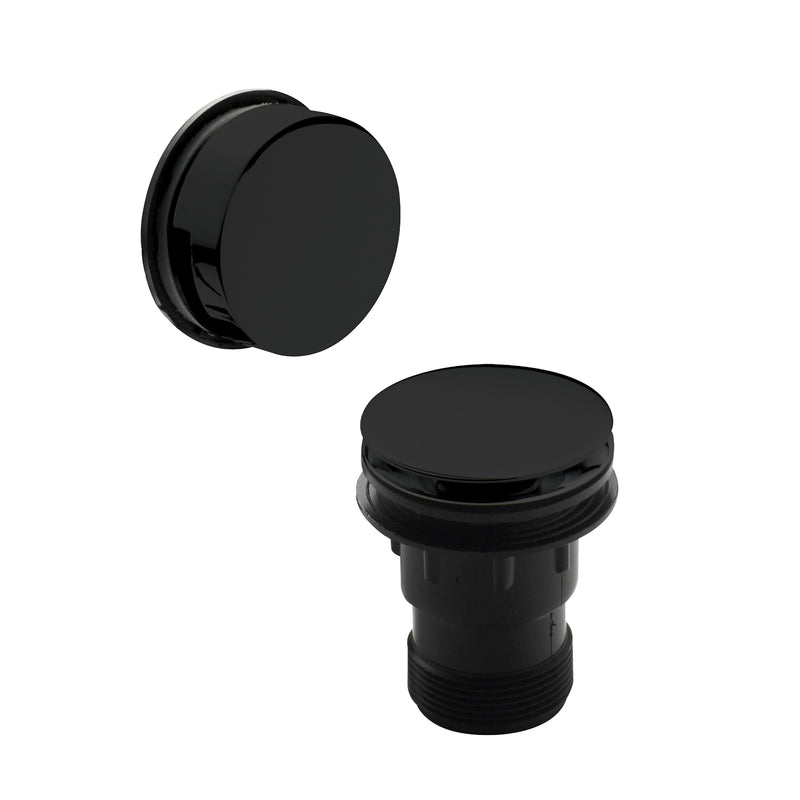

| Matt Black | E427 | 5056211897804 |

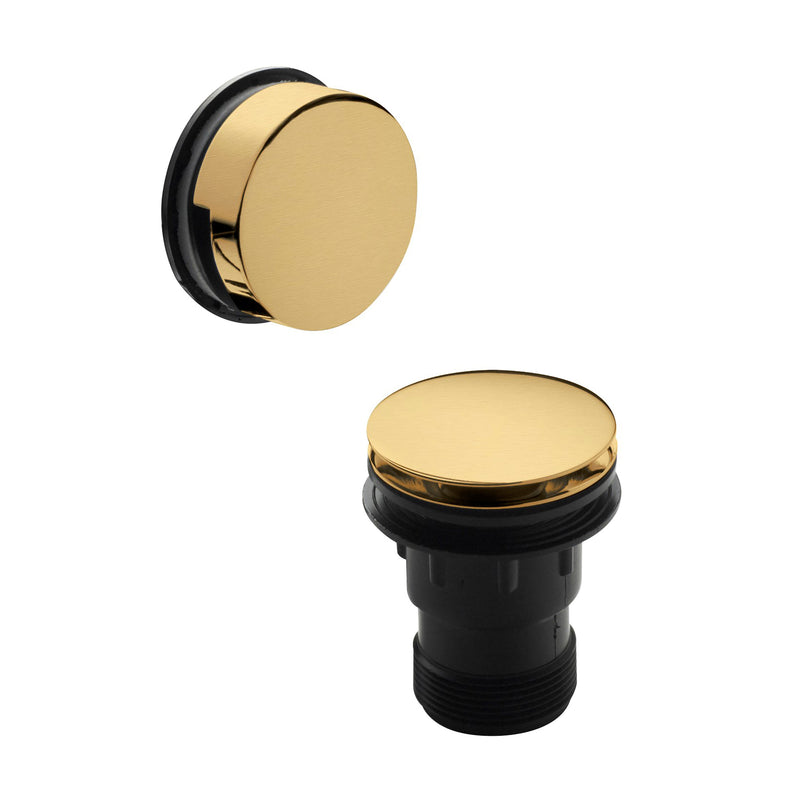

| Brushed Brass | E827 | 5056462603414 |

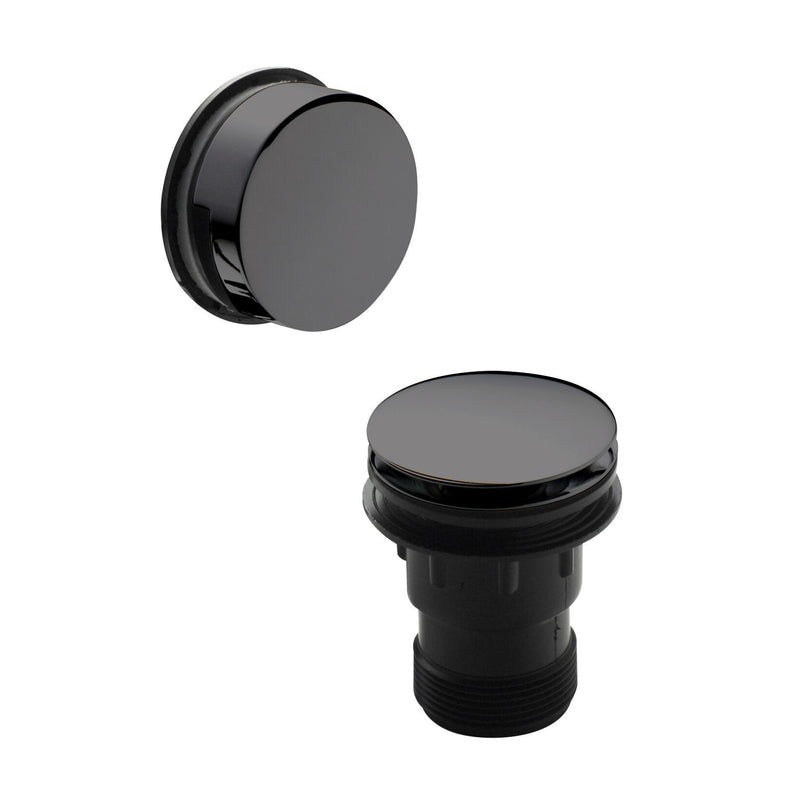

| Brushed Pewter | E727 | 5056462625461 |
Specifications
- Material: Reinforced acrylic
- Style: Square single ended
- Legs: Adjustable legs included
- Waste & panels: Optional — add above
- Guarantee: 5 Years
- Country of manufacture: United Kingdom
Technical Downloads

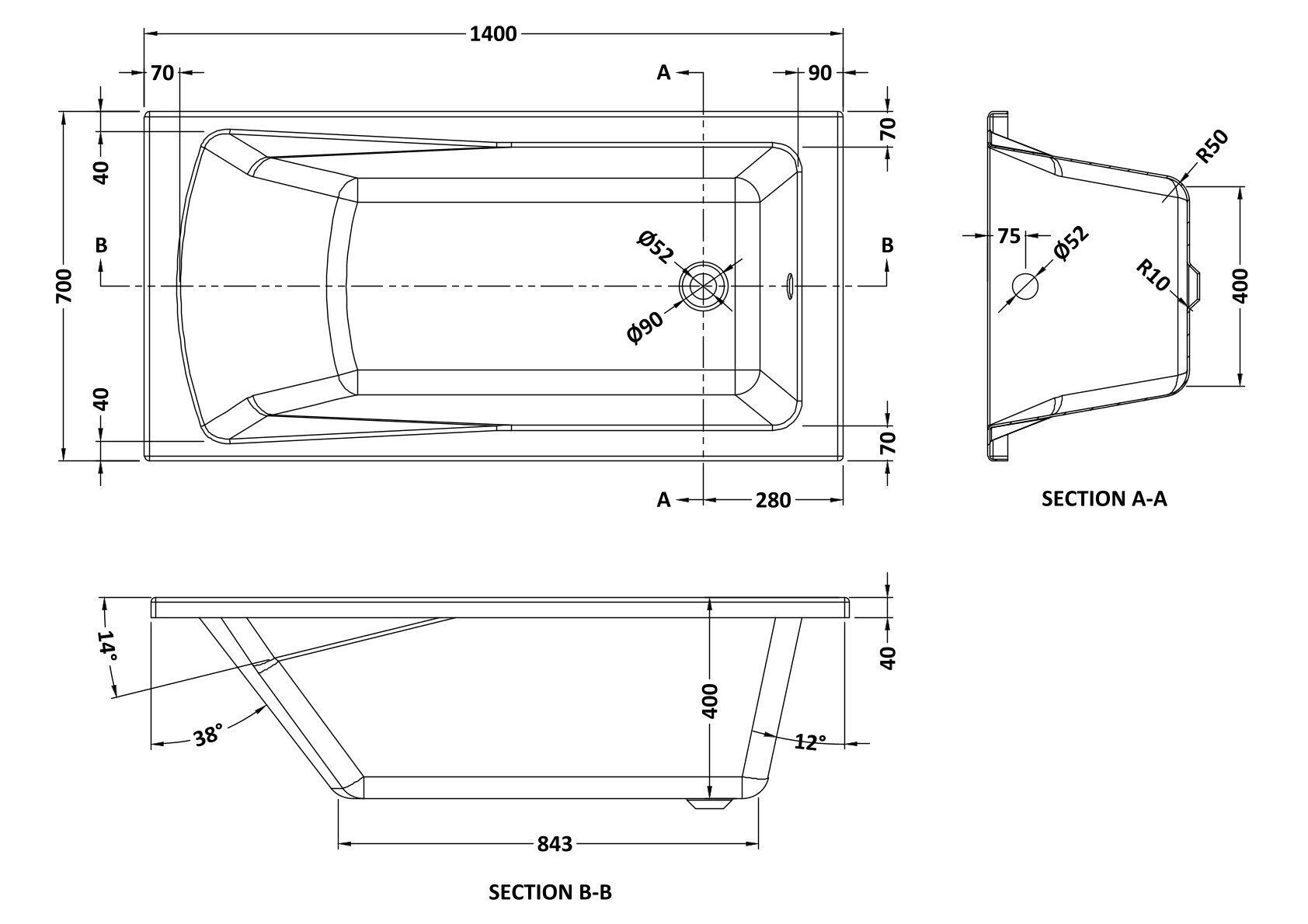

- 1400 x 700mm (NBA404) line drawing

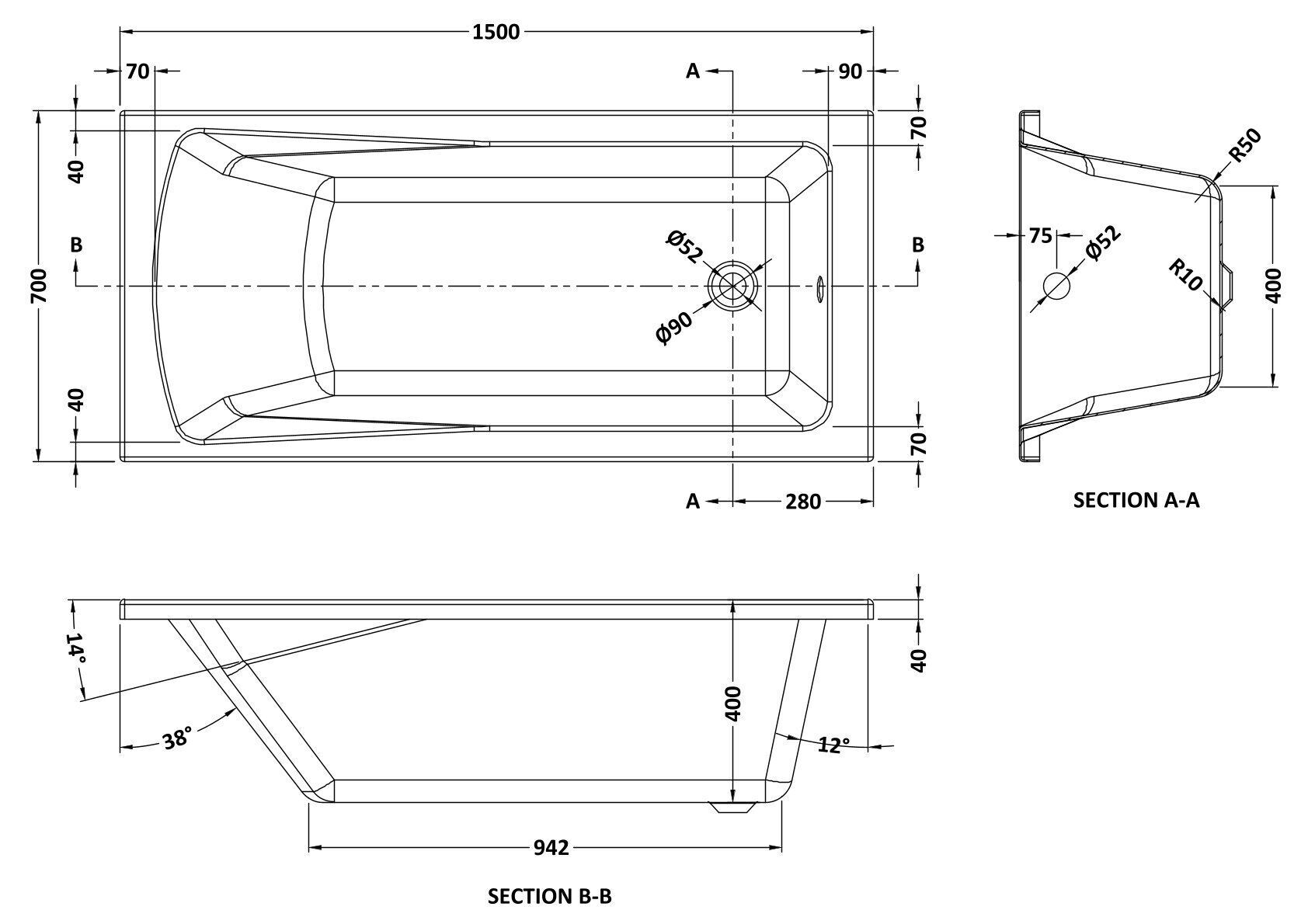

- 1500 x 700mm (NBA405) line drawing

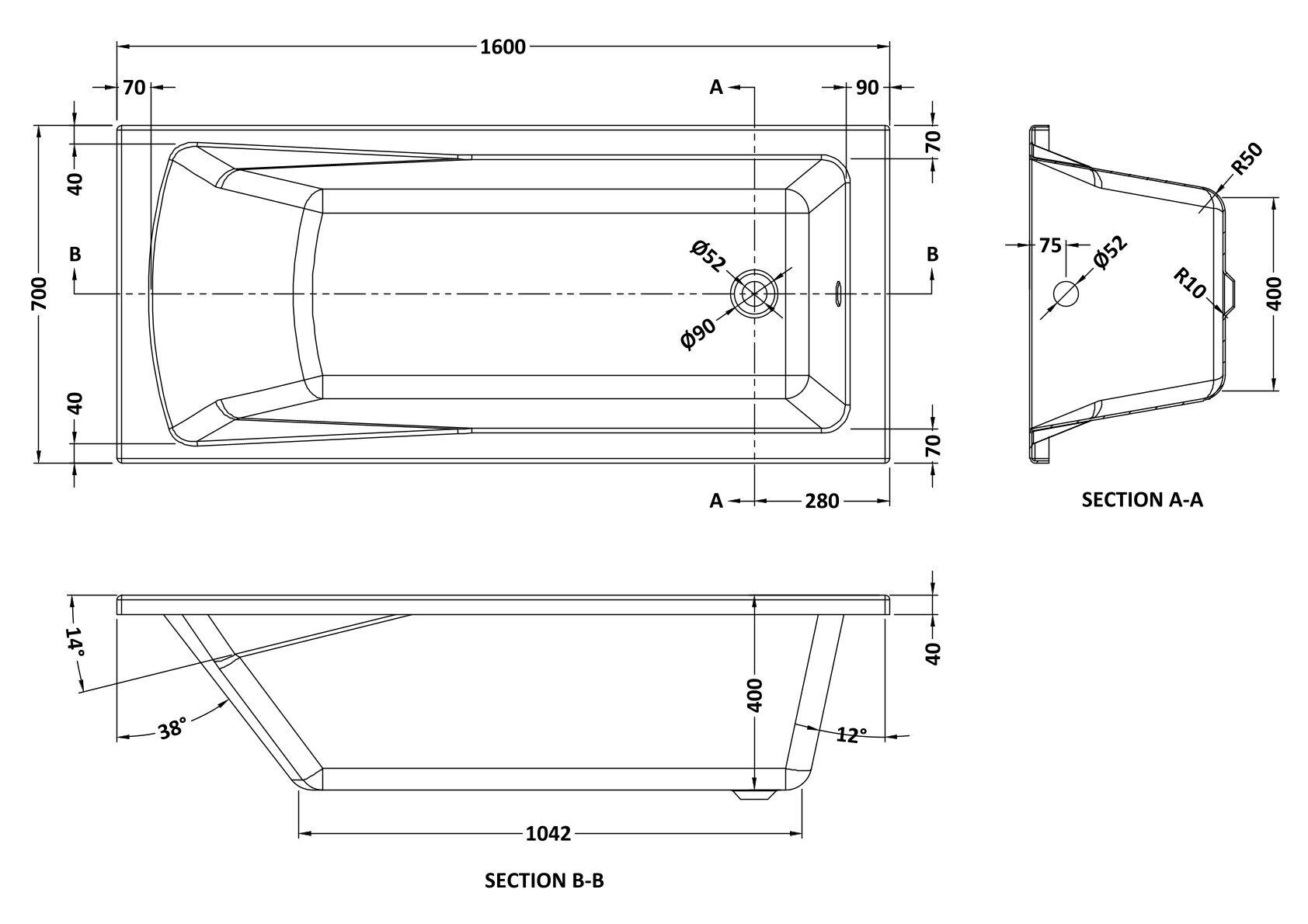

- 1600 x 700mm (NBA407) line drawing

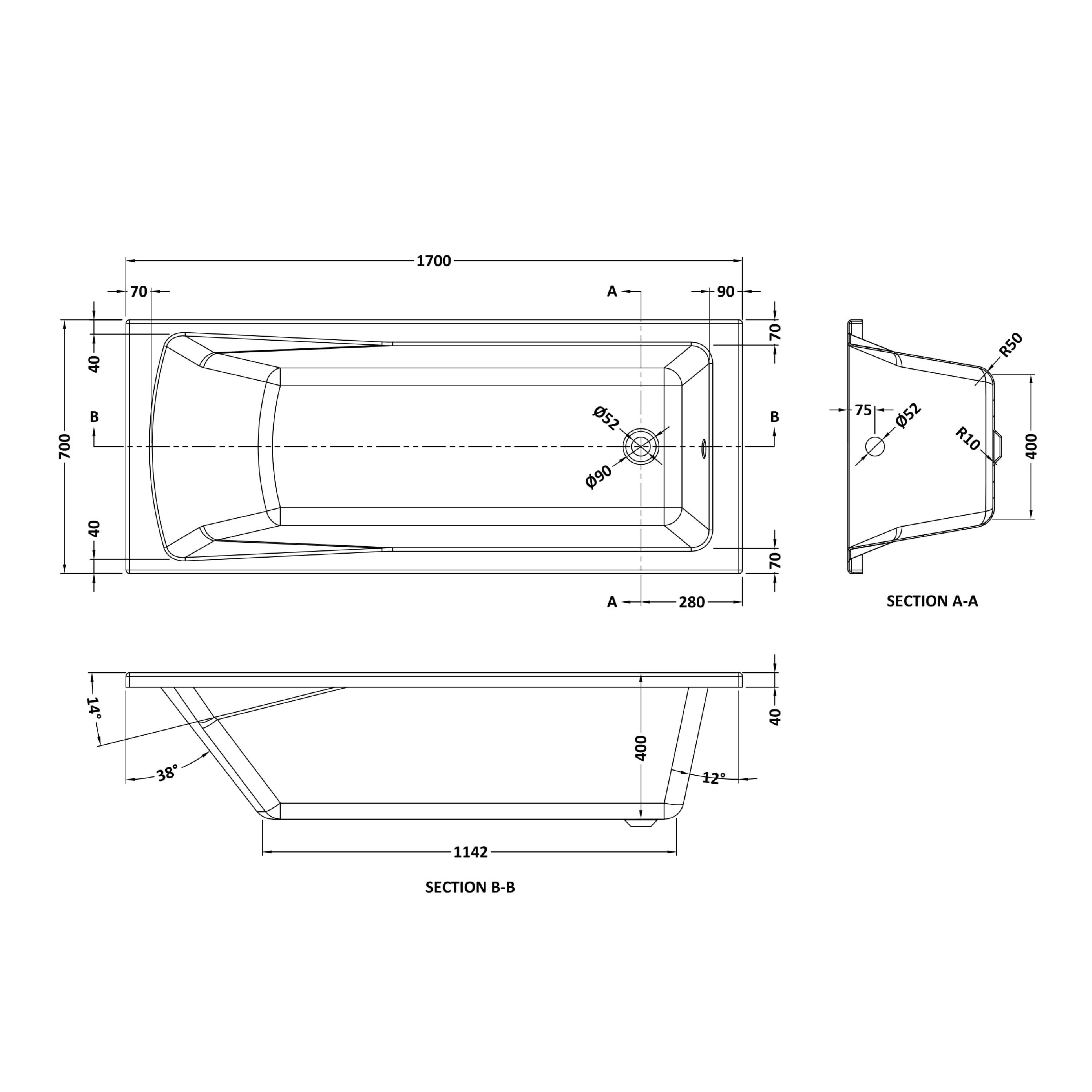

- 1700 x 700mm (NBA409) line drawing

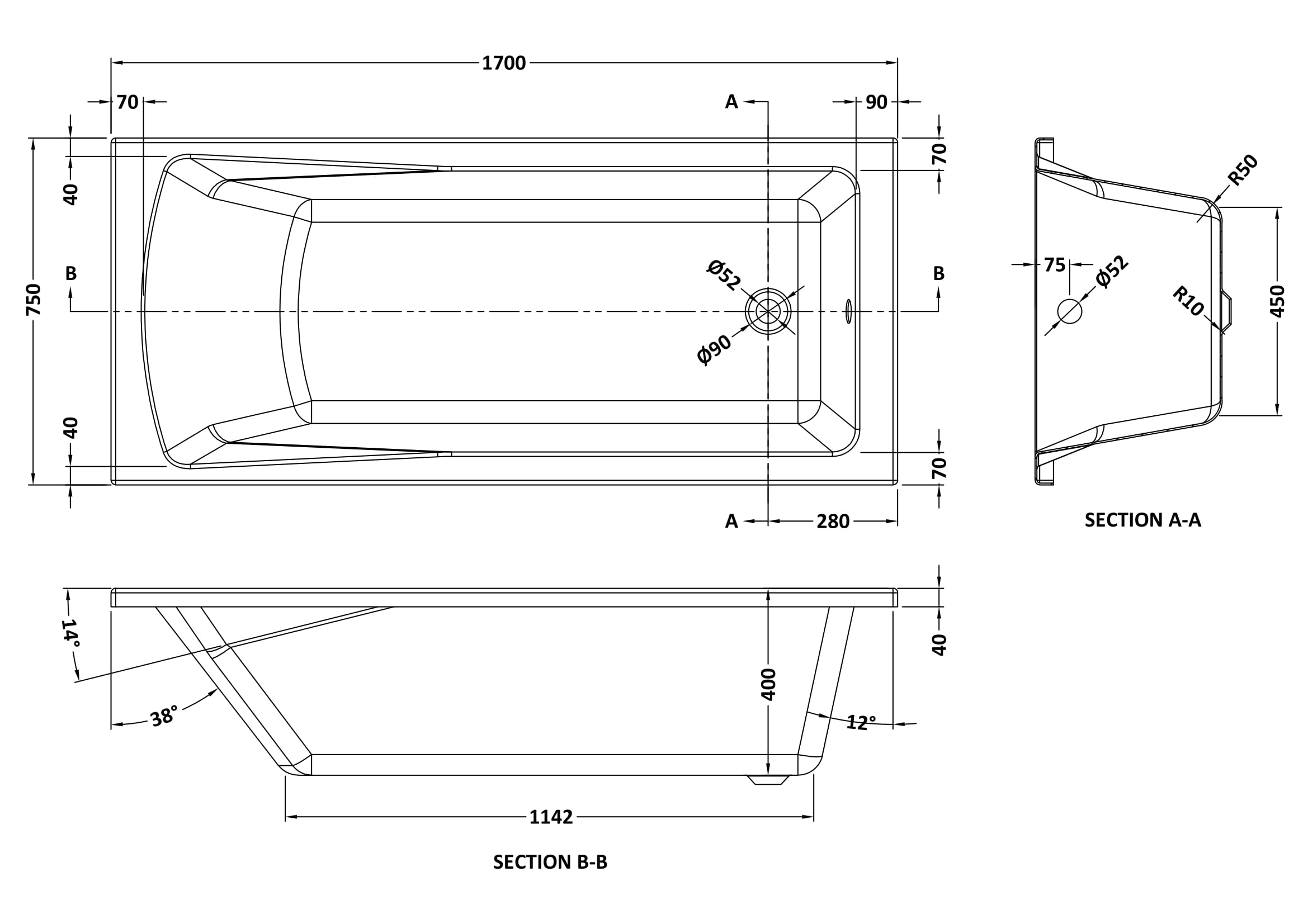

- 1700 x 750mm (NBA410) line drawing

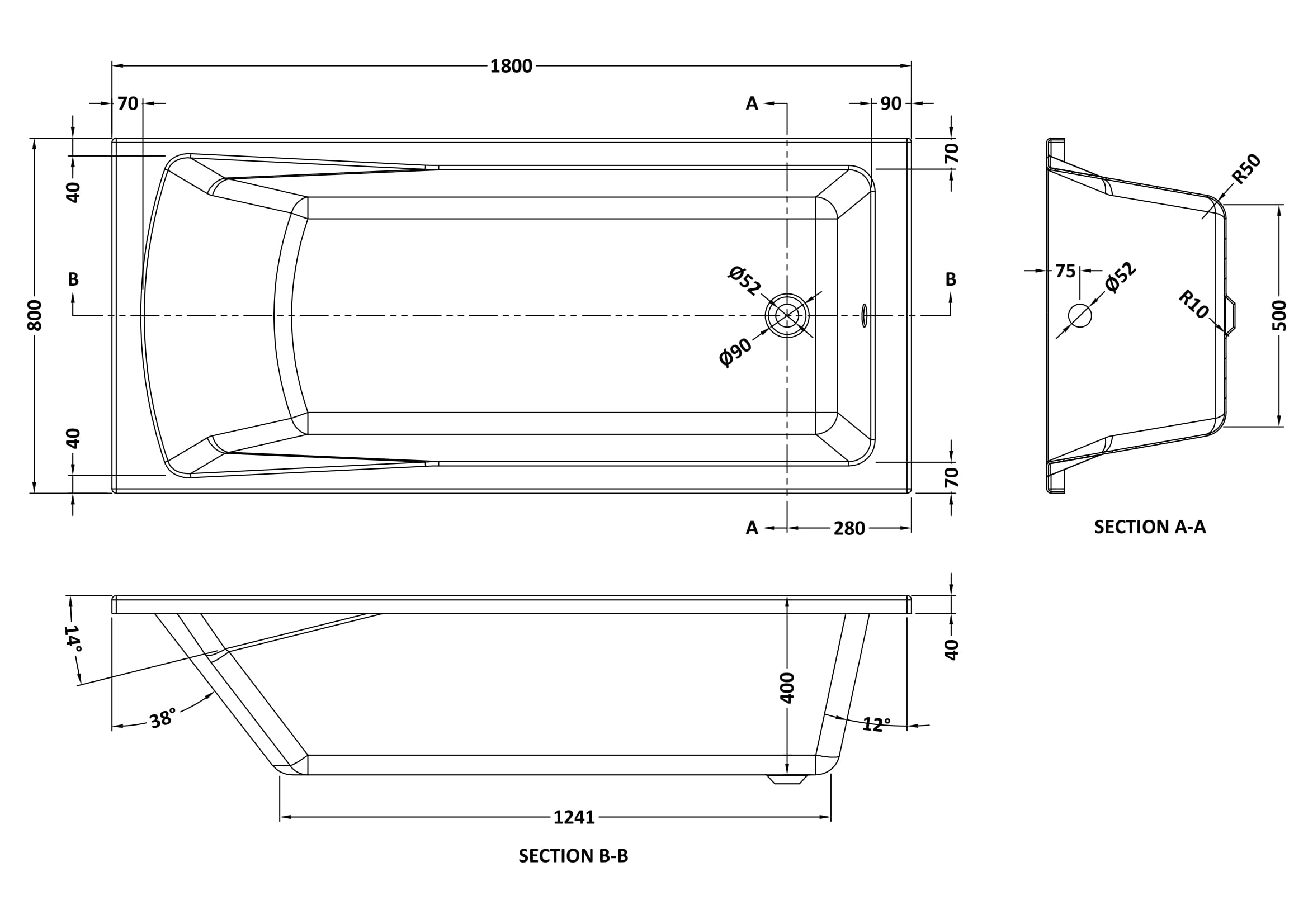

- 1800 x 800mm (NBA414) line drawing
