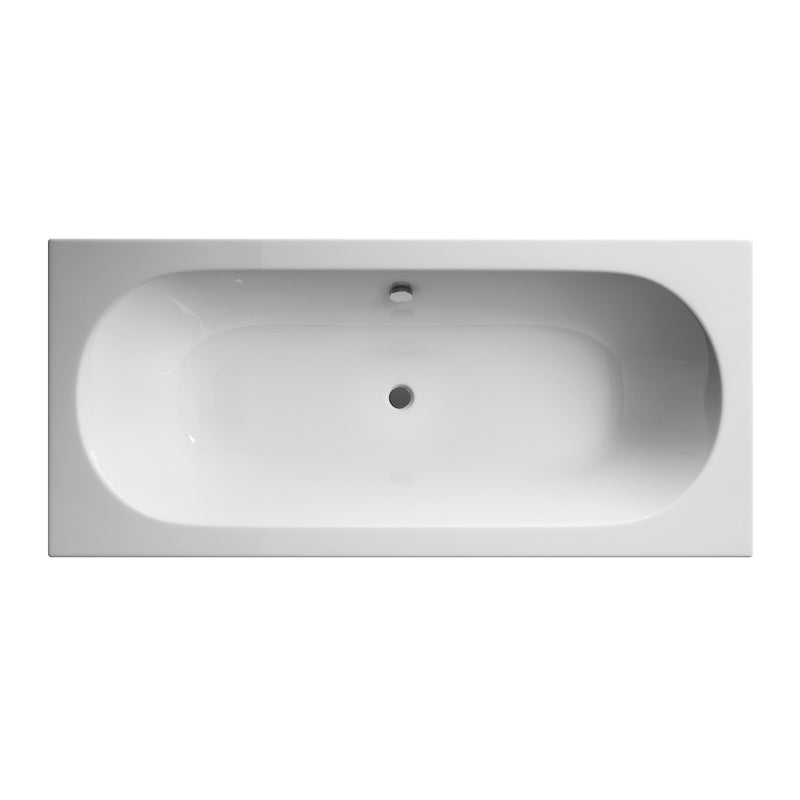

Nuie Otley Round Double Ended Bath (All Sizes)
The Nuie Otley Round Double Ended Bath pairs soft, curved lines with a versatile double-ended shape. The waste sits centrally and both ends are gently sloped, so two can bathe in comfort — or one can stretch out and lean back at either end. Made from premium Lucite® acrylic with thick fibreglass polyester reinforcement for a rigid, solid feel, it retains heat well for a long, relaxing soak. Supplied with a heavy-duty adjustable metal leg set and undrilled for taps. Build yours below: choose your size, add a matching acrylic front or front & end panel, and add an Easyclean push-button clicker waste in your choice of finish.
Key Features
- Round double ended design with soft, curved lines
- Central waste position with both ends gently sloped
- Sanitary-grade Lucite® acrylic with excellent heat retention
- Thick fibreglass polyester reinforcement for rigidity
- Heavy-duty adjustable metal leg set included
- Undrilled for taps; suitable for use with bath screens
- Optional matching acrylic front & end panels and push-button clicker waste
- 5-year manufacturer guarantee
Build Your Bath
Use the options above to configure your bath. On a double ended bath the waste sits centrally with both ends gently sloped. (The 1700 x 750mm end uses the 800mm panel.) Panels and the clicker waste are supplied to match the size you select. Acrylic panels can be trimmed down on site, so where a bath size falls between panel sizes the next size up is supplied to cut to fit — so every size can be finished with a front, or a front & end, panel.
Bath Sizes
| Size | Code | Capacity | GTIN |
|---|---|---|---|
| 1700 x 700mm | NBA509 | 170 L | 5055369006663 |
| 1700 x 750mm | NBA510 | 180 L | 5055369006670 |
| 1800 x 800mm | NBA514 | 210 L | 5055369006687 |
Matching Acrylic Bath Panels
| Panel | Code | GTIN | Fits |
|---|---|---|---|
| 1700mm Front | PAN140 | 5055369060832 | 1700mm baths |
| 1800mm Front | PAN141 | 5055369060849 | 1800mm baths |
| 700mm End | PAN142 | 5055369060856 | 700mm-wide baths |
| 800mm End | PAN144 | 5055369060870 | 800mm & 750mm-wide baths |
Push-Button Clicker Wastes
| Finish | Code | GTIN |
|---|---|---|

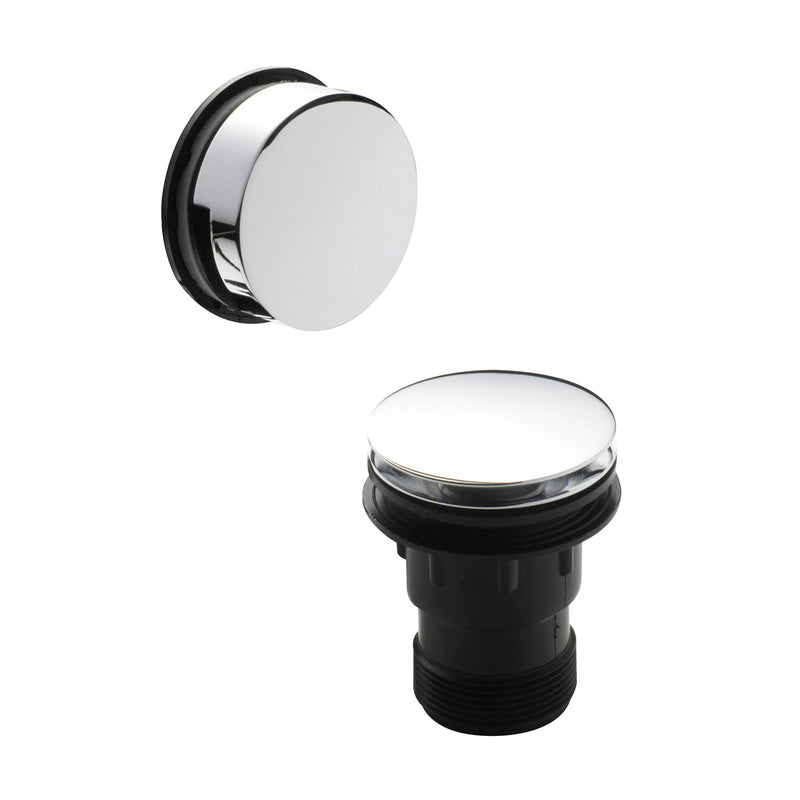

| Chrome | E327 | 5055369004256 |

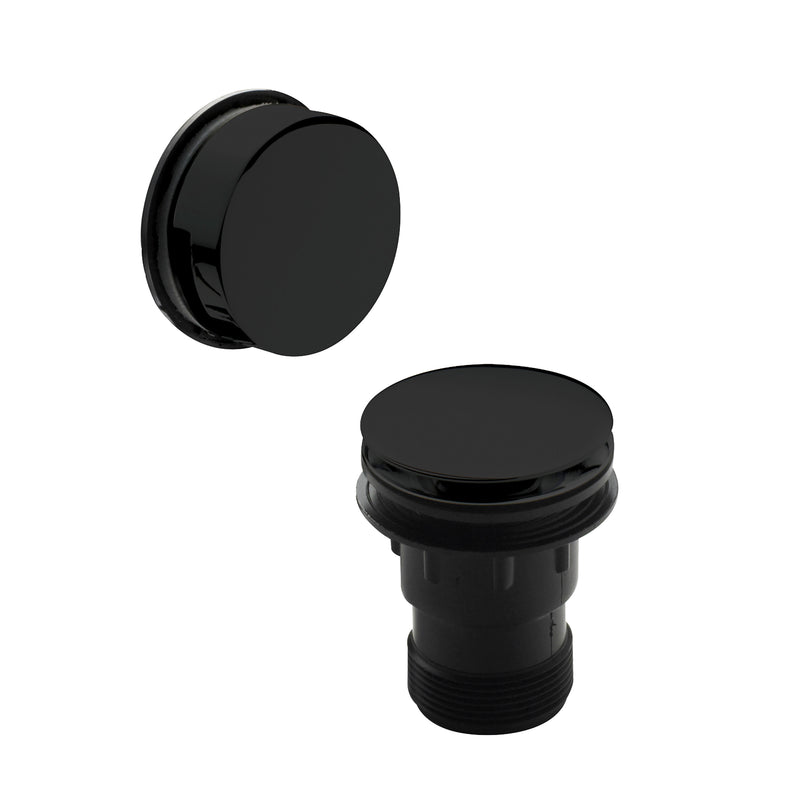

| Matt Black | E427 | 5056211897804 |

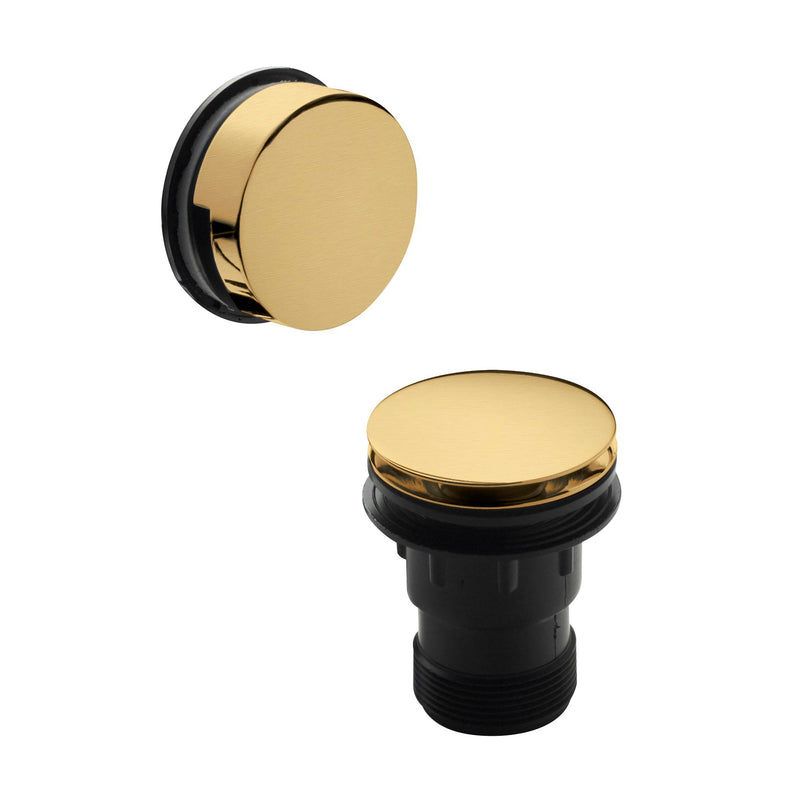

| Brushed Brass | E827 | 5056462603414 |

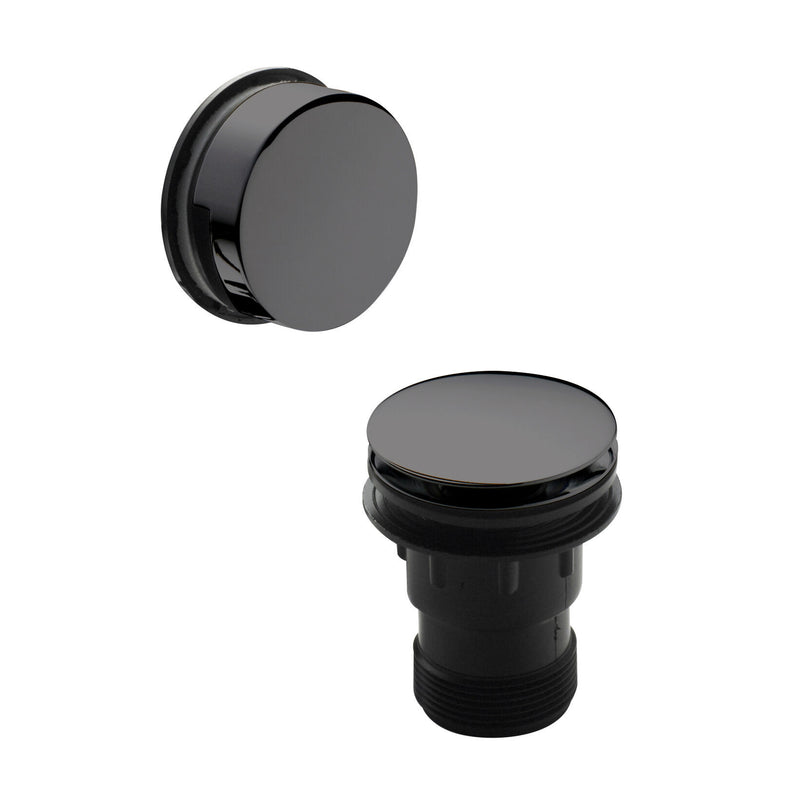

| Brushed Pewter | E727 | 5056462625461 |
Specifications
- Material: Sanitary-grade Lucite® acrylic
- Reinforcement: Fibreglass polyester
- Style: Round double ended
- Waste position: Central
- Legs: Heavy-duty adjustable metal legs included
- Taps: Undrilled
- Waste & panels: Optional — add above
- Guarantee: 5 Years
- Country of manufacture: United Kingdom
Technical Downloads

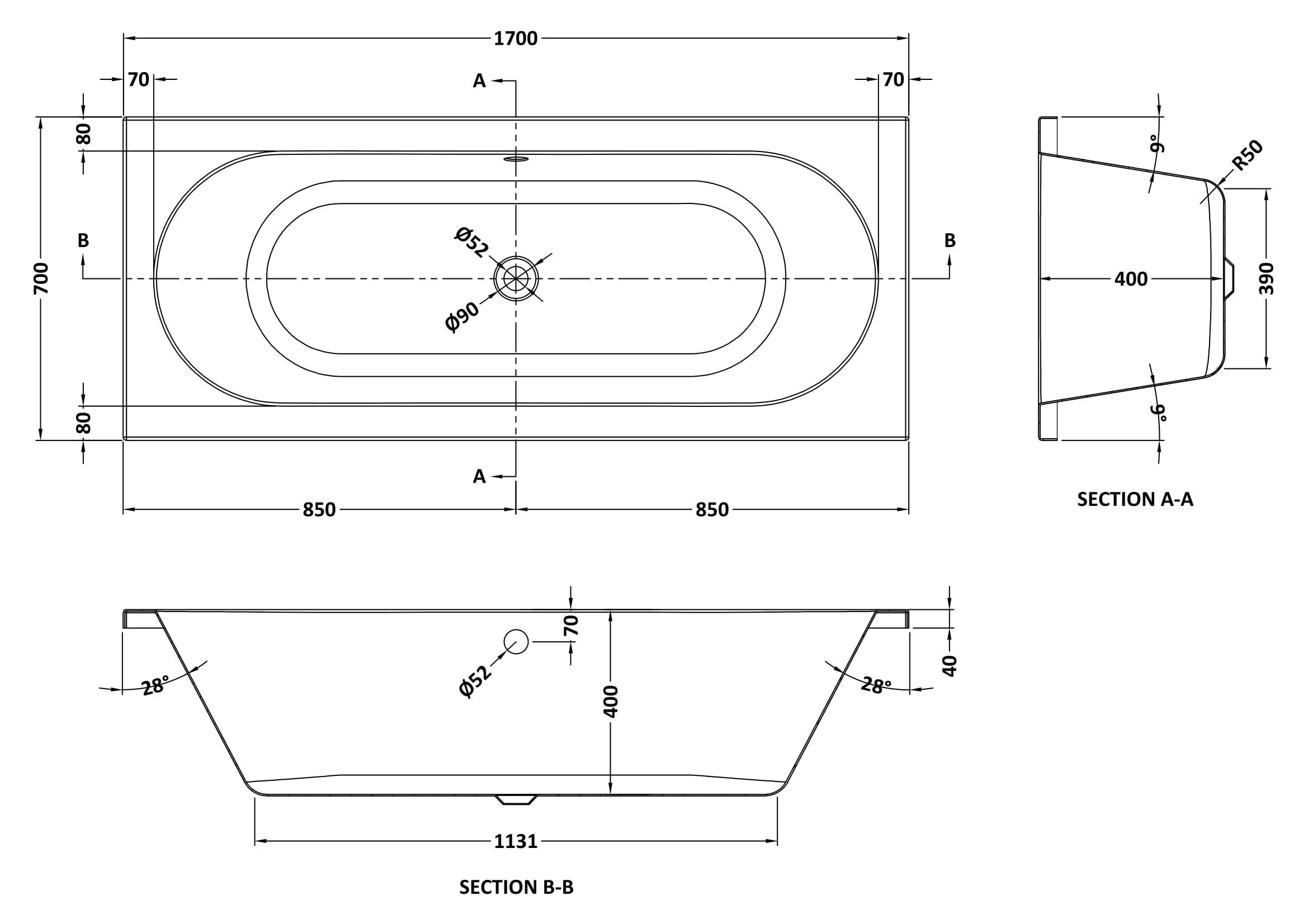

- 1700 x 700mm (NBA509) line drawing

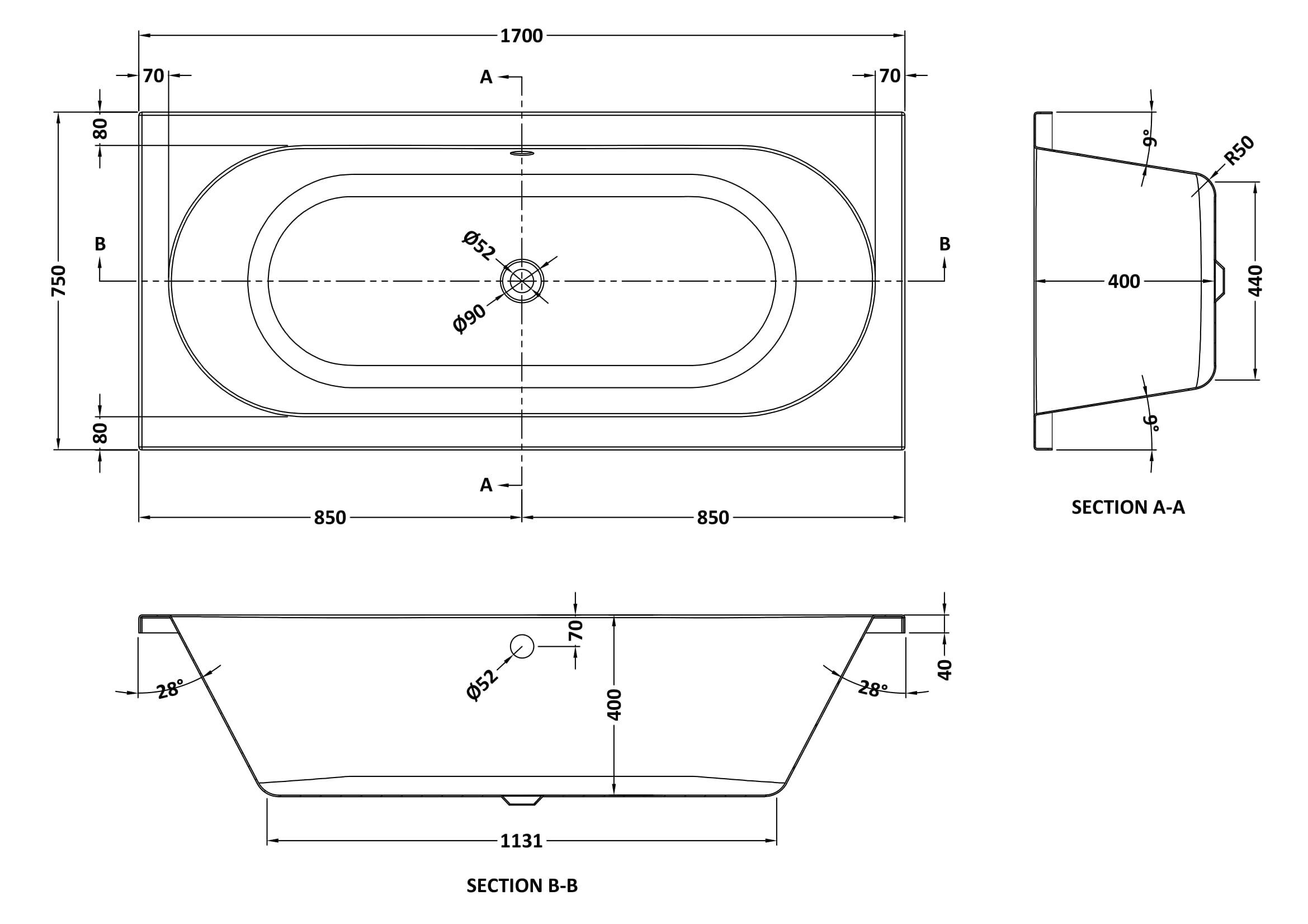

- 1700 x 750mm (NBA510) line drawing

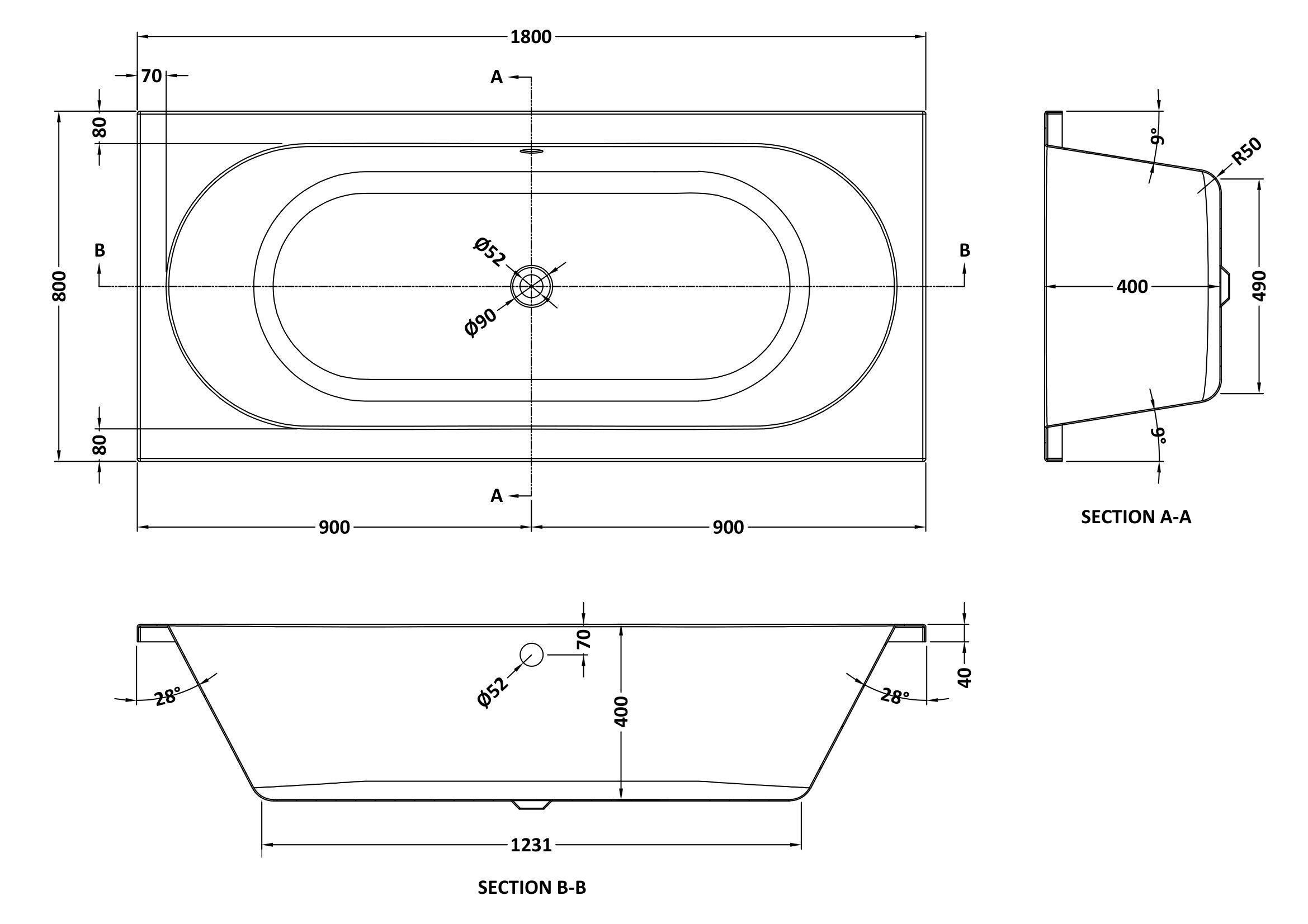

- 1800 x 800mm (NBA514) line drawing
Complete Your Bathroom — Matching Bath Screens
Adding a shower over your bath? Browse our full range of Nuie bath screens — hinged, fixed and L-shaped options in a choice of finishes to pair with this bath.
