Nuie Windon 3/4 Inch Side Valves Chrome (WIN308)
by Nuie
Save 50%
Original price
£178.00
Original price
£178.00
-
Original price
£178.00
Original price
£178.00
Current price
£89.00
£89.00
-
£89.00
Current price
£89.00

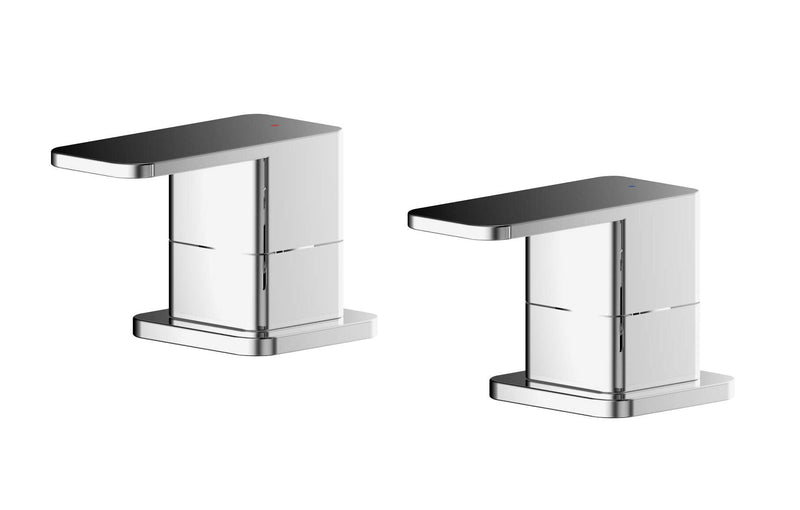

The Nuie Windon 3/4" Side Valves in chrome are the discreet way to control a freestanding or deck-filled bath – a pair of squared quarter-turn levers that mount either side of a bath spout or overflow filler. Quarter-turn ceramic disc valves give precise, drip-free control, and the solid brass bodies are built to last. Sold as a pair; designed for pressures from 0.5 bar.
- Pair of squared 3/4" side valves
- Solid brass construction, chrome finish
- Quarter-turn ceramic disc valves
- Deck mounted – requires 2 tap holes
- Suitable for systems from 0.5 bar
- 5 year manufacturer guarantee
Product Details
| Product Code | WIN308 |
| Range | Nuie Windon |
| Finish | Chrome |
| Mount Type | Deck mounted – 2 tap holes |

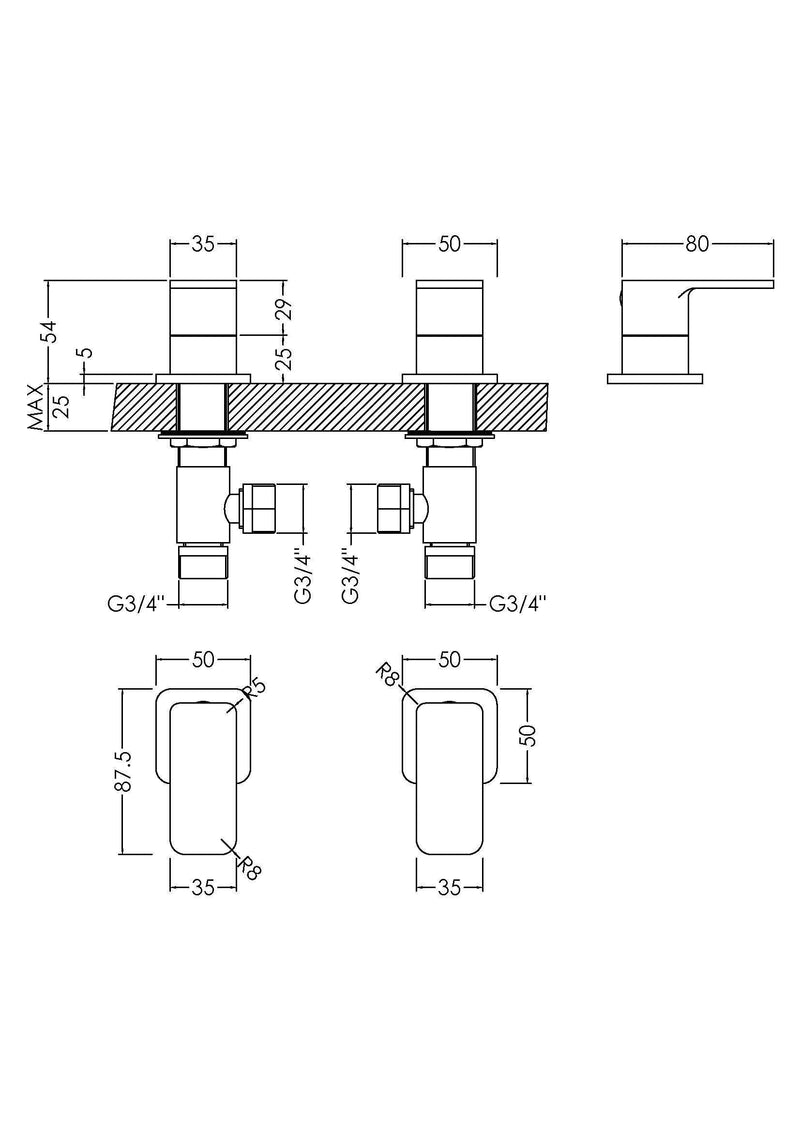

| Dimensions (H x W x D, per valve) | 55 x 50 x 80 mm |
| Connection | 3/4" BSP |
| Weight | 1.52 kg |
| Cartridge | Quarter-turn ceramic disc |
| Minimum Operating Pressure | 0.5 bar |
| Flow Rate | 9.6 L/min @ 0.1 bar · 19.2 @ 0.5 · 26.6 @ 1 · 37.9 @ 2 · 46.5 @ 3 bar |
| Waste Included | No |
| Material | Brass & plastic |
| Guarantee | 5 years |
