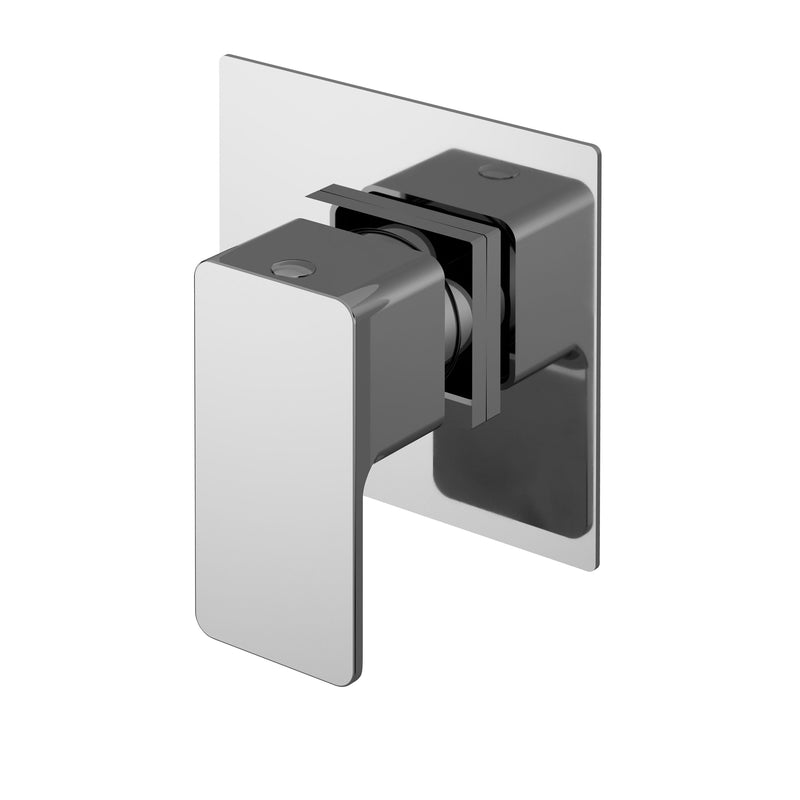

Nuie Windon Concealed Diverter 2 3 4 Way Chrome (WINWD14)
by Nuie
Save 50%
Original price
£164.00
Original price
£164.00
-
Original price
£164.00
Original price
£164.00
Current price
£82.00
£82.00
-
£82.00
Current price
£82.00
The Nuie Windon Concealed Diverter in chrome is the squared control that switches flow between multiple shower outlets – configurable as a 2, 3 or 4-way diverter, it lets you build a bespoke shower system driving several accessories from a single Windon valve. Quarter-turn ceramic disc operation gives smooth, positive switching, the body sits concealed in the wall, and it works on systems from 0.2 bar.
- Square design for an ultra modern look
- Manufactured from high quality brass
- Configurable 2 / 3 / 4-way diverter
- Quarter-turn ceramic disc control
- Concealed installation – coordinates with Windon valves
- Can be fitted vertically or horizontally
- Suitable for systems from 0.2 bar
- 5 year manufacturer guarantee
Product Details
| Product Code | WINWD14 |
| Range | Nuie Windon |
| Finish | Chrome |
| Type | Concealed diverter – 2/3/4 way |

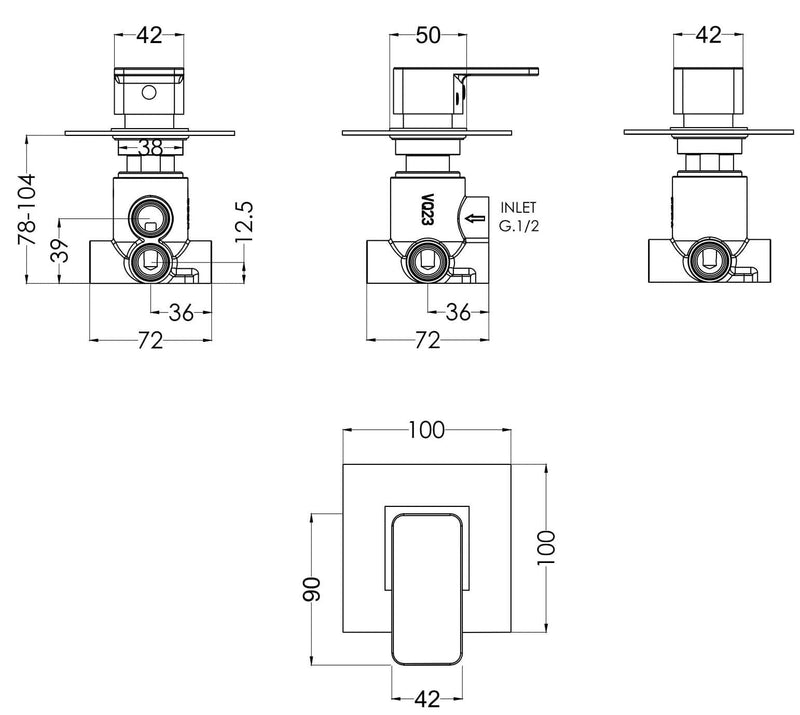

| Dimensions (H x W x D) | 100 x 100 x 135 mm |
| Weight | 1.05 kg |
| Cartridge | Quarter-turn ceramic disc |
| Minimum Operating Pressure | 0.2 bar |
| Flow Rate | 5.2 L/min @ 0.1 bar · 13.3 @ 0.5 · 19.1 @ 1 · 27 @ 2 · 33.2 @ 3 bar |
| Material | Brass |
| Guarantee | 5 years |
