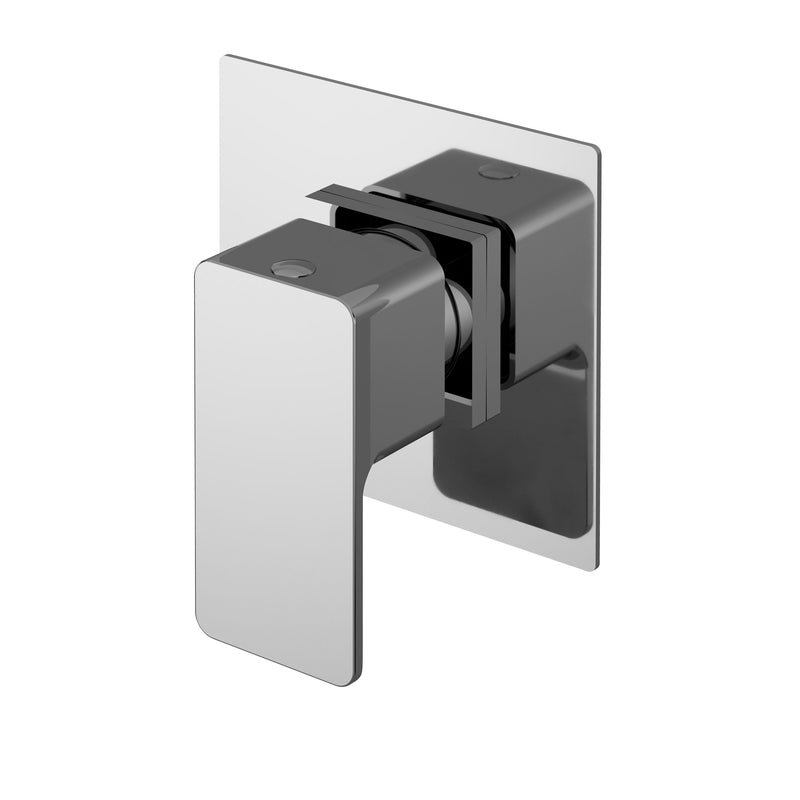

Nuie Windon Concealed Stop Tap Chrome (WINST10)
by Nuie
Save 50%
Original price
£147.00
Original price
£147.00
-
Original price
£147.00
Original price
£147.00
Current price
£73.50
£73.50
-
£73.50
Current price
£73.50
The Nuie Windon Concealed Stop Tap in chrome adds a single squared on/off control to a shower layout – a neat way to isolate an outlet or add a flow control alongside a Windon valve, matching the range’s crisp angular styling. Quarter-turn ceramic disc operation gives smooth, drip-free control, the body sits concealed in the wall, and it works on systems from 0.2 bar.
- Square design for an ultra modern look
- Manufactured from high quality brass
- Quarter-turn ceramic disc control
- Concealed installation – coordinates with Windon valves
- Can be fitted vertically or horizontally
- Suitable for systems from 0.2 bar
- 5 year manufacturer guarantee
Product Details
| Product Code | WINST10 |
| Range | Nuie Windon |
| Finish | Chrome |
| Type | Concealed stop tap |

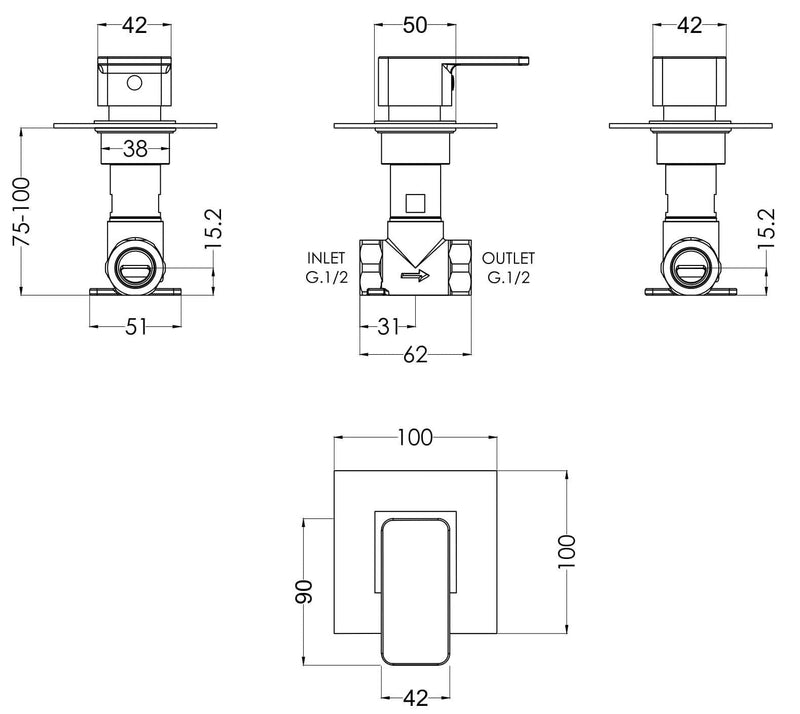

| Dimensions (H x W x D) | 100 x 100 x 135 mm |
| Weight | 0.77 kg |
| Cartridge | Quarter-turn ceramic disc |
| Minimum Operating Pressure | 0.2 bar |
| Flow Rate | 5.4 L/min @ 0.1 bar · 13.4 @ 0.5 · 19.2 @ 1 · 27.5 @ 2 · 33.3 @ 3 bar |
| Material | Brass |
| Guarantee | 5 years |
