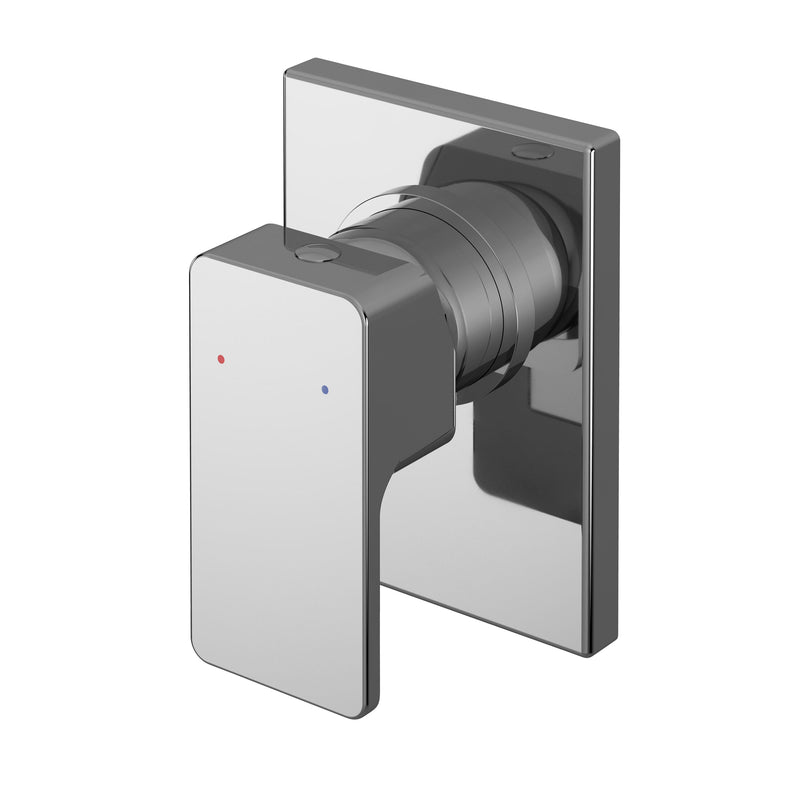

The Nuie Windon Manual Concealed Shower Valve in chrome is the simple, streamlined way to run a single shower outlet – one squared lever on a compact concealed plate, controlling flow and temperature with the British-made Valquest single lever cartridge. The valve body sits hidden in the wall for a clean minimal look, can be fitted vertically or horizontally, and works on systems from 0.5 bar.
- Square design for an ultra modern look
- Manufactured from high quality brass
- Unique Valquest cartridge – made in Britain
- Controls 1 outlet (fixed head, slide rail kit or bath spout)
- Can be fitted vertically or horizontally
- Suitable for systems from 0.5 bar
- 5 year manufacturer guarantee
Product Details
| Product Code | WINMV10 |
| Range | Nuie Windon |
| Finish | Chrome |
| Type | Manual concealed valve – 1 outlet |

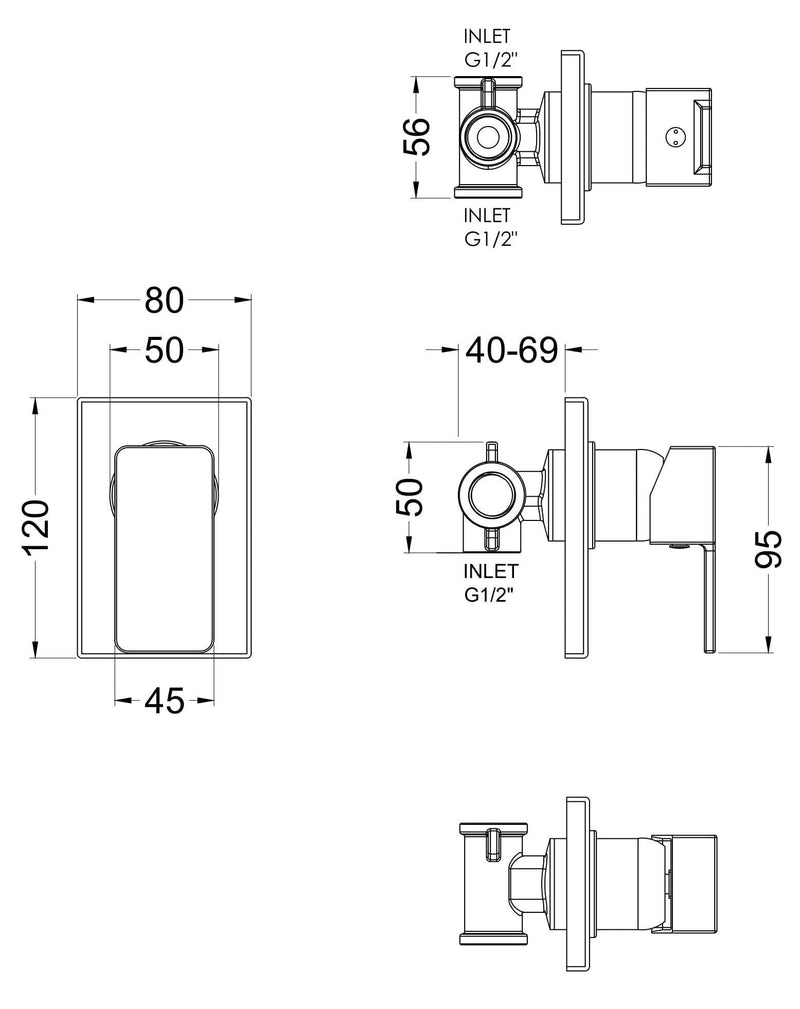

| Dimensions (H x W x D) | 120 x 80 x 113 mm |
| Weight | 1.07 kg |
| Cartridge | Valquest single lever |
| Pipe Size | 15 mm |
| Minimum Operating Pressure | 0.5 bar |
| Flow Rate | 3.4 L/min @ 0.1 bar · 7.9 @ 0.5 · 11.2 @ 1 · 15.9 @ 2 · 19.5 @ 3 bar |
| Material | Brass |
| Guarantee | 5 years |
