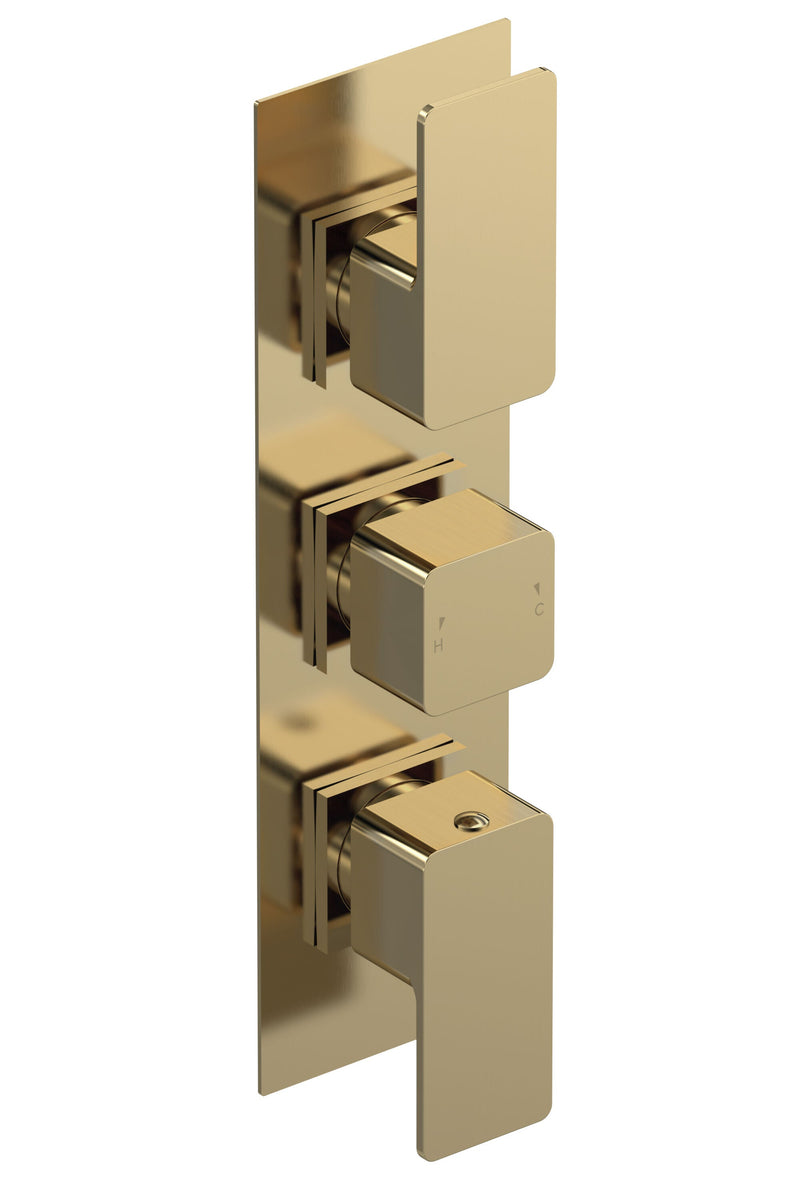

Nuie Windon Triple Concealed Thermostatic Shower Valve With Diverter 3 Outlet Brushed Brass (WIN8TR03)
by Nuie
Save 50%
Original price
£698.00
Original price
£698.00
-
Original price
£698.00
Original price
£698.00
Current price
£349.00
£349.00
-
£349.00
Current price
£349.00
The Nuie Windon Triple Concealed Thermostatic Shower Valve with Diverter in brushed brass is the flagship of the range in a warm luxury finish – independent temperature control plus two flow controls and a built-in diverter, driving up to three outlets so you can run a fixed head, handset and body jets from one squared plate. The British-made Valquest thermostatic cartridge holds your set temperature steady with full scald protection, and the valve works from 0.5 bar. Can be fitted vertically or horizontally.
- Square design for an ultra modern look
- Manufactured from high quality brass, brushed brass finish
- Unique Valquest cartridge – made in Britain
- Full thermal protection to prevent scalding
- Diverter drives up to 3 outlets
- Can be fitted vertically or horizontally
- Suitable for systems from 0.5 bar
- WRAS approved
- 3 year manufacturer guarantee
Product Details
| Product Code | WIN8TR03 |
| Range | Nuie Windon |
| Finish | Brushed Brass |
| Type | Triple thermostatic concealed valve with diverter – 3 outlets |

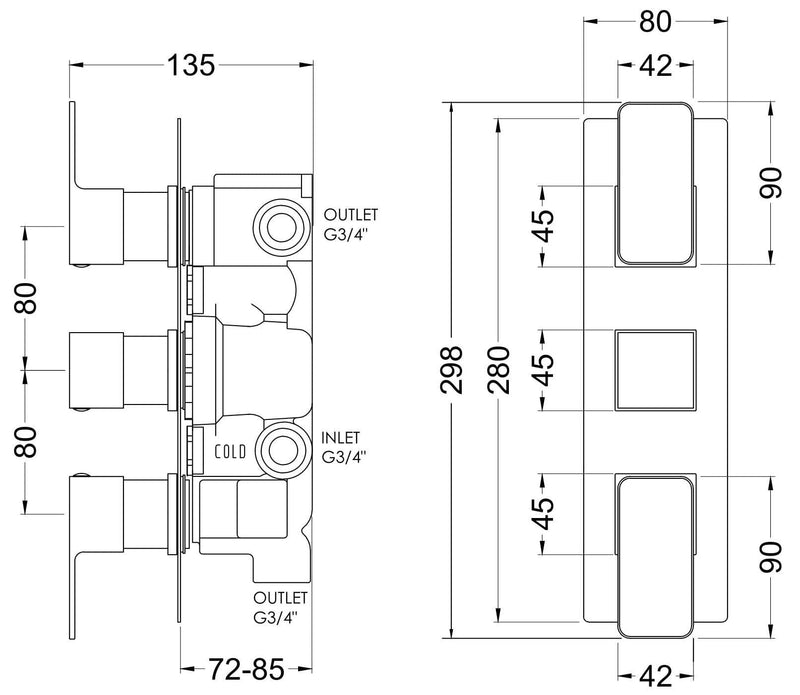

| Dimensions (H x W x D) | 298 x 80 x 135 mm |
| Weight | 3.5 kg |
| Cartridge | Valquest thermostatic · quarter-turn ceramic disc |
| Minimum Operating Pressure | 0.5 bar |
| Flow Rate | 13 L/min @ 0.5 bar · 17 @ 1 · 24 @ 2 · 27 @ 3 bar |
| WRAS Approved | Yes – approval no. 250602040 |
| Material | Brass |
| Guarantee | 3 years |
