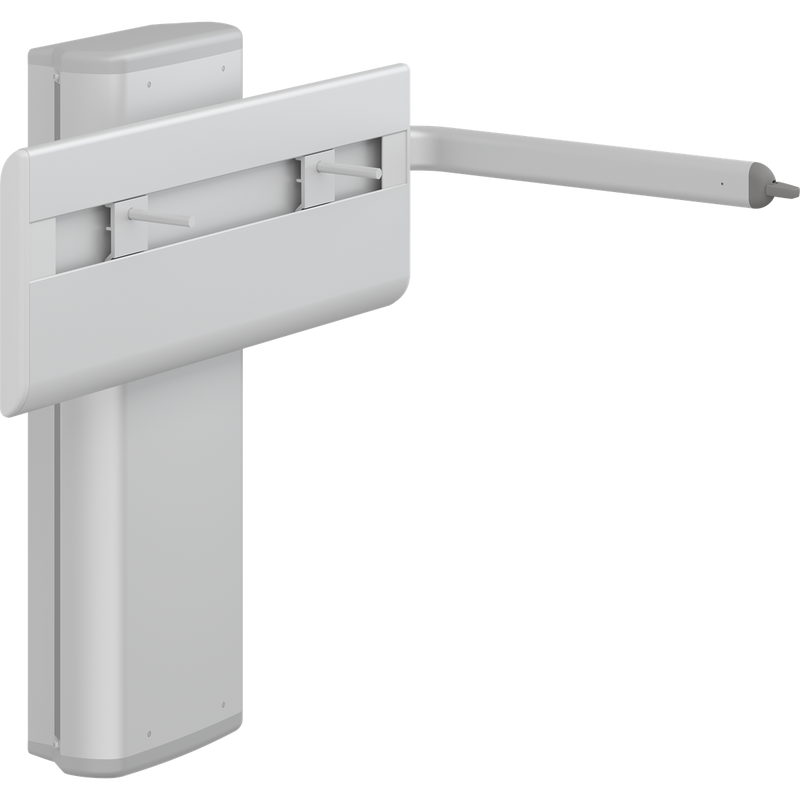

Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable, Lever Control, Wall-Mounted, White (R4750)
The Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable, Lever Control, Wall-Mounted, White (R4750) is a powered rise-and-fall frame that raises or lowers a separately-ordered basin through 300 mm (668–968 mm) at the touch of a front-mounted lever — letting a disabled or seated user set the basin to a comfortable height independently, with no effort.
From the Pressalit PLUS range, the lever control sits at the front, fits either side and doubles as a towel rail. Built from 10-micrometre anodised aluminium with ABS polymer caps, driven by a quiet Linak LA40 actuator (230 V, IPX6, 75 W). Suits all bolt-mounted wash basins (recommended with MATRIX Small and Curve/New Curve) and ships with fixing bolts for the basin. Rated to 100 kg maximum user weight (104 kg SWL), 10-year expected service life. Wall-mounted — mounting kit not included. Recommended flexible feed/waste: R2071/R2075.
Supplied by Essential Bathrooms at up to 20% below Pressalit’s RRP, with the full Pressalit Care catalogue, expert specification support, and fast UK-wide delivery.
Specification
- Product Code: R4750
- Range: Pressalit PLUS
- Type: Wash Basin Bracket, electrically height adjustable, lever control, wall-mounted
- Adjustment: Electrically height adjustable 300 mm (668–968 mm), stepless
- Operation: Front lever control (fits either side; doubles as a towel rail)
- Power: 230 V, 50/60 Hz, IPX6, 75 W; Linak LA40 actuator
- Compatible Basins: All bolt-mounted wash basins (recommended with MATRIX Small and Curve/New Curve), basin weight up to 22 kg
- Mounting: Wall-mounted (mounting kit not included)
- Maximum User Weight: 100 kg (safe working load 104 kg)
- Colour: White
- EAN: 5708590309309
- Manufacturer: Pressalit
Specification / tender reference: Pressalit PLUS Wash Basin Bracket, Electrically Height Adjustable, Lever Control, Wall-Mounted, White (Product Code R4750), supplied by Essential Bathrooms — https://www.essentialbathrooms.co.uk/products/pressalit-plus-wash-basin-bracket-electrically-height-adjustable-lever-control-wall-mounted-white-r4750
Technical Downloads
Many Pressalit Care products qualify for VAT relief for eligible disabled or chronically ill users — contact us to check eligibility. Lead time is confirmed at the point of order.
