AKW Contour ShowerDec Wet Room Floor Former (All Sizes)
AKW Contour ShowerDec Wet Room Floor Former (All Sizes & Waste Options)
The Contour ShowerDec is the strongest wet floor former AKW make — 24mm of compressed SMC-GRP engineered to support up to 100 stone (635kg), making it the go-to former for high-demand wet rooms, wheelchair-accessible bathrooms and assisted installations. Twelve sizes, a built-in fall, and a lifetime warranty: choose your size and waste option below. New to the range? Read our complete ShowerDec buyer's guide.
Which Waste Option Do I Need?

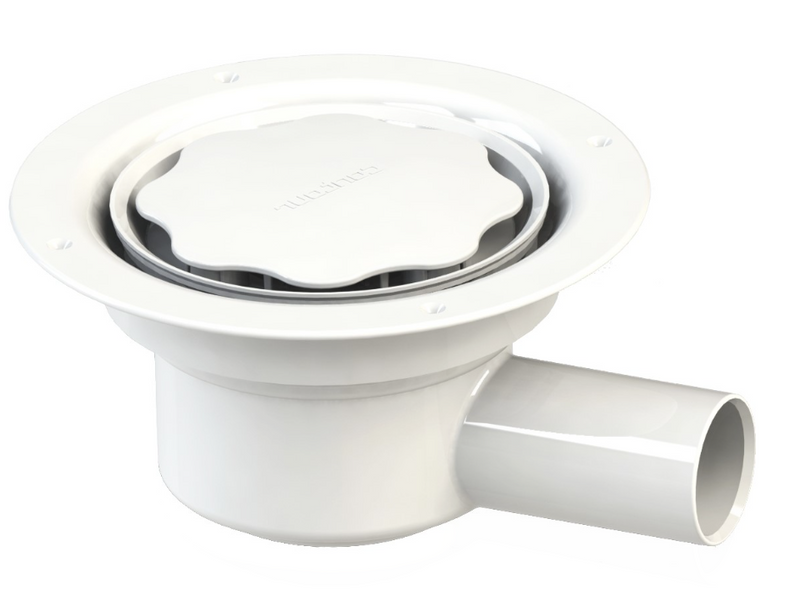

- CTW01 Gravity Shower Trap (08CTW01) — AKW's standard ShowerDec pairing for vinyl safety flooring with gravity drainage; an economical trapped waste.

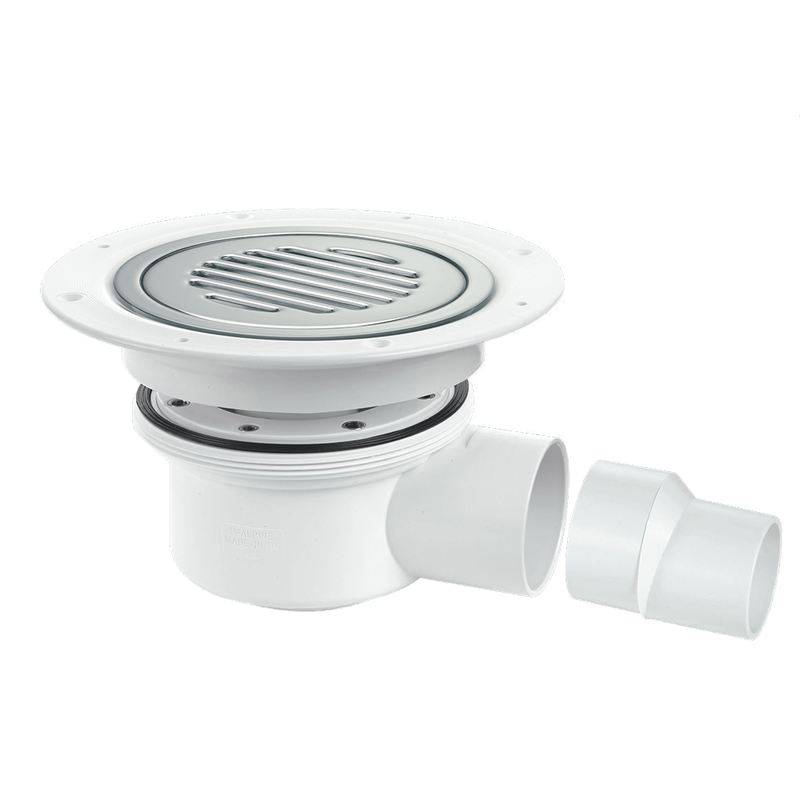

- McAlpine TSG52 50mm Gully (08GT52NSC) — a premium two-piece 50mm water-seal gully for vinyl installs.

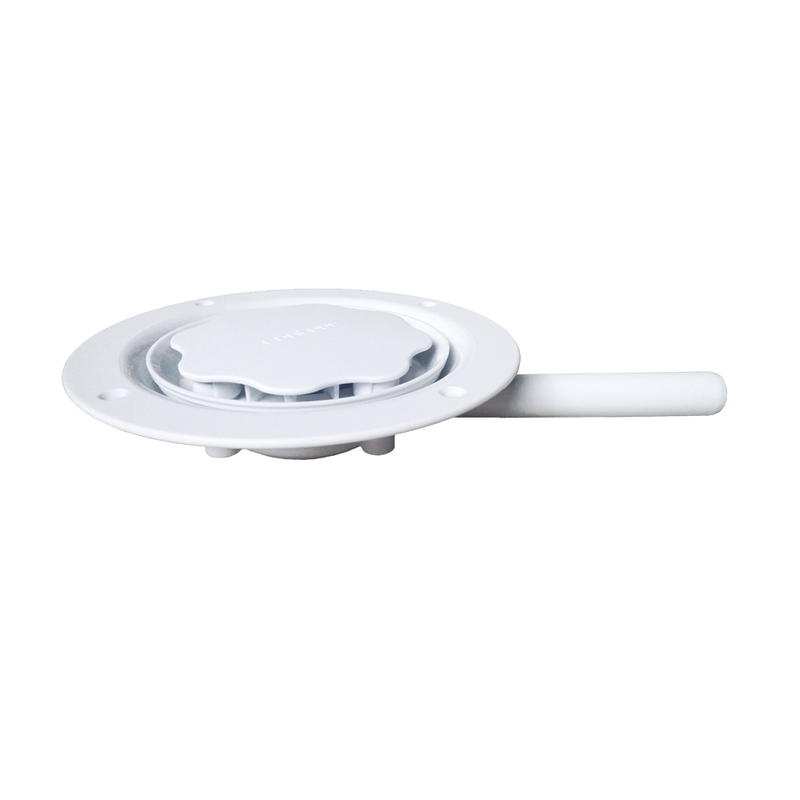

- CUW01 Pumped Waste Trap (08CUW01) — AKW's pumped trap for ShowerDec, for installs where gravity drainage can't run (flats, concrete floors, long pipe runs). Please note: this is the trap only — a compatible shower waste pump is required and sold separately. Contact us and we'll spec the right pump for your installation.
- No Waste — already have a compatible waste, or your installer is specifying separately? Order the former alone.
Tiling over your ShowerDec? That's fully supported with a tanking kit — contact us with your floor build-up and tile choice and we'll confirm the right waste and membrane for your installation.
Key Features:
- Class-leading strength: 24mm thick compressed SMC-GRP supports up to 100 stone (635kg) — the highest capacity in the AKW former range — with no additional support needed around the waste.

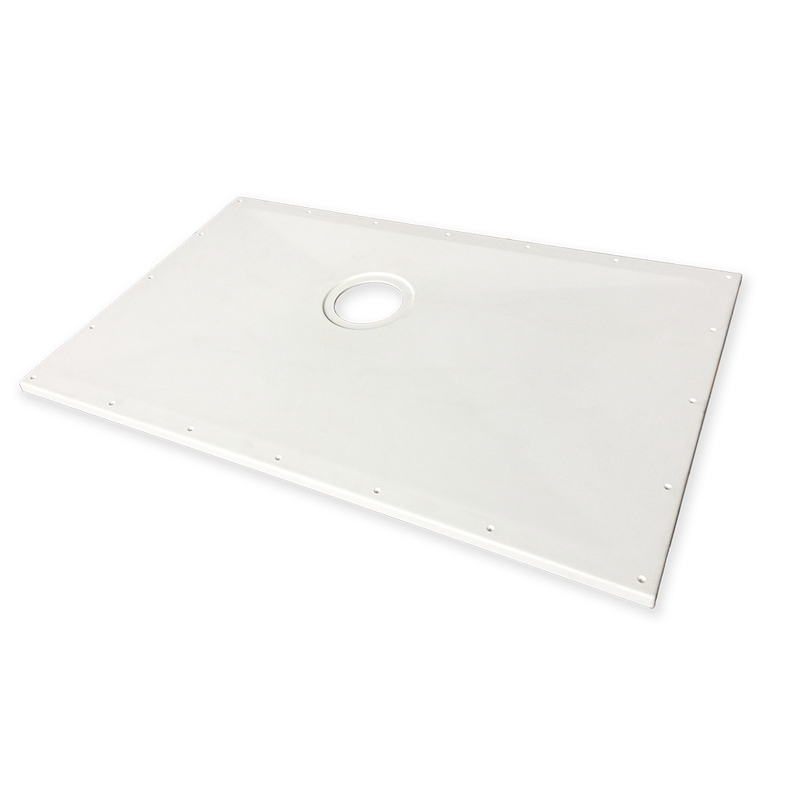

- Excellent drainage: four gradient planes with an approx. 2–2.5° fall to the waste, so water never pools in the showering area.
- Offset waste position: helps avoid joists and pipework; the former is non-handed and can be rotated to suit your room.
- 40mm flat perimeter: a level border around the former for shower screen placement and water retention.
- Vinyl or tiled finishes: textured top surface gives excellent vinyl adhesion; can also be tiled when used with a tanking kit.

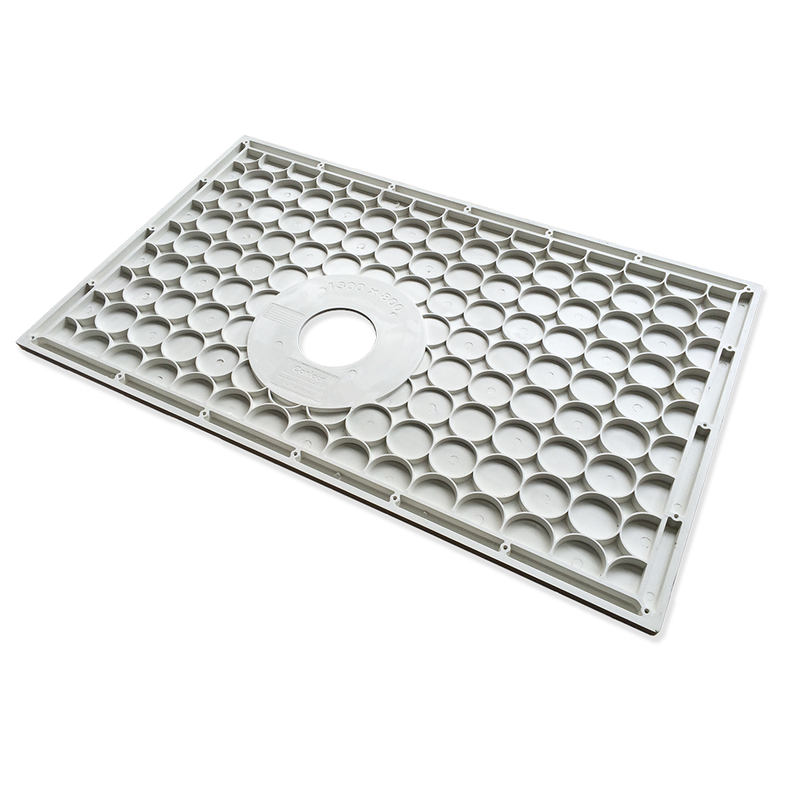

- Timber and screeded floors: 24mm thickness installs flush with standard floorboards; circular ribbed underside keys into concrete or screed and eliminates slippage; no raised collar under the waste for easy timber installs.
- Easy installation: pre-formed semi-drilled fixing points, no noggins needed thanks to extra reinforcement around the waste hole, and cut-to-size with a circular saw or jigsaw.
- Lifetime warranty. UKCA & CE approved.
Available Sizes, Product Codes & Barcodes:
| Size | AKW Product Code | EAN / Barcode |
|---|---|---|
| 900x900mm | SD900x900 | 5060424974085 |
| 1000x1000mm | SD1000x1000 | 5060424974092 |
| 1200x750mm | SD1200x750 | 5060424977932 |
| 1200x900mm | SD1200x900 | 5060424977116 |
| 1200x1200mm | SD1200x1200 | 5060424974115 |
| 1300x800mm | SD1300x800 | 5060424974122 |
| 1400x900mm | SD1400x900 | 5060424974139 |
| 1500x820mm | SD1500x820 | 5060424974146 |
| 1500x1000mm | SD1500x1000 | 5060424974153 |
| 1500x1200mm | SD1500x1200 | 5060424974160 |
| 1800x820mm | SD1800x820 | 5060424974177 |
| 1800x900mm | SD1800x900 | 5060424974184 |
Technical Downloads
Complete the Wet Room
Need up to 25 waste positions instead of an offset waste? See the AKW Tuff Form8 (All Sizes) — or read our Tuff Form8 buyer's guide. Prefer a designer linear waste? The AKW TriForm drains up to 78 litres per minute. Then add a screen:
- AKW standard (PET) wet floor screens — practical, half-height and carer-friendly.
- AKW Silverdale wet floor screens — premium toughened glass.
New to wet rooms? Read our complete guide to AKW wet floor shower screens.
