JT Fusion Rectangle Shower Tray 45mm – Standard Gloss White (Non Anti-Slip) with 90mm Waste – All Sizes

The JT Fusion rectangular shower tray from Just Trays, supplied by Kartell UK, is a 45mm low-profile stone resin tray with a gloss white ABS-capped acrylic surface. Every tray is double-skinned for strength and rigidity, installs flat to the floor or raised on a JT Fusion riser kit, and comes with a 90mm high-flow waste in the box. This listing is the standard gloss-surface tray – it is not anti-slip. If you need a slip-resistant surface, choose the JT Fusion Anti-Slip rectangle tray instead, which carries the same sizes with an independently tested anti-slip finish. Choose your size from the dropdown, then choose a flat-top tray or a version with integrated tiling upstands for a watertight finish against tiled walls.

• 45mm profile for a low step-in height
• ABS-capped acrylic stone resin, double-skinned
• Gloss white finish, easy to keep clean
• 90mm waste included
• Fits flat to floor or on legs with a JT Fusion riser kit (sold separately)
• Flat top, 3 tiling upstands (left or right hand) or 4 tiling upstands, depending on size
• 25-year manufacturer guarantee

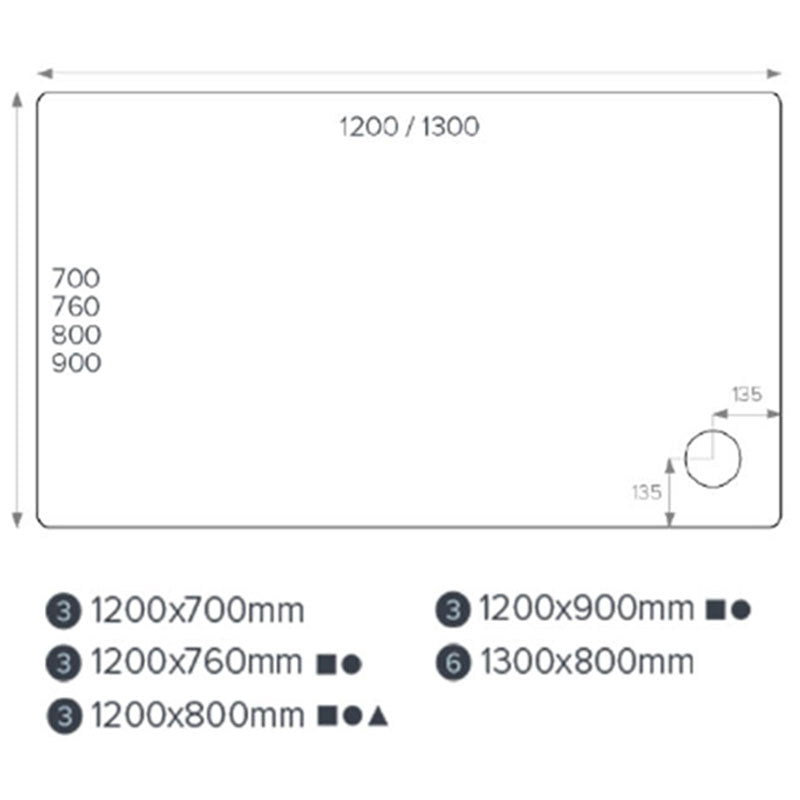

Which one do I need? Choose Flat top if the tray sits inside an enclosure or the walls are already tiled and sealed. Choose an upstand tray on a new installation where the walls will be tiled after the tray goes in – the upstands sit behind the tiles so water cannot track behind the tray. 4 tiling upstands suits a tray enclosed on all sides; 3 tiling upstands leaves one long side open for the entry or screen, and is made in left hand and right hand mirror-image versions – match the handing to your wall and waste layout using the drawings in the specification sheet before ordering. Not every size is made in every upstand configuration; the dropdown only offers the combinations Just Trays produce. The anti-slip version of this tray is a separate listing – look for "Anti-Slip" in the product title.

Product Details

Complete the JT Fusion Range

• JT Fusion Square & Rectangle Riser Panel Kit 3 (FP1290100) – trays up to 1200mm
• JT Fusion Rectangle Riser Panel Kit 6 (FP1810100) – trays up to 1800 x 1000mm
• JT Fusion Square Shower Tray 45mm – All Sizes

Technical Downloads

• Installation Instructions (PDF)
• Specification Sheet (PDF)
• Datasheet – 1200 x 800mm (PDF)

Product Codes & Barcodes
