AKW Swift Level Access Shower Tray - TRUESEAL2 (All Sizes)
Swift trays take their own dedicated screens. Standard AKW Option E screens will not fit. See the AKW Swift Half Height Shower Screens.

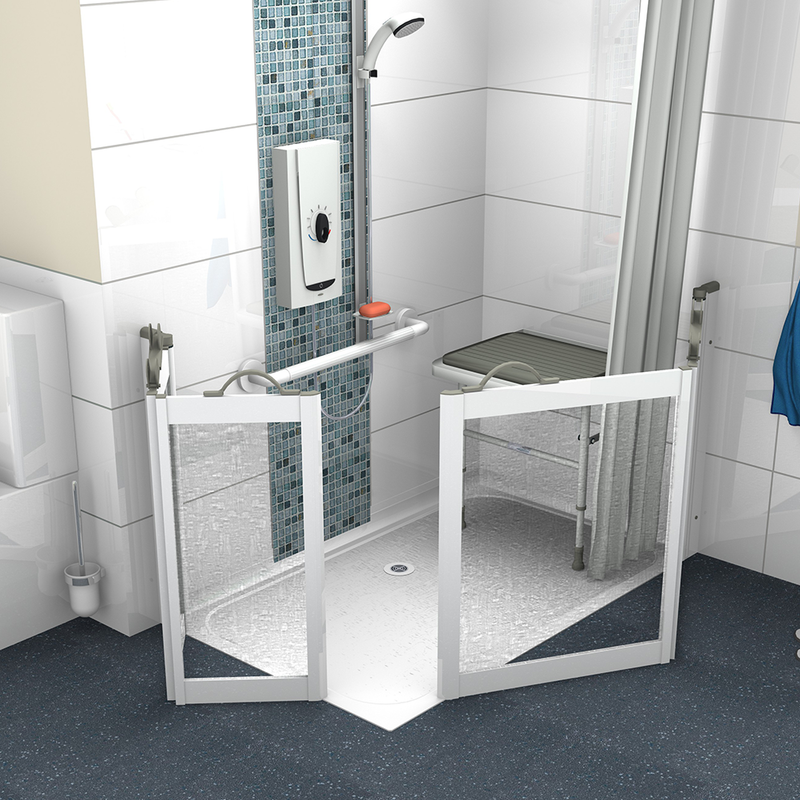

The Swift is AKW's level-access corner-entry tray, built for wheelchair access and for anyone who can no longer step over a bath edge or tray lip. It sits almost flush with the floor, so there is nothing to trip on and nothing to climb over.

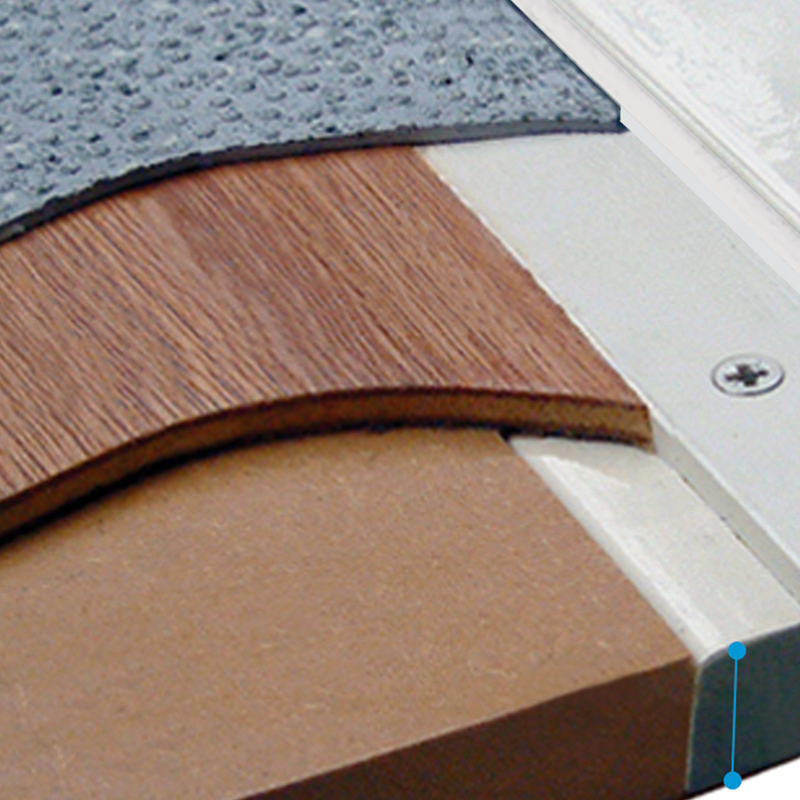

What sets it apart from a standard low-profile tray is the TRUESEAL2 edge profile. Vinyl safety flooring hot seam welds directly onto it, giving a genuinely watertight joint without the intricate corner seam welds a wet room former usually demands. Fitting only needs about 14mm of flooring removed, apart from the trap area.
Why fitters choose it
- Level access with no step, suitable for wheelchair entry
- TRUESEAL2 profile takes a hot seam weld from vinyl sheet flooring
- Goes into timber or solid floors with minimal extra support underneath
- Tray, screen and seating can all go in on one visit, with flooring after
- 14mm tiling lip accepts wallboards or tiles and stays watertight
- Can be used under floor tiles by leaving TRUESEAL2 off
- Slip-resistant surface, reinforced GRP, 270kg (42 stone) limit
- Takes a 50mm waste
Choosing handing
Square trays are non-handed. On rectangular trays, handing is set by which side the longer entry is on as you face the shower. Getting this wrong is the most common ordering mistake, so check it against the room before you order.
Before you specify
AKW advise that power showers should not be specified for use with their shower trays and screens, and that only AKW screens are used with AKW trays — mixing manufacturers can compromise the water seals.
Matching screens
Swift trays take their own dedicated half-height screens rather than the standard Option E range. See the AKW Swift Half Height Shower Screens.
Specification
| Range | AKW Swift |
| Type | Level access corner entry shower tray |
| Material | Reinforced GRP (glass reinforced plastic) |
| Edge profile | TRUESEAL2 |
| Tiling lip | 14mm |
| Weight limit | 270kg / 42 stone |
| Waste | 50mm diameter (not included) |
| Floor types | Timber or solid |
Technical Downloads
These are tray-only codes and do not include a waste. Add a gravity or pumped waste separately. Please check delivery lead times before ordering.
